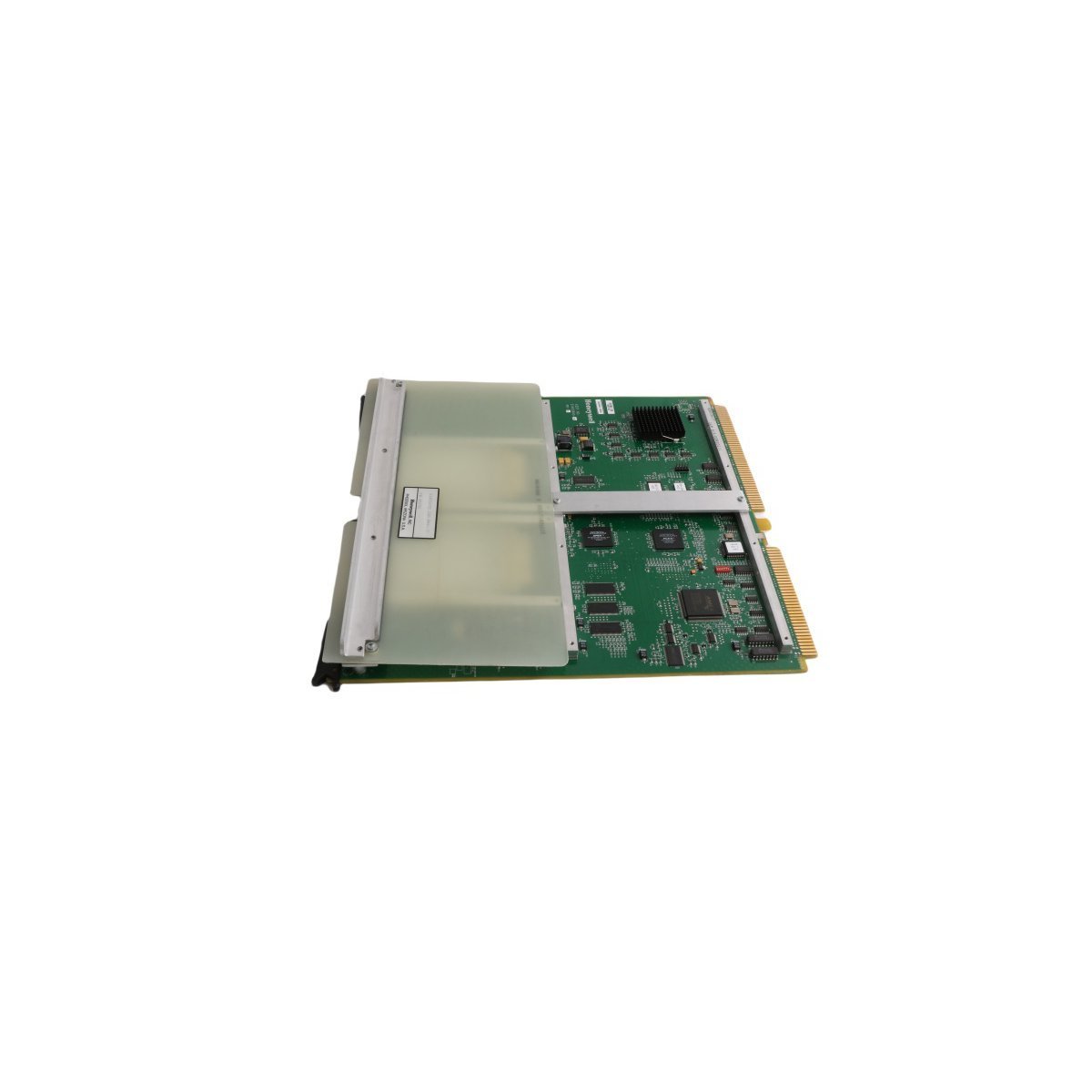

Honeywell 8C-PDODA1 51454472-175 Digital Output Module
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | 8C-PDODA1 51454472-175 |
| Brand | Honeywell |
| Origin | USA |
| Weight | 0.34 kg |
| Dimensions | 6 x 15.2 x 14.3 cm |
| Operating Temp | Industrial standard |
| Power Consumption | System-bus dependent |
| Module Type | Digital Output Module |
Process Control & Signal Characteristics
The 8C-PDODA1 module utilizes high-speed logic circuits to execute command signals for field-level discrete actuators and solenoids. The architecture implements channel-to-channel isolation to prevent the propagation of transient surges between output loops, effectively maintaining electrical integrity across the DCS backplane. Each channel is engineered for deterministic switching latency, ensuring precise synchronization within high-speed control loops. Furthermore, the module supports diagnostic feedback paths that monitor output loop continuity, enabling the detection of open-circuit or short-circuit faults before they impact process safety.Frequently Asked Questions (FAQ)
Q: What are the specific requirements for backplane power distribution when using these modules?A: The module draws power directly from the Series 8 backplane. Users must ensure that the aggregate current draw of all installed modules does not exceed the power supply capacity of the I/O rack to prevent voltage drops.Q: Is this module capable of supporting redundant output configurations?A: Yes, the 8C-PDODA1 supports redundancy. It must be paired with an appropriate redundancy-capable I/O carrier and configured within the Control Builder software to enable seamless failover between primary and secondary modules.Q: Are there restrictions on the types of inductive loads this module can drive directly?A: Users must install external flyback diodes across DC inductive loads to mitigate inductive kickback, which can exceed the module's internal semiconductor ratings and cause hardware failure.Field Installation Guidelines
To begin with, verify that the module keying is aligned with the I/O carrier slot to prevent incorrect module insertion and potential pin damage.
Subsequently, confirm the backplane is de-energized before mounting the module to avoid arc discharge on the connector pins.
In the interim, while the module is being seated, ensure the alignment remains consistent to prevent mechanical stress.
Meanwhile, tighten the captive screws located on the module faceplate to ensure secure grounding of the module chassis to the rack assembly.
Moreover, as a secondary measure for structural integrity, check that the module is fully flush with the carrier assembly.
Furthermore, ensure all field wiring is terminated at the removable terminal block with the correct torque, following the established loop drawings to prevent cross-channel signal mapping errors.
Additionally, once the wiring is secured, double-check the connection points against the wiring schedule for verification.
Finally, perform a cold-start diagnostic check via the engineering station to confirm successful module initialization and communication with the controller.
