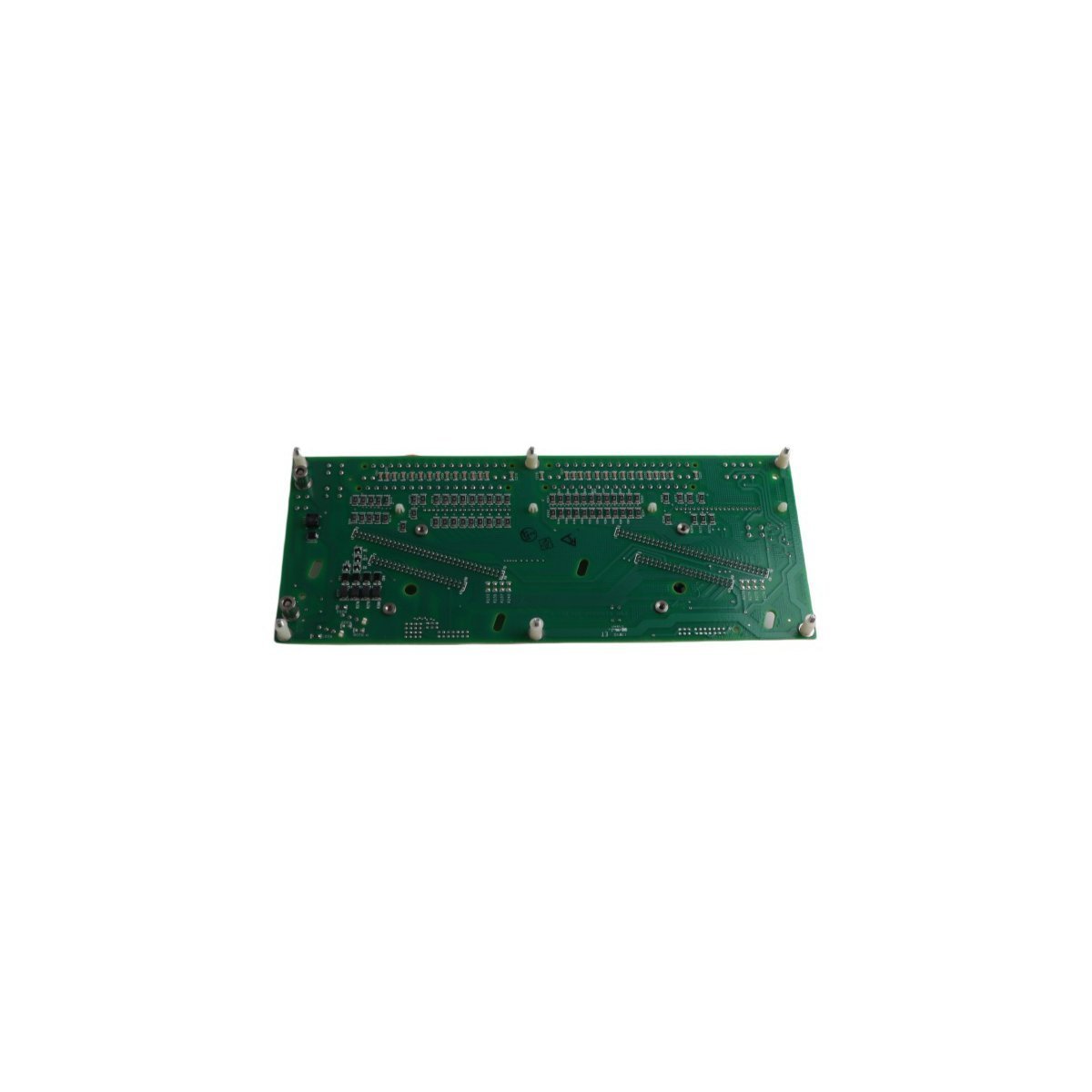

Honeywell 8C-TDIL11 51306858-175 Digital Input Module

The Honeywell 8C-TDIL11 serves as a high-density digital input component for the Series 8 I/O family. This module captures discrete signals from field-mounted devices like pressure switches and auxiliary contacts. It converts these external 24V DC signals into logical data for the Experion PKS controller. Because the module utilizes a compact vertical design, it optimizes cabinet space in dense control rooms. This hardware ensures that the Distributed Control System (DCS) maintains real-time awareness of all field states. Consequently, operators can monitor critical process interlocks without signal latency.

Core Technical Characteristics

The 51306858-175 module integrates advanced galvanic isolation to protect internal system electronics. This barrier prevents external electrical faults from propagating to the main controller. Furthermore, the module features high-speed signal scanning to capture rapid state changes in the field. The Series 8 design specifically promotes efficient heat dissipation during continuous operation. Because it supports “hot-plugging” capability, technicians can replace units without interrupting the power supply. This modularity reduces maintenance time and prevents costly process shutdowns.

Application in Industrial Environments

Engineers deploy the 8C-TDIL11 in facilities requiring high reliability and rapid data acquisition. It manages critical status monitoring in oil refineries and chemical processing plants. Furthermore, power generation facilities utilize this module for tracking breaker positions and alarm contacts. The rugged housing protects the circuitry from vibration and humidity common in industrial racks. Moreover, the module supports sophisticated Sequence of Events (SOE) logging for detailed post-trip analysis. This functionality provides essential data for troubleshooting complex process upsets.
