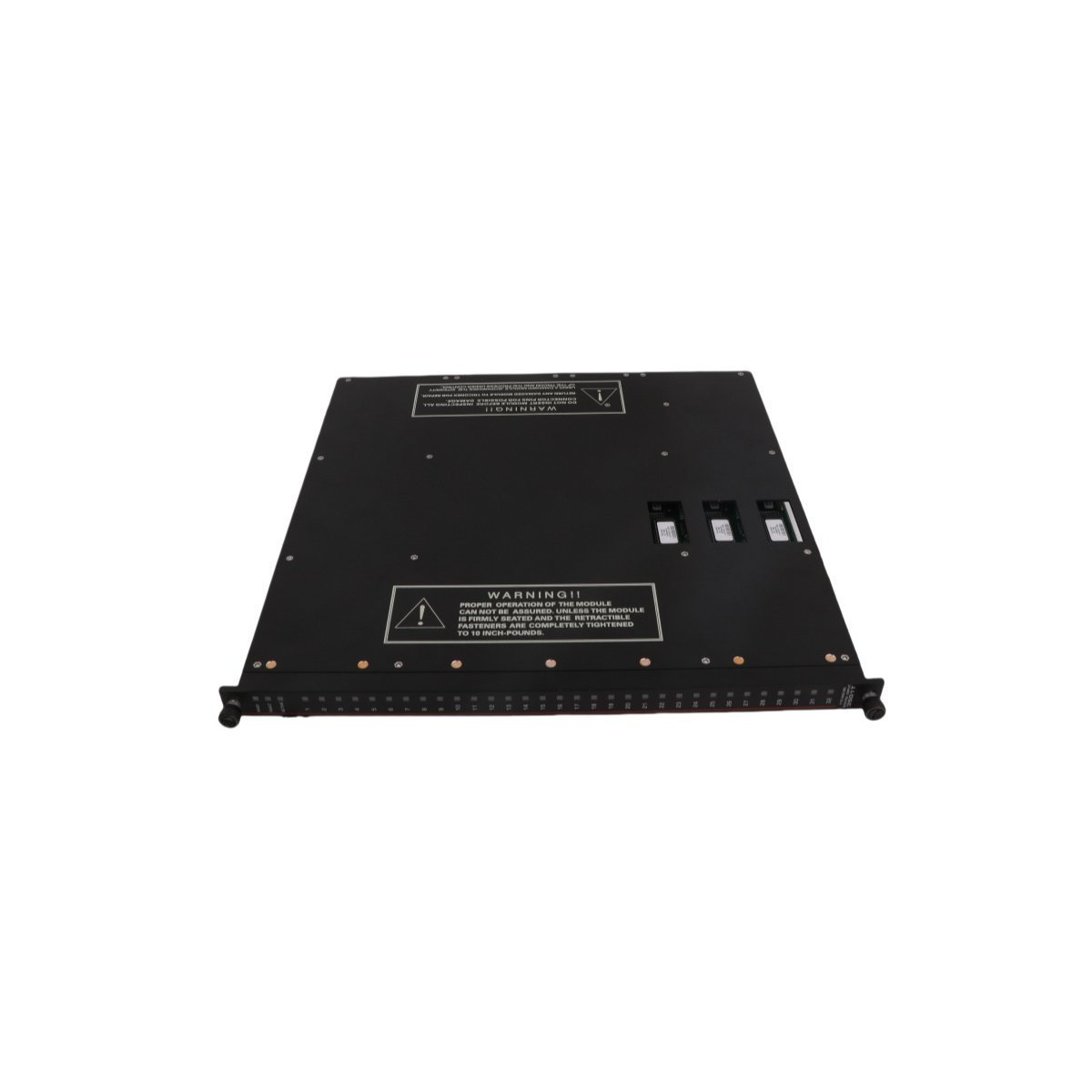

The Triconex 3501T is a 32-point TMR digital input module designed for 115V AC/DC signals. It provides triple-redundant signal processing and integrated diagnostics for Safety Instrumented Systems, ensuring maximum uptime and fault tolerance in critical process control environments.
The Triconex 3501T functions as a high-reliability digital input interface within the Tricon Triple Modular Redundancy (TMR) architecture. This module facilitates the connection between field sensors and the safety controller by processing incoming discrete signals. It utilizes three isolated input paths to ensure continuous operation and fault tolerance. Each channel undergoes comprehensive diagnostic testing to detect potential internal failures or field-side issues. The 3501T effectively eliminates single points of failure, making it a critical component for Safety Instrumented Systems (SIS).
| Feature | Specification Details |
| Manufacturer | Schneider Electric (Triconex) |
| Model Number | 3501T |
| Input Type | TMR Digital Input (Isolated) |
| Voltage Range | 90–155 VAC/VDC |
| Input Points | 32 Channels |
| Current Consumption | 10 mA per point at 115V |
| Operating Temperature | -20°C to 70°C |
| Storage Temperature | -40°C to 85°C |
| Response Time | < 10 ms (On to Off) |
| Self-Test Frequency | Continuous internal diagnostics |
The module converts high-voltage AC or DC field signals into logic-level data for the main processors. It handles 32 discrete points while maintaining electrical isolation between the field circuitry and the system backplane. This isolation protects the controller from surges and ground loops. The TMR design compares data across three independent legs to verify signal integrity before the system executes safety logic. Operators can monitor module health via front-panel LED indicators that display active, fault, and load status.
This hardware excels in high-stakes environments where process interruptions carry significant safety or financial risks. Engineering teams typically deploy the 3501T in Emergency Shutdown (ESD) systems and Fire and Gas (F&G) detection loops. It serves critical roles in offshore oil platforms, chemical processing plants, and power generation facilities. The module’s ability to operate in 115V environments allows it to interface directly with standard industrial actuators and switches without additional interposing hardware.
