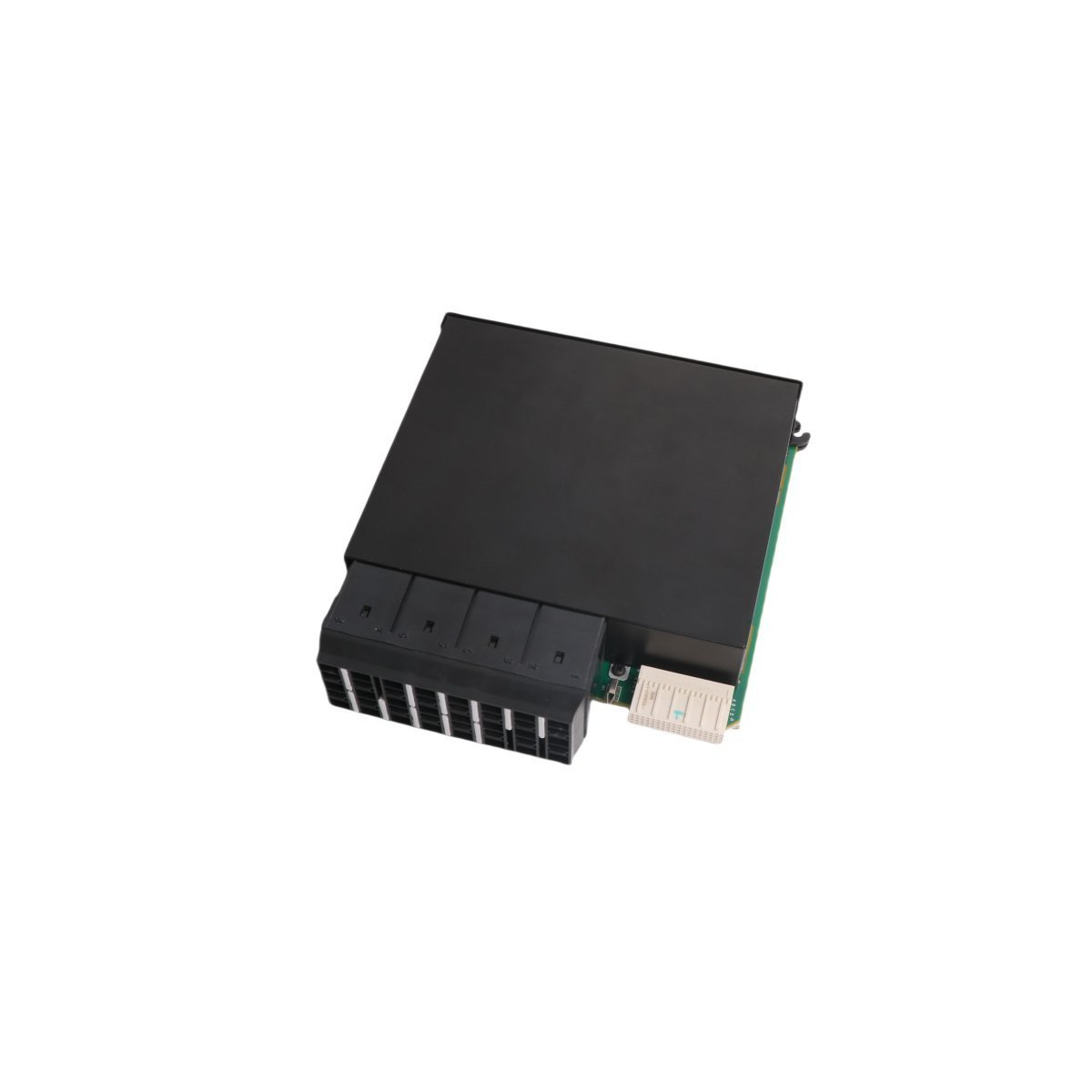

General Electric UR6FH Multilin Digital I/O Module

The GE UR6FH serves as a high-performance expansion component for the Multilin Universal Relay (UR) family. This module facilitates rapid signal processing between the relay logic and external primary equipment. It specifically provides advanced digital interfacing to maintain grid stability and protective coordination. The architecture supports high-speed switching operations through its specialized contact design. Consequently, engineers utilize this module to manage complex protection schemes in substation environments and industrial power plants.

Core Technical Characteristics

Advanced Output Logic and High-Speed Switching

This module features eight “Fast” Form-C relay outputs to minimize operation time. These high-speed contacts significantly reduce the total clearing time during fault conditions. Furthermore, the UR6FH maintains excellent galvanic isolation between the control electronics and field wiring. This isolation protects the central processing unit from electrical transients and surges. The module also supports comprehensive self-diagnostics to ensure the integrity of the contact state at all times.

System Integration and Scalability

The UR6FH hardware fits seamlessly into any compatible UR series chassis. Users can install multiple modules to expand the total digital point count for larger protection zones. The module communicates via the internal high-speed bus to deliver real-time status updates to the relay processor. Additionally, the unit operates efficiently within a wide range of ambient temperatures. This durability ensures consistent performance in unconditioned control rooms and outdoor kiosks.

Primary Industry Applications

• Substation automation and protective relaying
• Power plant control and interlocking
• High-voltage circuit breaker monitoring
• Industrial process protection for large motors and feeders
