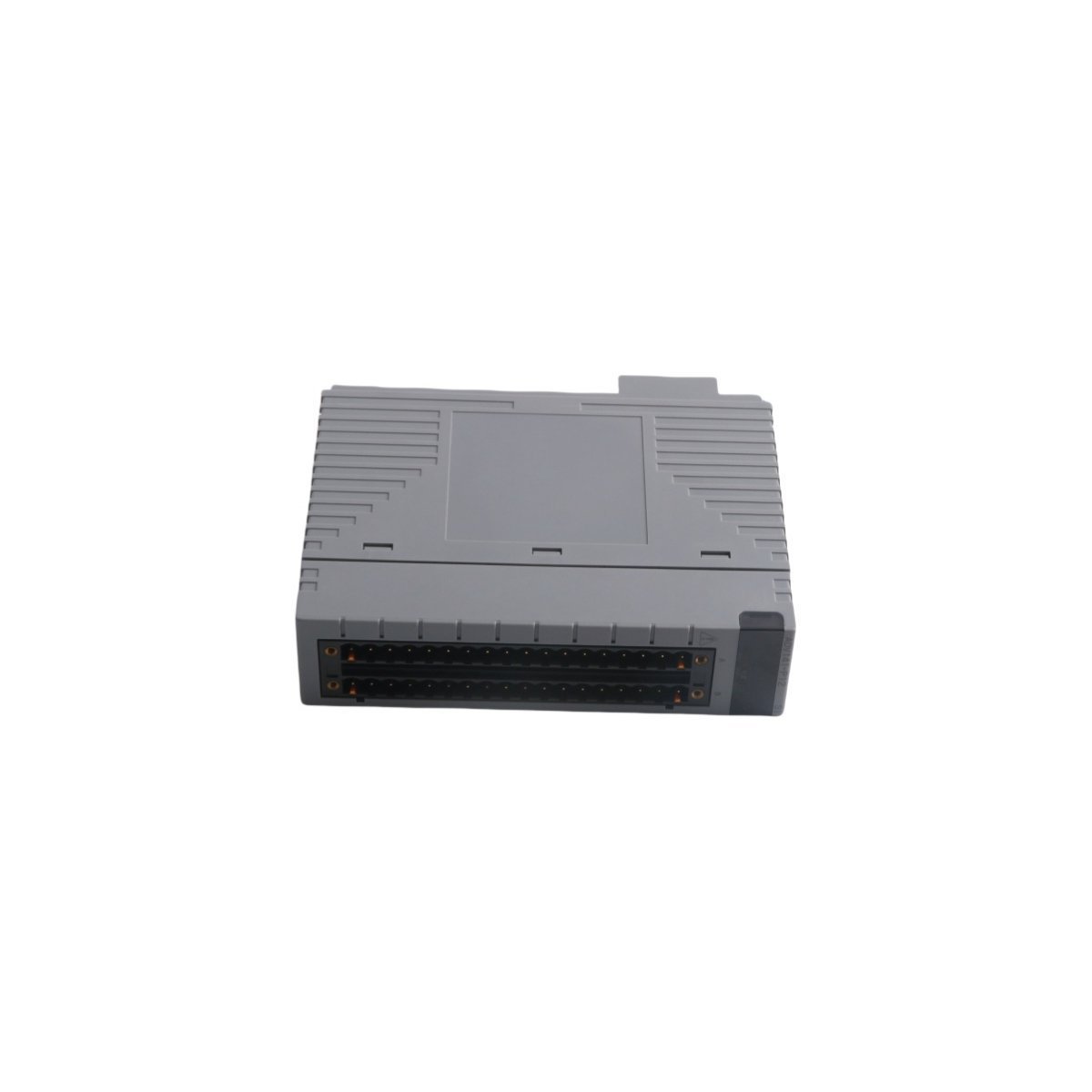

Yokogawa ADV141-P12 S1 Digital Input Module

The Yokogawa ADV141-P12 S1 serves as a high-reliability interface for discrete signal acquisition. This module specifically supports 16 independent input channels for the CENTUM VP system. It effectively bridges field-level switches and sensors with the central processing unit. Because it features optical isolation, the hardware prevents electrical surges from damaging internal circuitry. This isolation ensures stable data collection in electrically noisy plant environments. Consequently, the module increases system safety and reduces the likelihood of logic errors.

Industrial Connectivity and Voltage Flexibility

This digital input unit adapts to various industrial automation requirements with ease. It supports multiple voltage levels to accommodate different field equipment standards. Because of its efficient internal architecture, the module maintains very low power consumption. This efficiency helps lower overall cabinet temperatures during continuous operation. Furthermore, the unit integrates perfectly with the FIO bus for high-speed communication. This seamless connection allows for real-time monitoring of critical machine states and process variables.

Key Technical Specifications

The ADV141-P12 S1 provides robust performance within a compact physical footprint. Its design follows strict industrial quality standards for long-term use.

• Module Function: Digital Input (Contact Input)
• Number of Channels: 16 isolated channels
• Isolation Method: High-speed opto-isolation
• Rated Input Voltage: Supports 100V to 120V AC/DC ranges
• System Architecture: Yokogawa CENTUM VP / FIO
• Module Weight: 0.28 kg
• Standard Dimensions: 3.2 x 10.7 x 13 cm
• Mounting Style: Base plate slot installation
• HS Classification: 8537101190
• Country of Origin: Japan

Environmental Endurance and Diagnostics

Yokogawa builds this module to perform reliably under challenging climate conditions. It operates across a broad temperature range without losing signal accuracy. Additionally, front-panel indicators provide immediate visual feedback for each input status. These diagnostic tools simplify the commissioning process for site engineers. The hot-swap capability allows for module replacement without interrupting the entire control system. By using the ADV141-P12 S1, facilities achieve consistent uptime and streamlined maintenance workflows.
