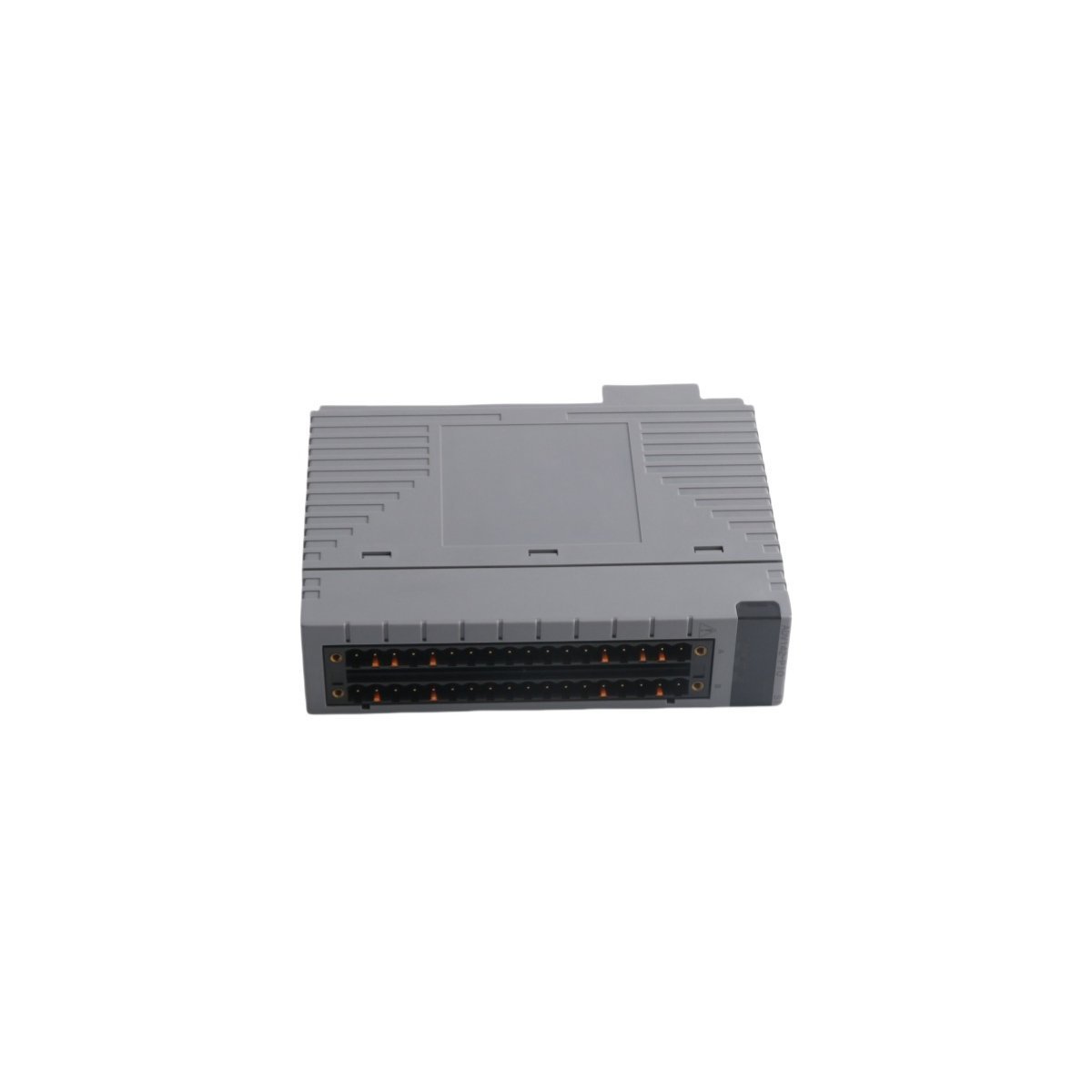

Yokogawa ADV142-P10 S1 Digital Input Module

The Yokogawa ADV142-P10 S1 is a high-performance digital input module for the CENTUM VP control system. This unit captures discrete signals from field devices like switches and limit sensors. It provides 32 isolated input channels to ensure precise data acquisition. The module architecture prioritizes signal integrity within complex distributed control environments. Consequently, it serves as a critical interface for real-time process monitoring and automation logic.

Industrial Applications and Network Integration

This module excels in heavy industrial sectors such as power generation and chemical processing. It monitors status contacts across the plant to maintain operational safety. Because it integrates with the FIO bus, the module communicates seamlessly with system controllers. It supports various field connection methods to simplify the installation of 24V DC discrete inputs. The hardware effectively translates physical switch states into digital data for the DCS processor.

Core Technical Specifications

The ADV142-P10 S1 combines a compact physical footprint with robust electrical protection. It features advanced filtering to eliminate signal noise in high-interference areas.

• Module Type: Digital Input (Contact Input)
• Number of Channels: 32 isolated channels
• Rated Input Voltage: 24V DC
• Input Signal Type: Dry contact or open collector
• DCS Compatibility: Yokogawa CENTUM VP / Integrated Production Control System
• Isolation: Optical isolation between field and system logic
• Weight: 0.26 kg
• Dimensions: 3.2 x 10.7 x 13 cm
• Safety Certifications: CE Mark, UL, and CSA compliant
• Mounting: Supports standard base plate installation

Reliability and Environmental Durability

Yokogawa builds this module to withstand the rigors of continuous factory operation. It functions reliably within a temperature range of -20°C to +70°C. Furthermore, the energy-efficient circuitry reduces the heat load within control cabinets. The hot-swap functionality allows for module replacement without interrupting the active process. This feature significantly lowers maintenance downtime in mission-critical applications. By meeting stringent global standards, the ADV142-P10 S1 ensures long-term stability and system security.
