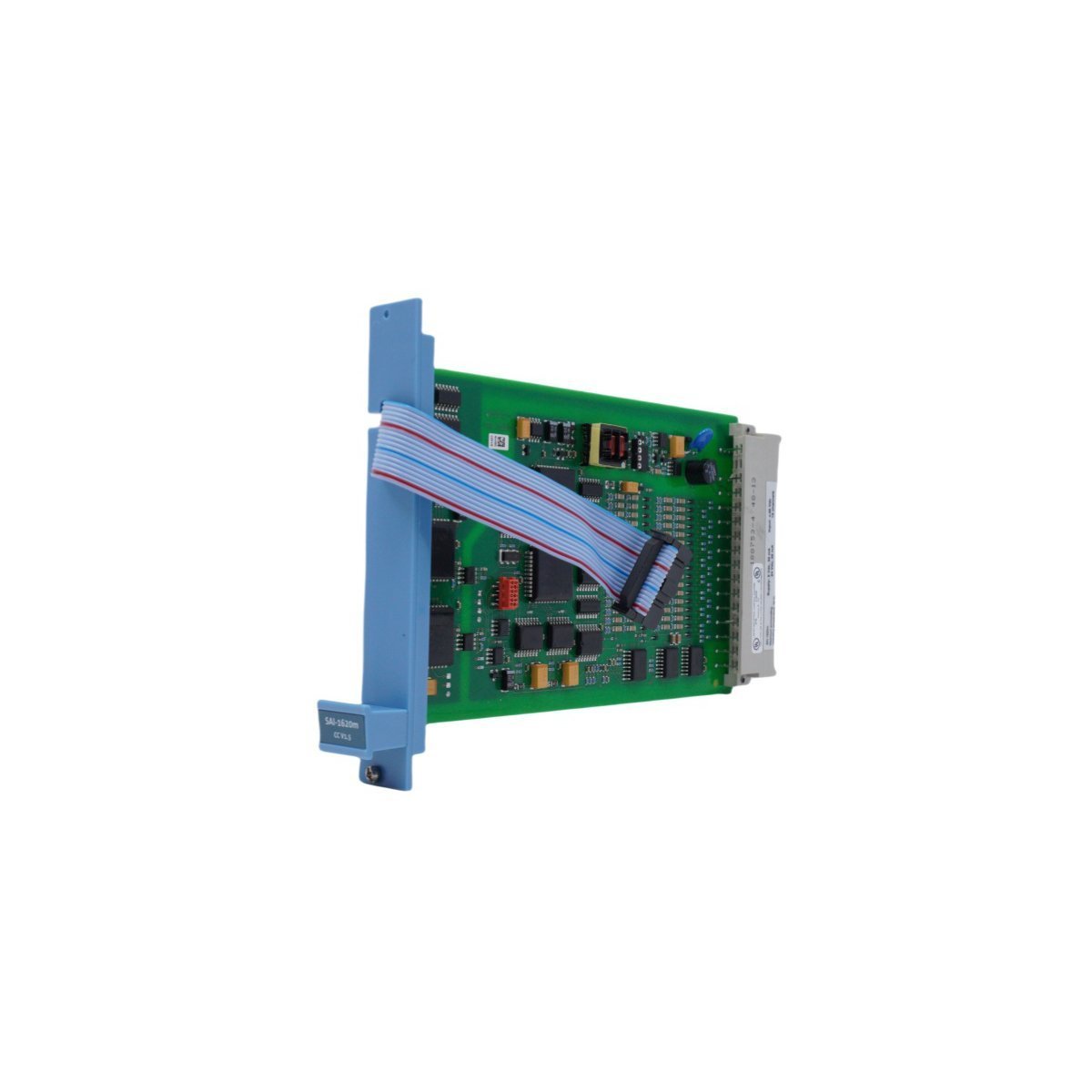

Honeywell FC-SAI-1620M V1.5 Safe Analog Input Module

The Honeywell FC-SAI-1620M V1.5 is a 16-channel Safe Analog Input module for the Safety Manager system. It features ±0.1% accuracy and integrated HART diagnostics, providing SIL-rated reliability for critical safety instrumented functions (SIF).

Request a Quote

Product Overview

The Honeywell FC-SAI-1620M V1.5 is a high-integrity Safe Analog Input (SAI) card designed specifically for the Honeywell Safety Manager system. This module serves as a critical interface within Safety Instrumented Systems (SIS), providing 16 independent channels for precise data acquisition. Because it operates as a frontline logic solver component, it independently monitors essential process variables such as pressure, temperature, and flow. Furthermore, the V1.5 revision introduces enhanced firmware that optimizes signal processing speed and diagnostic depth, ensuring that Safety Instrumented Functions (SIF) are executed with maximum reliability.

Core Technical Characteristics

  • High-Precision Acquisition: The card processes 16 analog input channels with an impressive accuracy of ±0.1%, thereby ensuring that the Safety Manager receives highly reliable data for critical decision-making.
  • Dual-Signal Capability: In addition to standard 4-20mA analog signals, the module supports HART communication protocols. Consequently, operators can access secondary device variables and instrument health data simultaneously.
  • SIL-Rated Safety Diagnostics: To meet SIL2 safety requirements, the module incorporates continuous self-monitoring. This allows the system to detect potential internal failures before they can compromise the safety loop.
  • Space-Efficient Design: Due to its high-density 16-channel configuration, the module allows for comprehensive monitoring within a single rack slot. As a result, users can optimize space within control cabinets.
  • Operational Continuity: The hardware supports hot-swappable replacement. Therefore, maintenance teams can replace modules without shutting down the entire safety system, significantly reducing unplanned downtime.

Industrial Applications and Benefits

  • Emergency Shutdown (ESD): This module is frequently used to monitor pressure and level transmitters that trigger automatic shutdown sequences in hazardous process zones.
  • Fire and Gas (F&G) Systems: Specifically, it handles analog signals from gas detectors and flame sensors to initiate localized fire suppression or alarms.
  • Critical Process Monitoring: Additionally, the module integrates seamlessly with Experion PKS environments to provide high-resolution data for boiler and furnace safety management.
  • Predictive Maintenance: By leveraging the V1.5 channel-level diagnostics, maintenance personnel can quickly pinpoint faulty field wiring or instrument drifts, facilitating a condition-based maintenance strategy.

Technical Specifications

  • Brand: HONEYWELL
  • Model Number: FC-SAI-1620M
  • Version: V1.5
  • Module Type: Safe Analog Input (SAI) Card
  • Channel Count: 16 Channels
  • Signal Range: 4-20 mA (with HART support)
  • System Compatibility: Safety Manager / Experion PKS
  • Weight: 0.14 kg
  • Dimensions: 2.0cm x 19.0cm x 12.8cm
