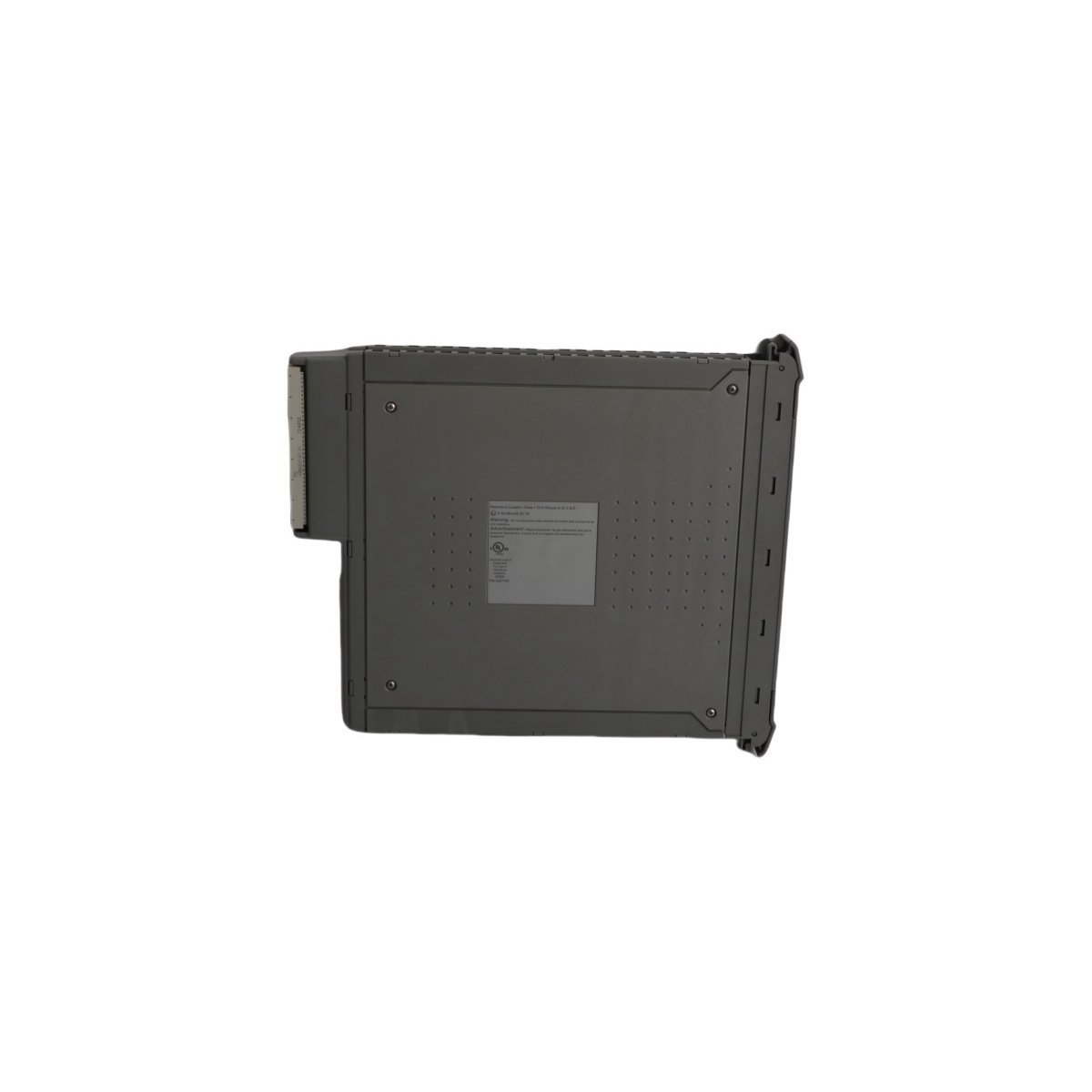

ICS Triplex T8461 Trusted TMR 24/48 Vdc Digital Output Module

The ICS Triplex T8461 is a 40-channel TMR Digital Output Module designed for SIL 3 safety applications. It features hardware voting logic, full channel supervision, and hot-swappable capability to ensure maximum uptime in critical 24/48 Vdc industrial environments.

Product Overview

The ICS Triplex T8461 (Rockwell Automation) functions as a high-integrity Digital Output Module specifically engineered for the Trusted Triple Modular Redundant (TMR) system. This module provides 40 fully supervised, fault-tolerant output channels designed to drive critical field loads such as solenoid valves, relays, and motor starters. By utilizing a voter-based architecture, the T8461 ensures that a single hardware failure does not compromise the safety function or trigger an accidental process trip. Its robust design supports high-availability applications where continuous operation and safety integrity are mandatory.

Technical Specifications

Manufacturer: ICS Triplex / Rockwell Automation
Model Identification: T8461
Module Type: TMR Digital Output (DO)
Output Channels: 40 Channels (Grouped for supervision)
Voltage Range: 20 Vdc to 32 Vdc (Operational) / Supports 24/48 Vdc configurations
Current Rating: 0.5A per channel (Typical)
System Architecture: Triple Modular Redundancy (TMR)
Physical Weight: 1.7 kg
Dimensions: 39.0 cm x 31.0 cm x 9.0 cm
Safety Integrity Level: SIL 3 certified (when used in a Trusted system)

Operational Functionality and Applications

Industrial processes rely on the T8461 to execute critical commands with absolute certainty. The module receives control signals from the Trusted Controller and processes them through three independent sub-modules. A hardware “voting” mechanism then determines the final output state. This process actively eliminates “spurious trips” and ensures that the system remains operational even during internal fault conditions. Because it offers high channel density and advanced diagnostics, operators implement this module in the following areas:

Critical Process Control: Managing safety-related actuators in continuous chemical production.
Emergency Shutdown (ESD): Controlling final elements that require a “de-energize to trip” safety state.
Fire and Gas Systems: Activating suppression systems and audible/visual alarms across large facilities.
Turbine Protection: Managing fuel shut-off valves and auxiliary equipment for power generation units.

Key Technical Characteristics

TMR Voting Logic: The module employs internal hardware voting for every output channel, which provides fault tolerance and maximizes both safety and availability.
Comprehensive Output Supervision: Each channel actively monitors for open-circuit and short-circuit faults in the field wiring, alerting the controller to potential issues before they cause a failure.
Advanced Self-Diagnostics: The T8461 performs continuous background testing of its internal circuitry and output switches to identify latent faults without affecting the process state.
Hot-Swap Capability: Maintenance personnel can replace a faulty module while the system is live, as the redundant architecture maintains the control signal during the swap.
Smart Power Management: The module manages power distribution across its channels to prevent overheating and protects against transient voltage spikes common in industrial power grids.
LED Status Indicators: An array of front-panel LEDs provides immediate visual feedback regarding module health, channel status, and fault locations, which significantly speeds up troubleshooting.
