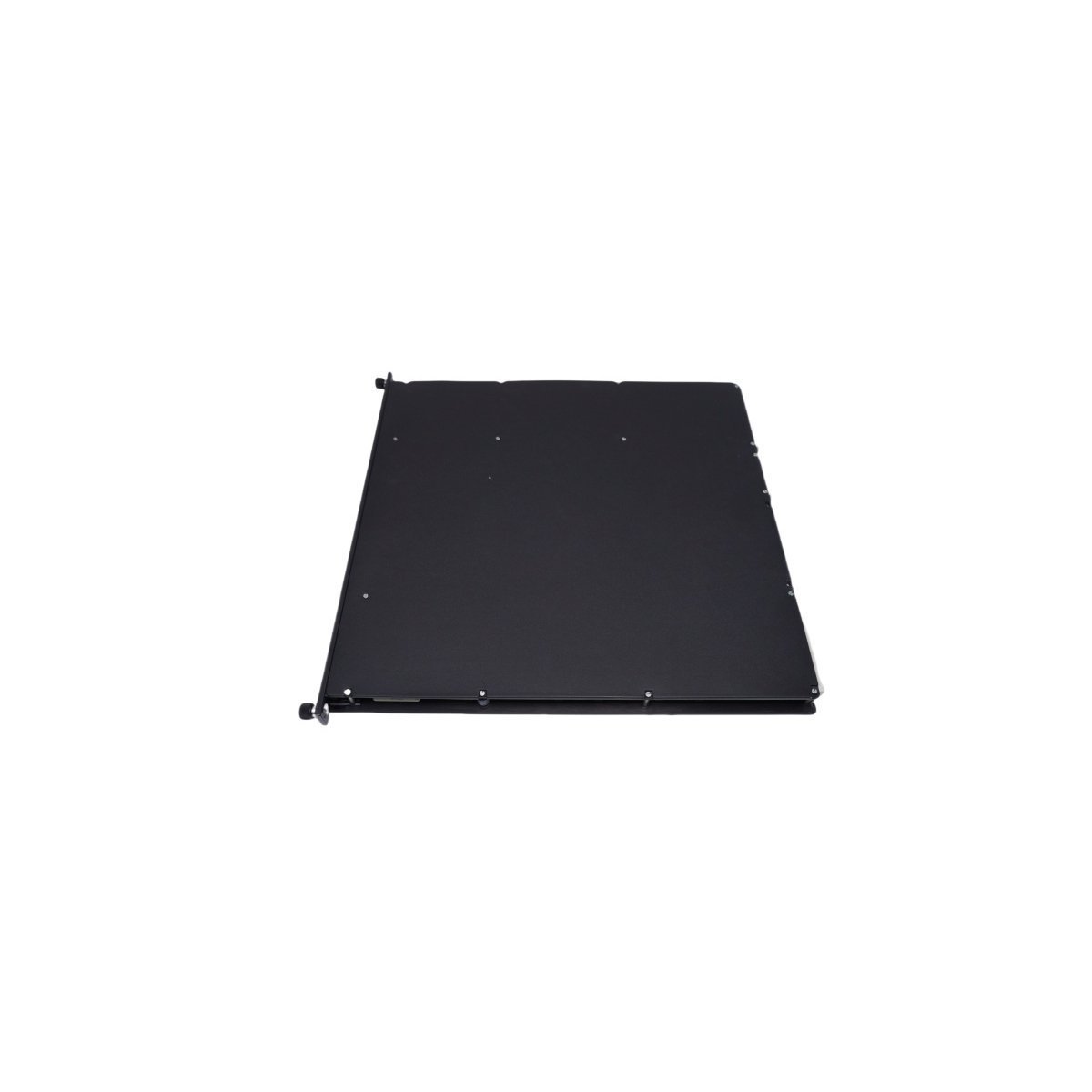

Triconex 3601E Digital Output Module

Product Overview

The Triconex 3601E functions as a high-reliability Digital Output (DO) module designed specifically for the Tricon Triple Modular Redundancy (TMR) system. Furthermore, it serves as a critical interface that executes safety commands by switching 115 VAC loads for field devices. Because this module adheres to the strictest safety protocols, it provides a vital link in Emergency Shutdown (ESD) and Critical Control systems. Engineers frequently deploy the 3601E in high-stakes environments—such as oil refineries and chemical processing plants—where failure-free performance is a mandatory requirement.

Core Functional Capabilities

• Executes Triple Modular Redundant Switching: The module incorporates three independent output channels that perform “Two-Out-Of-Three” (2oo3) voting logic. Consequently, this architecture ensures that a single hardware failure cannot cause a false trip or prevent a legitimate safety shutdown.
• Protects via Optical Isolation: By utilizing advanced opto-isolation technology, the 3601E physically separates the sensitive system logic from the high-voltage 115 VAC field circuits. This barrier effectively shields the main safety controller from electrical noise and high-energy surges.
• Performs Continuous Self-Diagnostics: The module actively monitors each output point for “stuck-on” or “stuck-off” conditions. Moreover, it runs periodic load-test routines to verify circuit integrity, allowing the system to detect and report faults before they compromise plant safety.
• Drives High-Voltage AC Loads: Specifically engineered for 115 VAC applications, the module manages a variety of field actuators, including solenoid valves, motor starters, and alarm beacons. This capability allows it to control high-power industrial equipment directly from the safety rack.
• Enhances System Availability with Hot-Swapping: The 3601E supports full online replacement. As a result, maintenance teams can swap a faulty module without de-energizing the system or interrupting the process, which maintains continuous protection and minimizes operational downtime.

Technical Specifications

• Brand: Triconex (Schneider Electric)
• Model Number: 3601E
• Module Type: Digital Output Module (TMR)
• Output Voltage: 115 VAC (Nominal)
• Output Points: 16 Channels (Opto-Isolated)
• Safety Rating: IEC 61508 SIL 3 Certified
• Net Weight: 2.04 kg
• Dimensions: 2.2 cm x 40.5 cm x 40.0 cm

Industrial Implementation

Safety professionals integrate the Triconex 3601E into high-integrity DCS and SIS architectures to manage critical final control elements. For instance, in power generation facilities, the module often controls fuel-supply isolation valves that require immediate and reliable closure during a trip event. Additionally, its IP67-rated durability and wide temperature tolerance allow it to perform consistently in offshore environments where salt air and moisture are prevalent. By combining the precision of optical isolation with the robustness of TMR voting, the 3601E provides a dependable solution for any facility that prioritizes the protection of personnel and capital assets.
