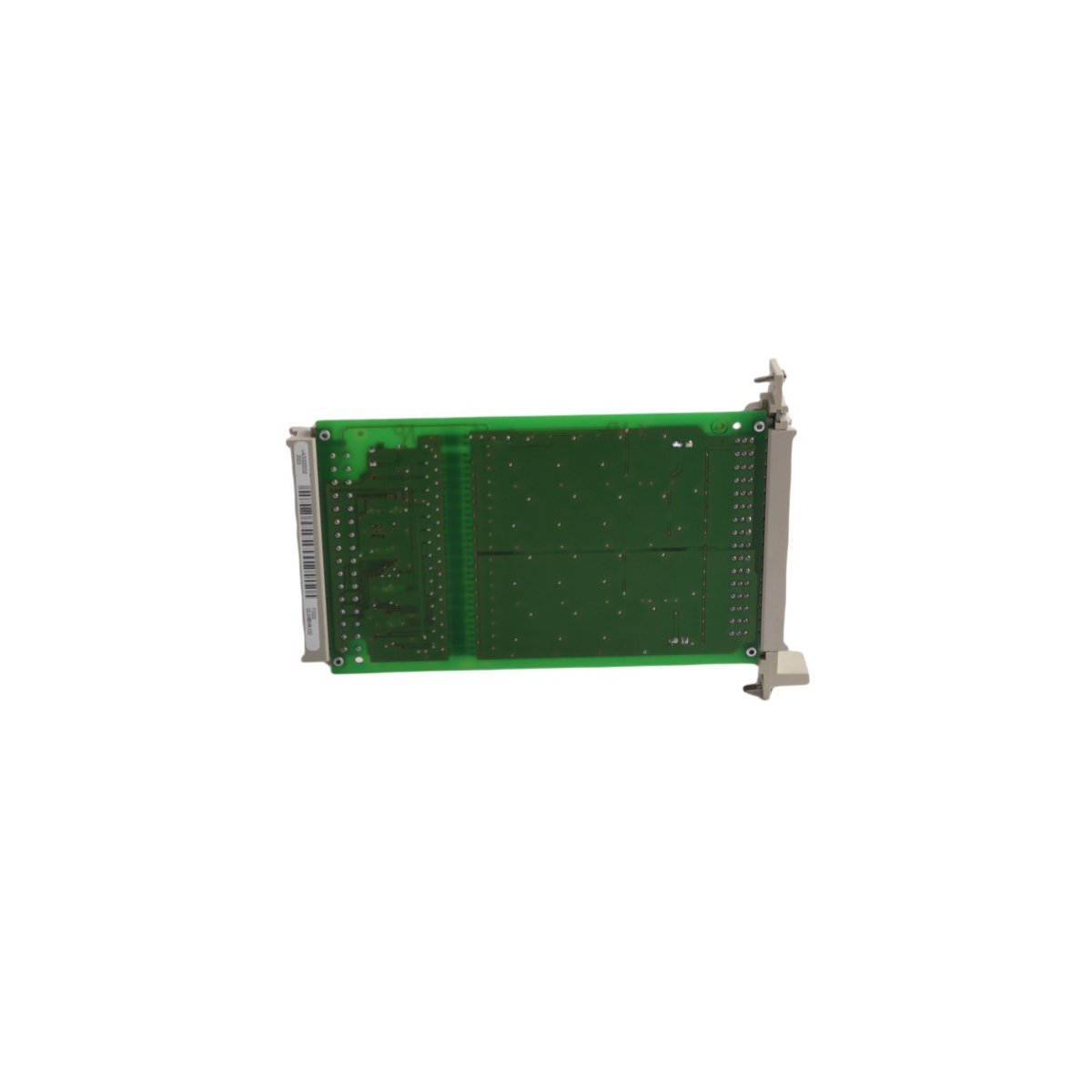

HIMA F3322 16-Channel Safety-Related Digital Output Module

The HIMA F3322 is a high-density 16-channel safety-related digital output module designed for H41q and H51q systems. It offers integrated short-circuit protection and comprehensive diagnostics for reliable control of actuators in SIL-rated environments.

Product Overview

The HIMA F3322 functions as a high-density digital output interface specifically engineered for the H41q and H51q safety-related automation systems. Primarily, this module facilitates the transmission of switching signals from the safety CPU to various field-level actuators. Consequently, it serves as a critical link for controlling solenoid valves, contactors, and visual signaling devices. By utilizing a 16-channel architecture, the F3322 maximizes rack space efficiency while maintaining the rigorous fail-safe performance required for high-integrity industrial processes.

Technical Performance and Functional Features

High-Density Channel Configuration: In addition to its safety-certified design, the module provides sixteen independent digital output channels, which allows for the simultaneous control of a large volume of field equipment.
Integrated Short-Circuit Protection: Furthermore, each output channel features built-in protection mechanisms to prevent damage from external electrical faults. As a result, the module ensures continuous operation even in challenging electrical environments.
Comprehensive Diagnostic Feedback: To ensure maximum reliability, the F3322 performs internal monitoring of the output states. Moreover, it reports any discrepancies or circuit failures back to the central controller for immediate action.
Galvanic Signal Isolation: Regarding system protection, the module incorporates robust galvanic isolation between the internal logic and the field circuits. Thus, it effectively shields the sensitive safety-related CPU from voltage spikes and electromagnetic interference.
Optimized Power Management: To maintain thermal stability, the hardware is designed to operate with low power dissipation across its standard temperature range of -20°C to +60°C.

Operational Compatibility and Integration

System integrators can seamlessly deploy the F3322 into existing HIMA subracks due to its standardized mechanical footprint and backplane interface. In addition to simplified installation, the module supports efficient configuration through HIMA’s proprietary engineering software suite. Moreover, because the F3322 complies with international safety standards such as CE and TUV, it satisfies the strict regulatory demands of the global energy and manufacturing sectors. Ultimately, these features combine to provide a scalable and secure solution for safety-instrumented functions (SIF) requiring multiple digital control points.
