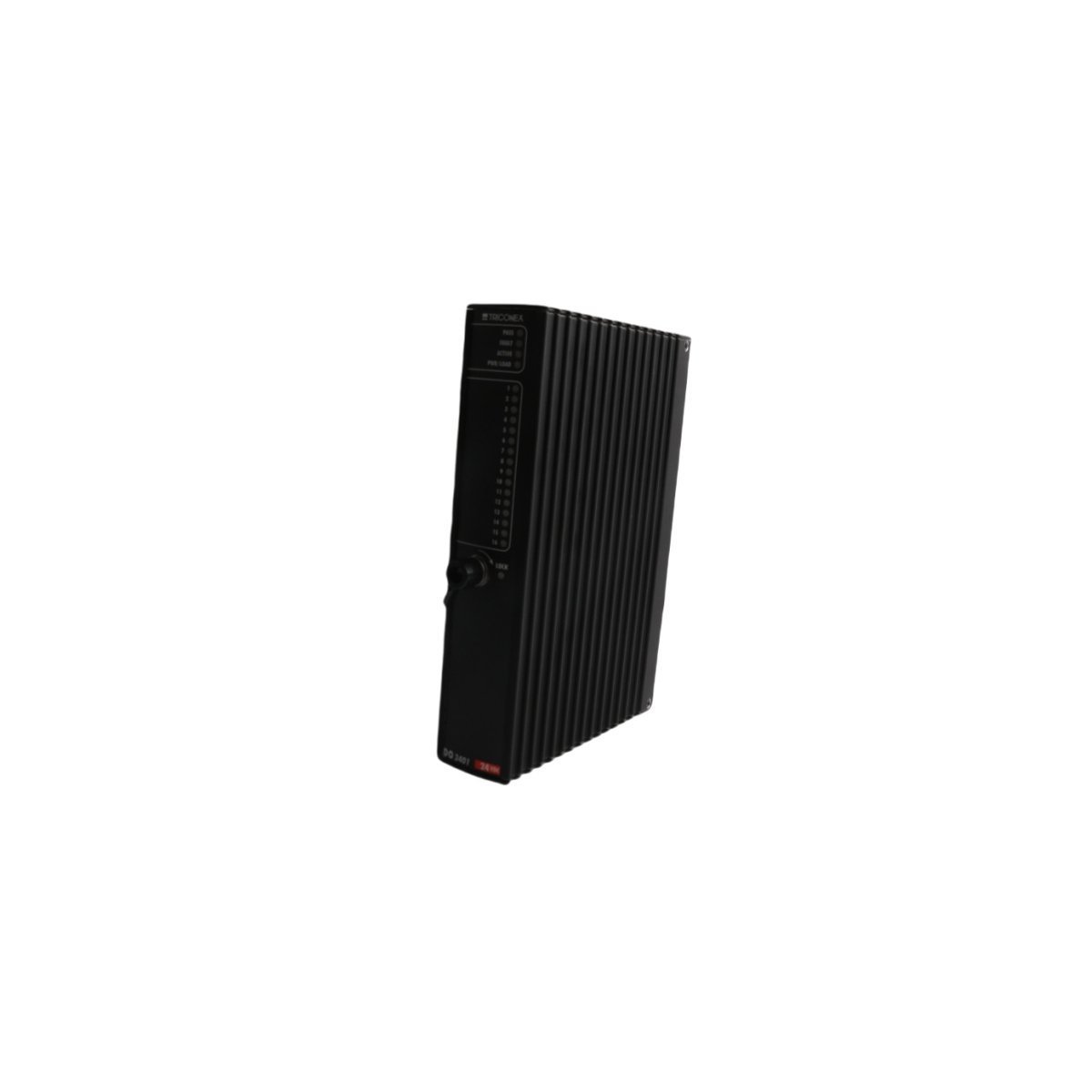

The Triconex DO 3401S2 is a 16-point TMR digital output module designed for SIL 3 safety-critical applications. Featuring independent channel isolation and a fault-tolerant redundant architecture, it provides reliable control for actuators and solenoid valves in the most demanding industrial environments
The Triconex DO 3401S2 is a high-performance digital output module engineered for the Triple Modular Redundant (TMR) architecture. This module integrates three completely independent processing branches (Channels A, B, and C) to ensure that no single hardware failure can lead to a loss of safety function or an accidental process trip. By utilizing this redundant design, the module manages critical final control elements—such as solenoid valves and actuators—with the highest level of availability and fault tolerance.
A key technical advantage of the DO 3401S2 is its implementation of 16 independently isolated output channels. Each channel features total electrical separation, which effectively prevents a fault in one field circuit from propagating to adjacent channels or the internal system backplane. Furthermore, the module employs a hardware-based voting mechanism. This physical voter compares the output commands from the three main processors and determines the final state of the output, ensuring that the command sent to the field is always the result of a validated consensus.
Designed for use in Safety Instrumented Systems (SIS), the DO 3401S2 carries a SIL 3 (Safety Integrity Level 3) certification from TUV. This certification confirms its suitability for the most hazardous industrial processes where failure is not an option. Because it is built to endure the harsh conditions of oil refineries and power plants, the module features ruggedized circuitry that maintains peak performance despite electrical noise or temperature fluctuations.
