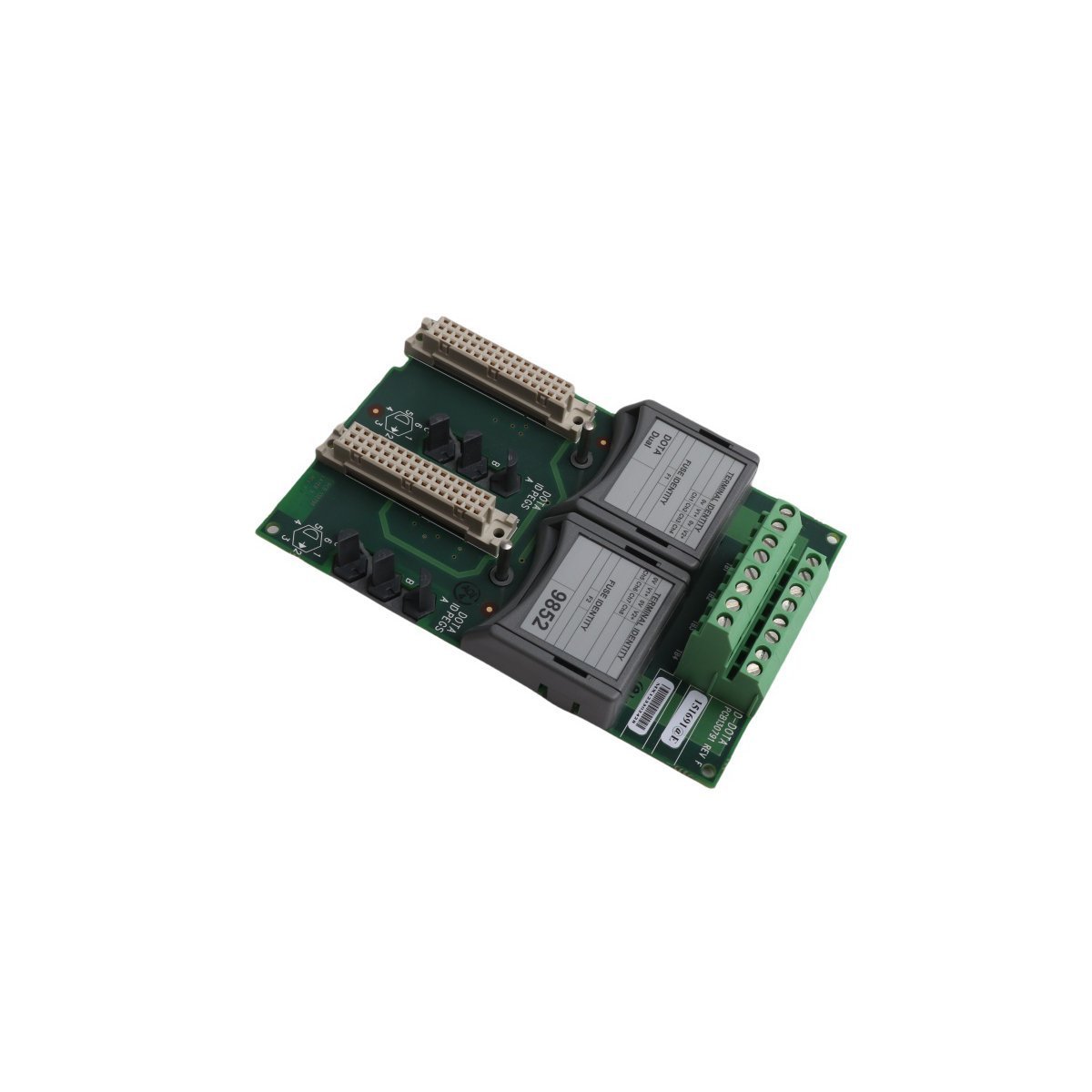

The ICS Triplex T9852 is an 8-channel digital output module designed for the AADvance safety system. Featuring SIL 3-rated TMR architecture and integrated line monitoring, this 24 VDC module delivers high-integrity control for emergency shutdown valves and critical industrial actuators.
The ICS Triplex T9852 functions as a high-integrity, safety-related Digital Output Module within the AADvance controller platform. This module serves as the critical execution interface, converting logic commands from the processor into high-power electrical signals to drive field actuators. Because the AADvance system prioritizes flexible safety architectures, the T9852 supports configurations ranging from simplex to Triple Modular Redundant (TMR). Consequently, it delivers the precise control necessary for systems requiring up to SIL 3 safety integrity. By utilizing advanced microprocessor-driven diagnostics, the module ensures that every output command is executed accurately and safely.
The T9852 manages 8 independent digital output channels, each designed to provide a robust 24 VDC signal to industrial loads. To ensure maximum reliability, the module incorporates an internal “voting” mechanism that cross-checks command data between redundant processors before energizing any field device. Furthermore, the unit features sophisticated line monitoring capabilities. This allows the controller to detect field-side faults, such as open circuits or short circuits, even when the output is in the “off” state. Moreover, since the module utilizes solid-state switching components, it offers significantly faster response times and a longer operational lifespan than traditional relay-based outputs.
To further safeguard the process, the T9852 employs comprehensive self-test routines that verify the integrity of the switching transistors and the internal power rails. In addition to its high-speed execution, the module features a compact, modular design that allows for “hot-swap” replacement. This capability enables maintenance teams to replace a faulty module without de-energizing the safety system or causing a process trip. Consequently, the T9852 maximizes plant availability by maintaining the safety loop even during hardware maintenance. As a result, the module provides a resilient solution for managing critical actuators in high-pressure industrial environments.
