Schneider Electric MC-4/11/10/400 PacDrive Digital Servo Drive
Sale!
SKU: MC-4/11/10/400 HW: E0P603 SW:00.22.03

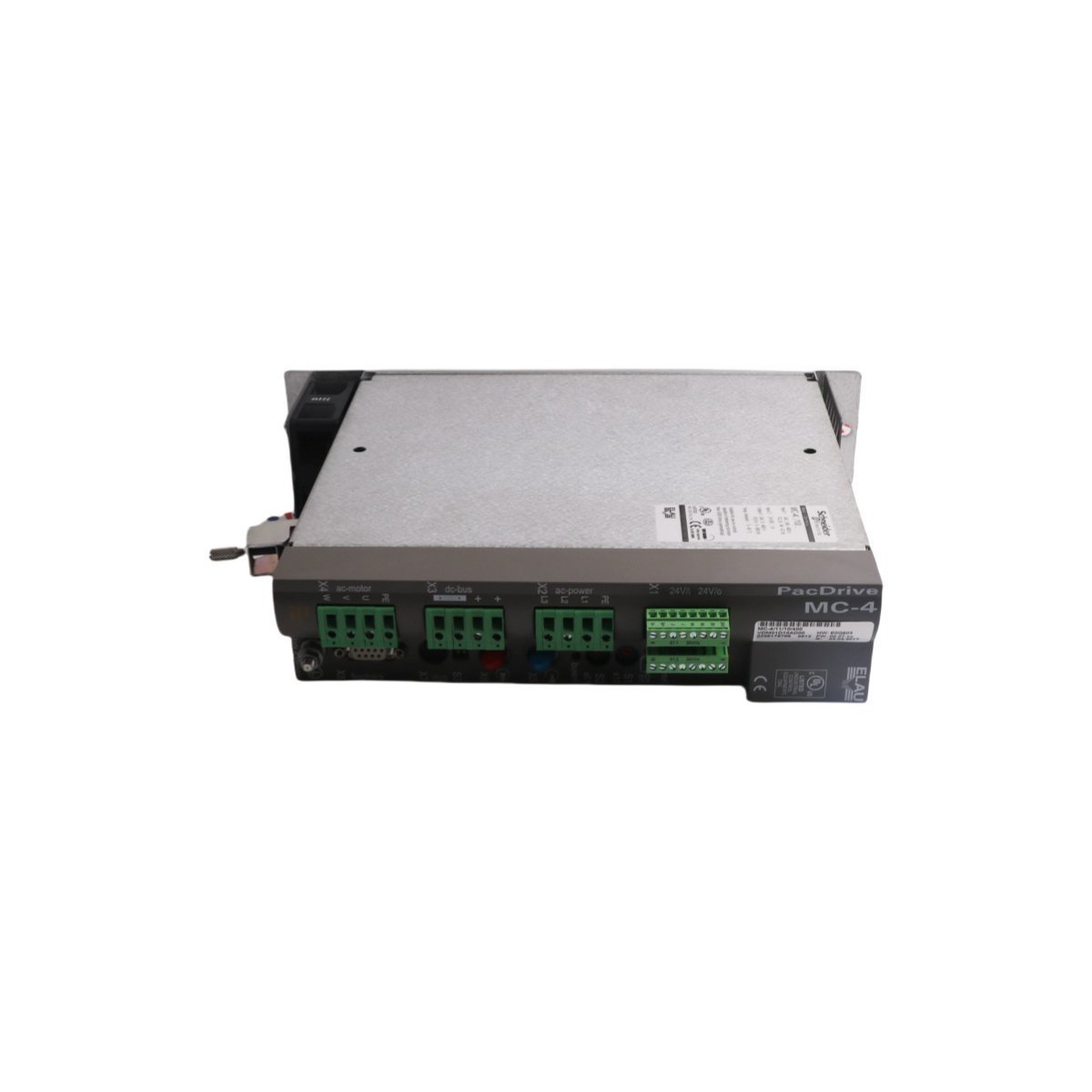

Schneider Electric MC-4/11/10/400 PacDrive Digital Servo Drive
The Schneider Electric MC-4/11/10/400 is an AC PacDrive digital servo drive featuring HW:E0P603 and SW:00.22.03. It delivers high-speed motion control through a fiber-optic SERCOS interface and supports a 250% overload capacity. This compact, French-made unit offers automatic motor recognition and integrated safety features for professional packaging automation.
The Schneider Electric MC-4/11/10/400 serves as a high-performance digital servo drive within the PacDrive M automation system. This unit, featuring hardware version E0P603 and firmware SW:00.22.03, manages complex motion control tasks with high precision. By integrating the power supply and inverter into a single compact housing, the MC-4 simplifies cabinet layout and reduces wiring complexity. It handles power capacities up to 69 kVA and provides the essential torque and speed control required for high-speed packaging and production machinery.
Core Functional Capabilities
Orchestrates Motion via SERCOS: The drive utilizes a fiber-optic SERCOS interface (4 MBaud) to communicate with the motion controller. This optical link eliminates electromagnetic interference and ensures perfect synchronization across multiple axes.
Drives High Overload Performance: The MC-4 supports an peak overload capacity of up to 250%. This enables the drive to handle sudden dynamic loads and rapid acceleration phases without compromising system stability.
Automates Motor Identification: Through the electronic motor nameplate and automatic motor recognition, the drive configures itself instantly upon connection. This feature reduces commissioning time and prevents parameter errors.
Implements Safety Protocols: The unit includes an “Inverter Enable” safety input, allowing the system to achieve a safe torque-off (STO) state. Consequently, it protects operators and meets international safety standards for industrial machinery.
Adapts to Global Power Grids: The drive operates across a wide voltage range (from 85V to 264V AC for control voltage and up to 480V for power), which facilitates deployment in various international markets without additional transformers.
Technical Specifications
Brand: Schneider Electric (ELAU)
Model Identifier: MC-4/11/10/400
Hardware Version: E0P603
Firmware Version: 00.22.03
Range of Product: PacDrive M
Unit Weight: 3.54 kg
Dimensions: 6.8 cm x 24.5 cm x 31.0 cm
Communication Interface: SERCOS (Fiber Optic)
Peak Power Capacity: 34.5/69 kVA
Country of Origin: France
Industrial Implementation
Engineers specify the MC-4/11/10/400 for demanding multi-axis applications where synchronization and reliability are paramount. Because the drive features a robust thermal design and advanced diagnostic capabilities via firmware SW:00.22.03, it excels in continuous-duty environments like food processing, pharmaceutical packaging, and material handling. The decentralized installation capability allows designers to place the drives closer to the motors, which minimizes cabling and improves the overall dynamic response of the machine.
