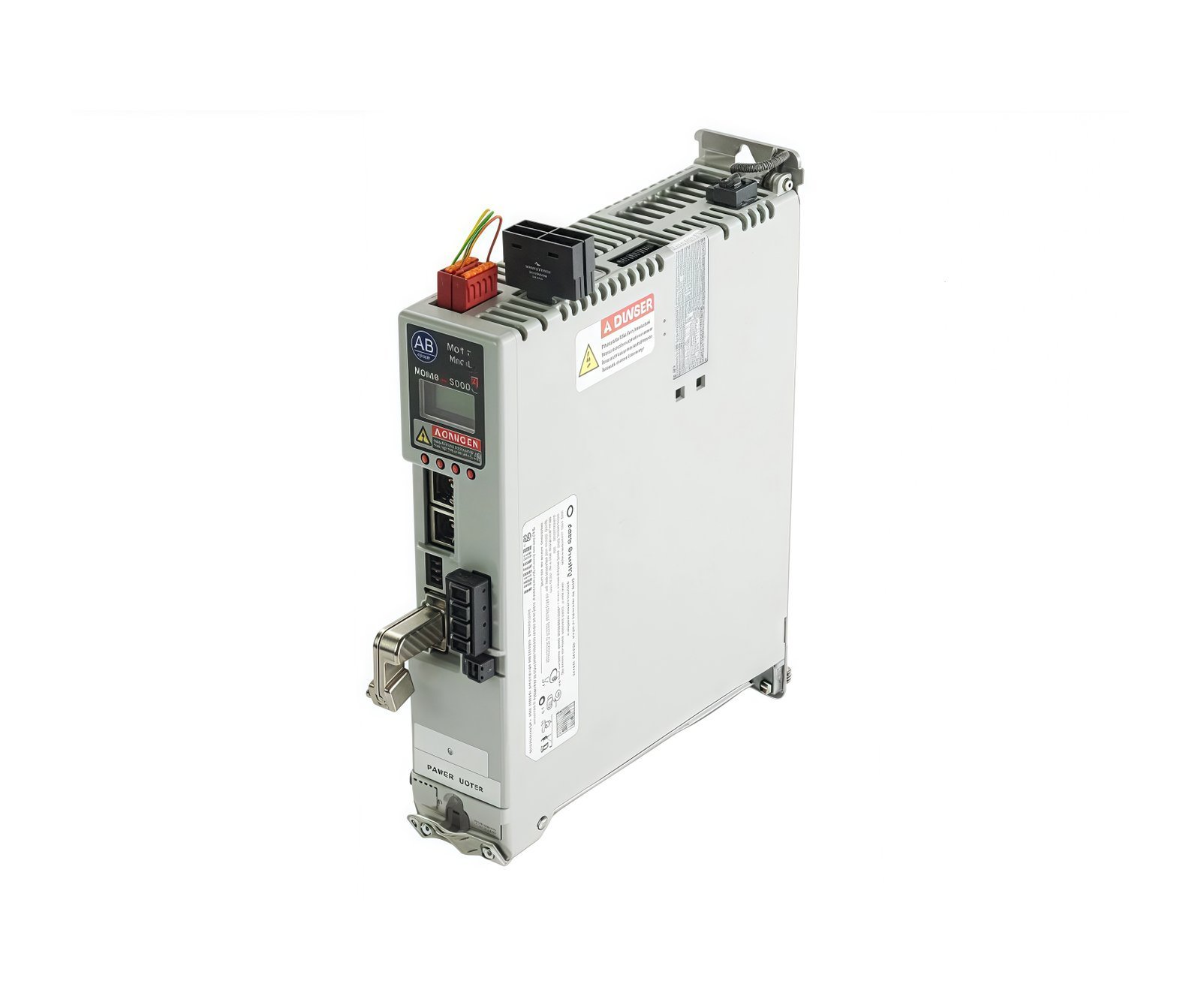

Allen Bradley 2198-H015-ERS Servo Drive

The Allen Bradley 2198-H015-ERS provides high-performance motion control within the Kinetix 5500 ecosystem. This drive series simplifies machine design by supporting integrated motion on EtherNet/IP networks. Furthermore, the unit handles both synchronous servo motors and induction motors with equal precision. Its compact Frame 2 footprint saves valuable space in industrial control cabinets. Consequently, engineers can build smaller, more efficient machine modules without sacrificing torque or speed.

Integrated Safety and High-Speed Precision

This servo drive features hardwired Safe Torque Off functionality for enhanced operator protection. By utilizing a single network for motion and safety, it reduces overall system wiring complexity. The 2198-H015-ERS also employs high-frequency control loops for superior mechanical regulation. Specifically, it operates with a 1000 Hz current loop and a 300 Hz velocity loop. These specifications allow for extremely smooth acceleration and accurate positioning during high-speed cycles.

Key Technical Characteristics

• Flexible Voltage Input: Supports 240V single-phase and 480V three-phase power configurations.
• Superior Current Output: Delivers 5.0 Amps continuous and 12.5 Amps peak RMS current.
• Advanced Networking: Dual Ethernet ports facilitate linear and Device Level Ring topologies.
• Feedback Reliability: Digital feedback ensures real-time accuracy and simplifies motor-to-drive connectivity.
• Energy Management: Features an innovative power bus design to share energy across multiple drives.
• High Fault Rating: Boasts a 200,000 A short-circuit current rating for robust industrial safety.

Technical Specifications

Versatile Applications in Automation

The 2198-H015-ERS excels in precision-heavy sectors such as food packaging and material handling. It effectively manages complex multi-axis synchronization for pick-and-place robots. Additionally, the drive provides reliable torque control for tensioning applications in converting industries. Its seamless integration with Logix-based controllers streamlines the commissioning process. This ensures that maintenance teams can easily diagnose and resolve motion issues through Studio 5000 software.

Compliance and Environmental Standards

Rockwell Automation manufactures this drive to meet strict UL, CE, and IEC 529 standards. The hardware withstands the rigorous demands of 24/7 manufacturing environments. Because the model is currently active, it benefits from ongoing firmware updates and technical support. This ensures your motion system remains compatible with the latest industrial cybersecurity protocols. Investing in the 2198-H015-ERS guarantees a long-term, scalable solution for modern factory floors.
