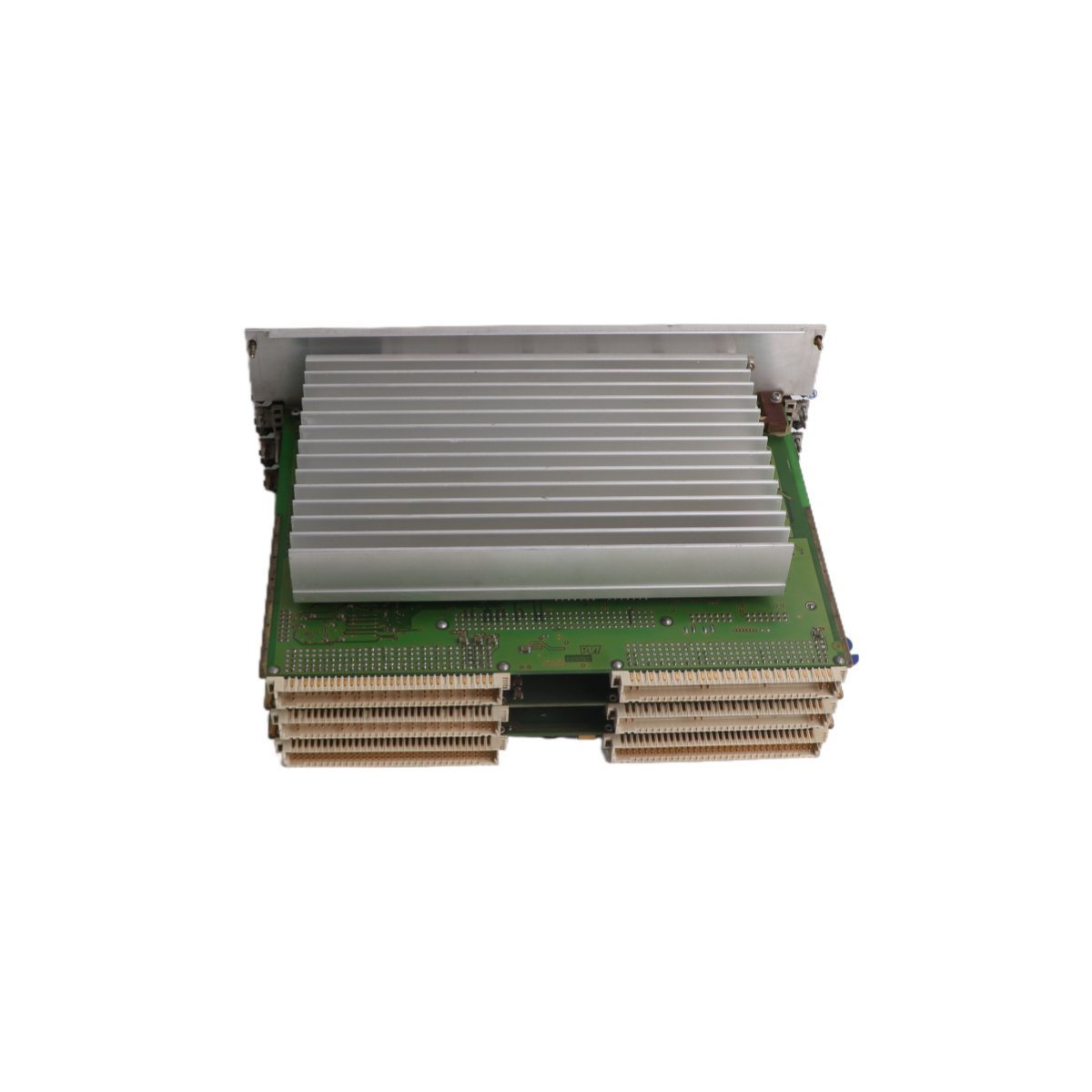

Siemens 6DD7050-0AA50 Measuring Processor Module

Siemens 6DD7050-0AA50 into SIMATIC TDC automation architectures for high-speed signal processing. This unit functions primarily as an Optical Distribution Module (ODM) to manage fiber optic data traffic. The device multiplies TDM-Bus signals to expand network capacity without sacrificing timing precision. Operators connect two input channels to distribute data across eight distinct output ports efficiently. This configuration supports scalable system designs in large-scale industrial plants like steel mills or power stations. The module ensures deterministic data transmission essential for real-time control loops. Its sealed construction protects internal components from dust and harsh environmental conditions. Facilities rely on this hardware to maintain signal integrity over long distances within the rack system. The processor facilitates complex measurement tasks by conditioning raw data before CPU analysis.

Key Specifications

​
