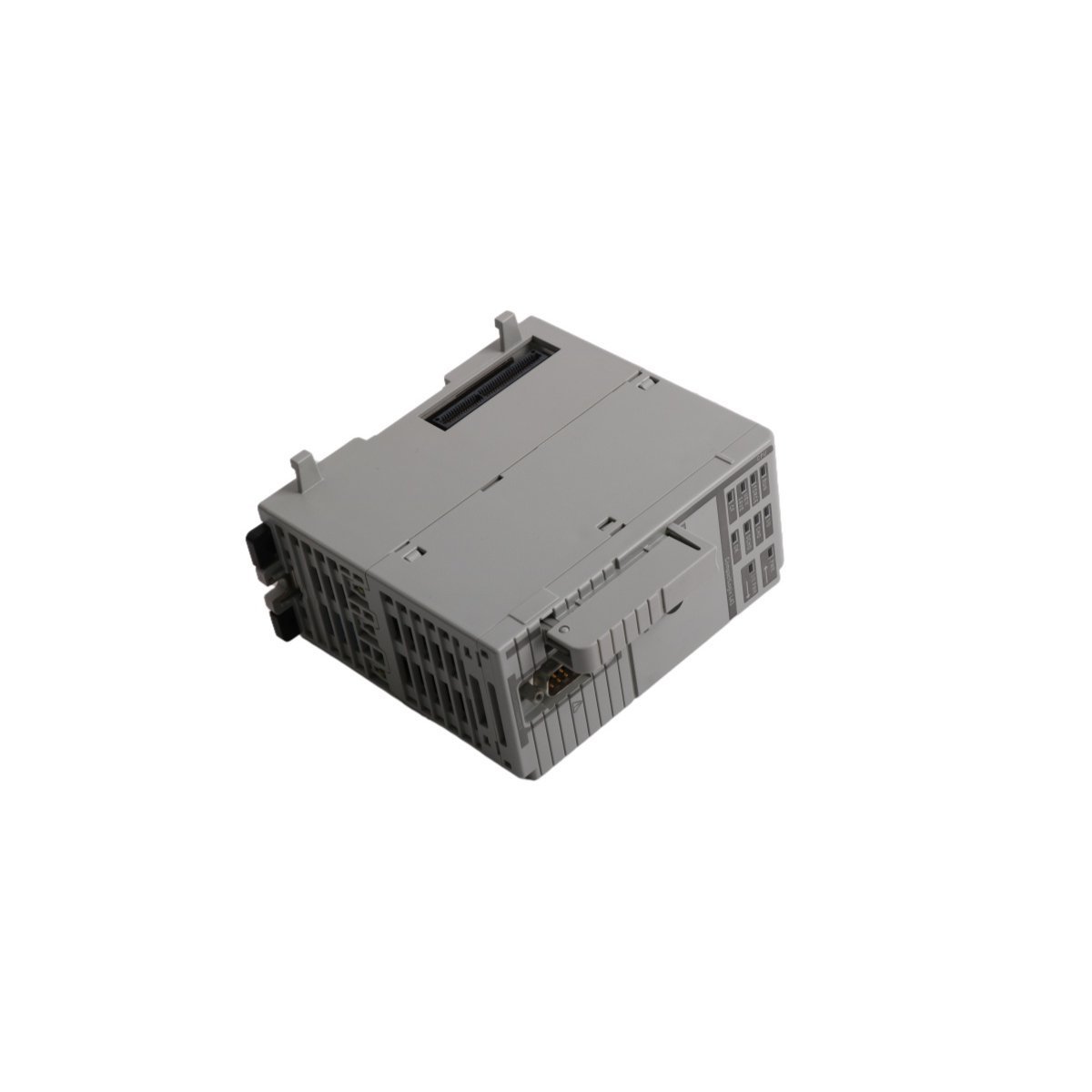

Allen-Bradley 1768-L43 Processor Module

The Allen-Bradley 1768-L43 serves as a high-performance central processing unit for the CompactLogix 1768 system. This controller specifically targets medium-scale industrial applications requiring synchronized motion control. It features 2 megabytes of integrated user memory for complex program execution. Furthermore, the processor manages up to four axes of high-speed integrated motion. This capability makes it ideal for packaging, assembly, and material handling systems. Consequently, users achieve precise machine coordination within a compact hardware footprint.

Expandable Architecture and Connectivity

This module supports a modular local I/O structure to accommodate diverse application needs. It allows the connection of up to 16 local 1769 I/O modules for digital and analog signals. Moreover, the 1768-L43 includes an integrated RS-232 serial port for direct peripheral communication. The controller also features an expansion slot for 1768-series communication modules. These modules enable connectivity via EtherNet/IP or ControlNet for distributed control networks. Thus, the system scales effectively to meet evolving production requirements.

Operational Features and Monitoring

The front panel provides immediate diagnostics through a comprehensive array of status LEDs. These indicators show processor health, battery status, and network activity at a glance. Additionally, a three-position mode switch allows manual selection between Run, Program, and Remote modes. The 1768-L43 maintains high reliability within a broad temperature range from 0 to 60°C. For security, the controller utilizes Logix-based permissions to protect sensitive application code. Moreover, the hardware supports both DIN rail and panel mounting for flexible cabinet installation.

Data Security and Storage

Engineers can utilize optional CompactFlash cards for non-volatile storage and easy program portability. This feature ensures that critical machine data remains safe during long-term power outages. Furthermore, the processor utilizes a battery-backed SRAM to maintain runtime variables. This combination provides a robust foundation for continuous manufacturing processes. The 1768-L43 remains a dependable choice for upgrading legacy systems or building new automated machinery. Its multi-discipline control environment simplifies the engineering process across various industries.

Core Technical Specifications

• User Memory: 2 MB Internal Storage
• Motion Axes: Up to 4 Axes (Integrated)
• Local I/O Capacity: Supports 16 1769-Series Modules
• Communication Port: RS-232 (DF1 or ASCII)
• Power Consumption: 31.3 Watts Maximum
• Backplane Current: 1.3A at 24V DC
• Storage Options: CompactFlash Card Slot (Optional)
• Programming Languages: Ladder Logic, Structured Text, Function Block
