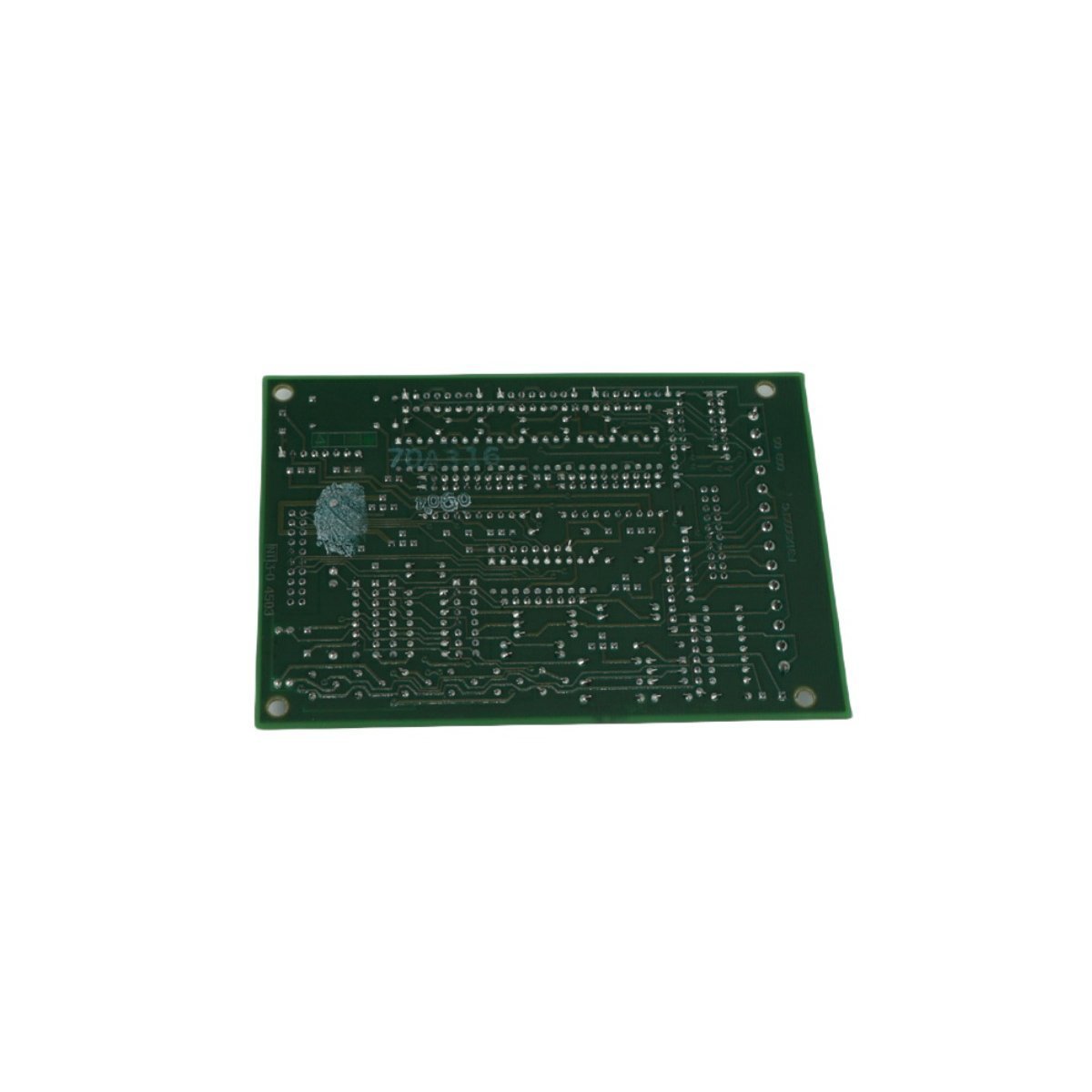

General Electric 531X309SPCAJG1 Digital Signal Processor (DSP) Card 300 Series

Advanced Computational Logic and Core Processing

The General Electric 531X309SPCAJG1 functions as the primary computational engine for the GE 300 Series and Innovation drive platforms. By leveraging high-speed Digital Signal Processing (DSP) technology, the card actively executes the complex, non-linear mathematical algorithms required for real-time motor regulation. Once seated within the control rack, the module coordinates the high-frequency sampling of field feedback; effectively, this allows the system to modulate gate-firing pulses with microsecond precision. Because it utilizes a dedicated DSP architecture, the board offloads intensive arithmetic tasks from the main system processor; consequently, it ensures that the drive maintains absolute stability even under rapidly fluctuating load conditions.

Performance Characteristics and System Safeguards

• Accelerates Control Loop Responsiveness: The card utilizes specialized DSP chips optimized for high-bandwidth floating-point calculations. In doing so, it maintains ultra-low latency within the speed and torque loops; accordingly, this enables the high-performance dynamic response necessary for precision industrial applications.
• Neutralizes Signal Aliasing and EMI: By utilizing integrated digital filtering logic, the 531X309SPCAJG1 actively suppresses electrical noise originating from the inverter section. As a direct consequence, the system guarantees signal integrity in high-interference environments; ultimately, this prevents the erratic motor behavior often caused by signal corruption.
• Streamlines Intra-Rack Data Exchange: The module manages high-speed data exchange via a proprietary local bus interface. Notably, this allows the DSP card to share processed variables with auxiliary communication and I/O modules; along with this, it facilitates a fully synchronized control environment across the entire drive lineup.
• Protects Circuitry Against Thermal Fatigue: Beyond its primary processing role, the board incorporates industrial-grade components designed for superior heat dissipation. Therefore, it safeguards internal logic against thermal degradation; as a result, the hardware ensures consistent uptime in the demanding temperatures of heavy industrial facilities.
• Simplifies Real-Time System Calibration: Finally, the 531X309SPCAJG1 provides accessible hardware test points for monitoring internal DSP states. By providing these diagnostic nodes, the board allows technicians to verify processing health without disrupting the live control loop; in doing so, it significantly reduces the time required for critical field troubleshooting.

Technical Specifications

• Manufacturer: General Electric (GE)
• Model Identification: 531X309SPCAJG1
• Functional Category: Digital Signal Processor (DSP) Card
• Drive Compatibility: GE 300 Series / Innovation Drives
• Processor Type: Real-time Floating Point DSP
• Revision Status: G1 (Includes factory-authorized logic refinements)
• Bus Interface: High-bandwidth proprietary local bus
• Environmental Protection: G3-rated conformal coating (Standard on SPCA variants)
• Operational Range: 0 °C to +60 °C
• Signal Isolation: Opto-isolated logic pathways
