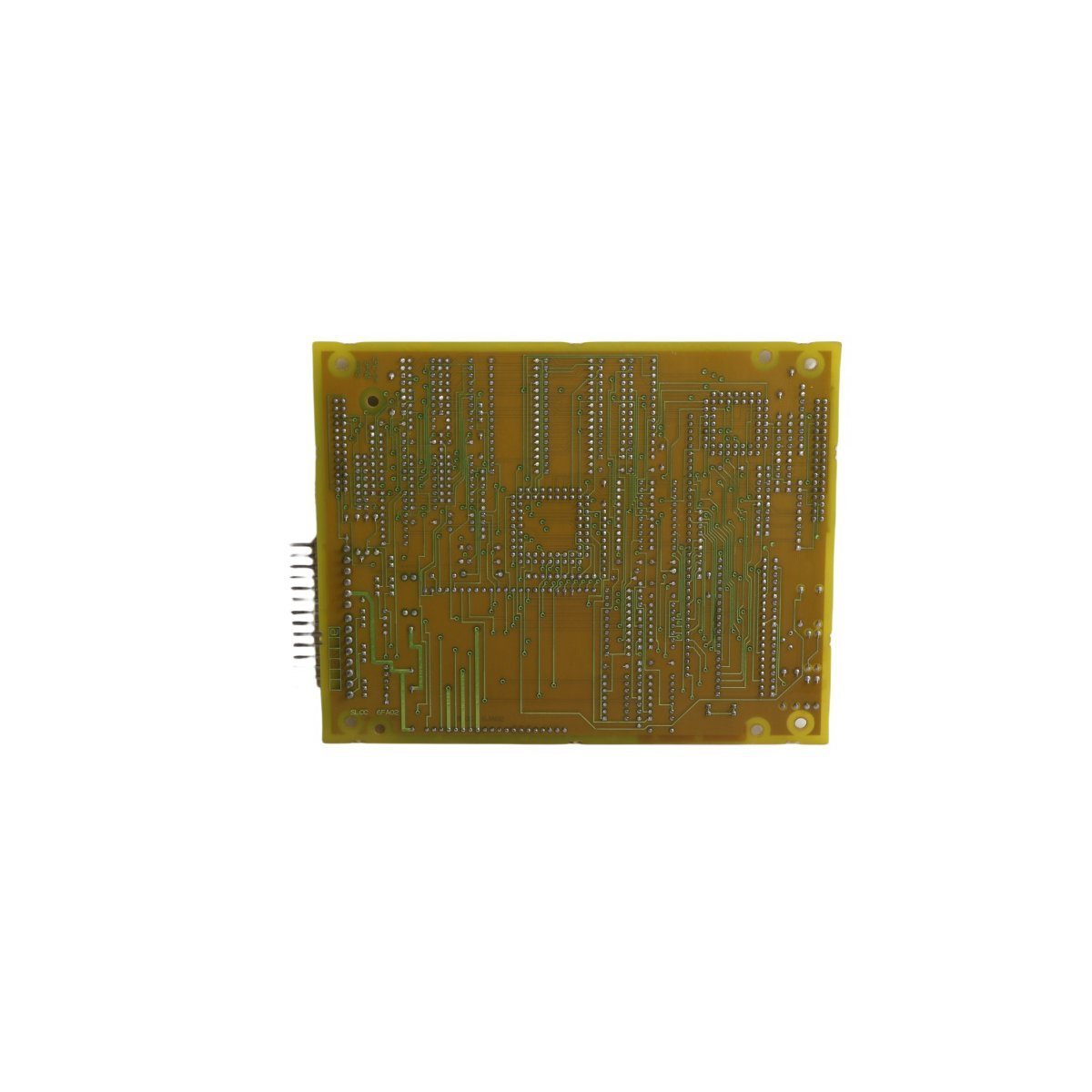

General electric DS200SLCCG1ACC LAN Communication Card

The GE DS200SLCCG1ACC is a high-speed LAN communications card for Mark V Speedtronic systems. This genuine General Electric module manages critical data exchange for turbine controls and digital drives. It features a compact USA-made design, 0.24 kg weight, and advanced signal processing capabilities for robust industrial network integration.

Request a Quote

The GE DS200SLCCG1ACC serves as a specialized LAN communications interface within the Speedtronic Mark V control framework. This card facilitates essential data exchange between the drive control layers and external local area networks. It operates primarily as the primary communication link for digital drives and turbine control systems. By processing complex network protocols, it ensures high-speed synchronization across the industrial automation architecture.

Hardware Architecture and Interface Specs

FeatureSpecification
ManufacturerGeneral Electric (GE)
Model NumberDS200SLCCG1ACC
Product SeriesMark V Speedtronic
Module TypeLAN Communication Card
Weight0.24 kg
Dimensions18.8 x 14.2 x 2.0 cm
OriginUSA
System CompatibilityDCS / Drive Control

Functional Capabilities and Signal Processing

The DS200SLCCG1ACC module manages various communication tasks through its onboard microprocessor. It interprets network signals to coordinate turbine operations and drive parameters. Furthermore, the board contains several plug-in connectors for seamless integration into the control rack. These connections eliminate the need for complex manual wiring during maintenance.

Unlike basic termination boards, this communication card handles active protocol translation. It supports the automated management of gas, steam, and wind turbines. The “ACC” revision suffix indicates specific hardware enhancements over earlier “G1” versions. These improvements provide better stability for long-term industrial network performance.

Integration and System Maintenance

This card integrates directly into the Mark V control core. It requires specific configuration via the system software to establish network identity. Because it lacks manual jumpers, the card relies on programmed parameters for operation. Technicians can easily swap the unit due to its standardized mounting footprint.

The DS200SLCCG1ACC remains a critical component for legacy systems requiring modern network reliability. Its durable PCB construction protects against electrical noise common in power plant environments. Regular firmware updates through the main controller ensure the board maintains optimal data throughput.

Key Industrial Applications

  • Speedtronic Mark V turbine control systems
  • Large-scale digital drive communication
  • Power generation facility network management
  • Distributed Control System (DCS) nodes
