The GE DS3800NPSE1E1G is a power supply PCB for the Speedtronic Mark IV turbine control system. It features integrated surge protection, 36 capacitors, and adjustable potentiometers.
The GE DS3800NPSE1E1G functions as a primary power regulation module for the Speedtronic Mark IV turbine control system. This specific board ensures stable electrical distribution to support automated turbine operations and critical safety protocols. It maintains precise voltage levels to prevent control logic failures during industrial processes. Furthermore, the hardware facilitates the seamless management of steam or gas turbine performance. Its design focuses on long-term durability within complex distributed control system (DCS) environments.
| Attribute | Specification Detail |
| Manufacturer | General Electric (GE) |
| Model Number | DS3800NPSE1E1G |
| Product Family | Speedtronic Mark IV |
| Module Category | Power Supply Circuit Board |
| Physical Mass | 0.34 kg |
| Product Dimensions | 23.8 x 17.7 x 4 cm |
| Origin | United States (USA) |
| Hardware Revision | E1E1G |
The DS3800NPSE1E1G incorporates an extensive array of protective components to shield the turbine system from electrical anomalies. For instance, four primary fuses offer immediate overcurrent protection for the internal circuitry. The board also features a Metal Oxide Varistor (MOV) to suppress sudden voltage surges effectively. Additionally, twenty-four high-speed diodes manage the direction of electrical current throughout the board. These elements together ensure that the power supply remains operational during transient power spikes.

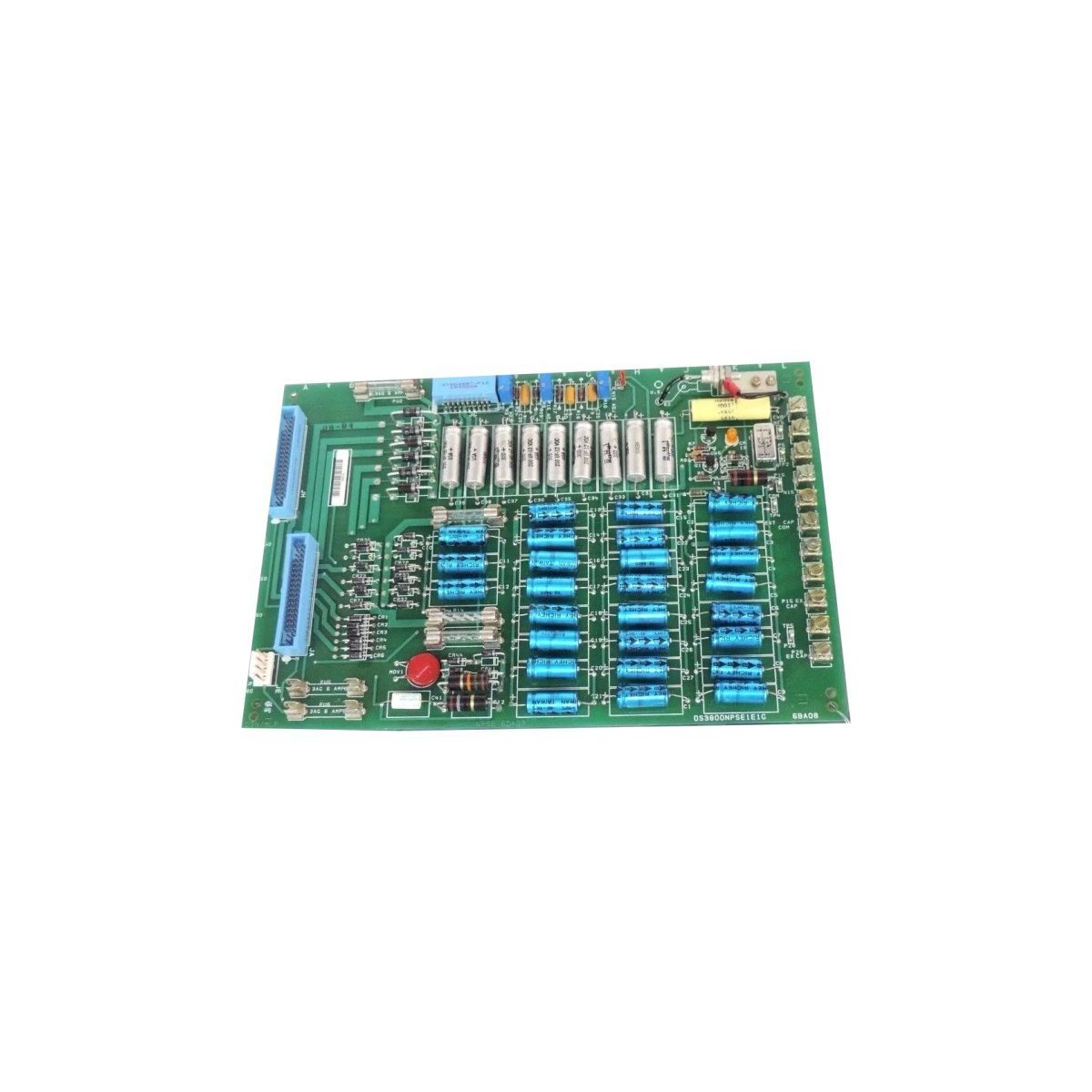

Connectivity on this PCB utilizes three specialized “male” light blue connector ports for secure system interfacing. Two ports reside vertically on the left edge while one smaller port occupies the top section. Moreover, operators can fine-tune system resistance via three top-mounted potentiometers. These adjustable dials allow for precise calibration of the power output parameters. The module also contains a high-density capacitor bank consisting of twenty-seven blue units and nine silver units. This configuration provides superior energy storage and ripple filtration for sensitive electronics.
