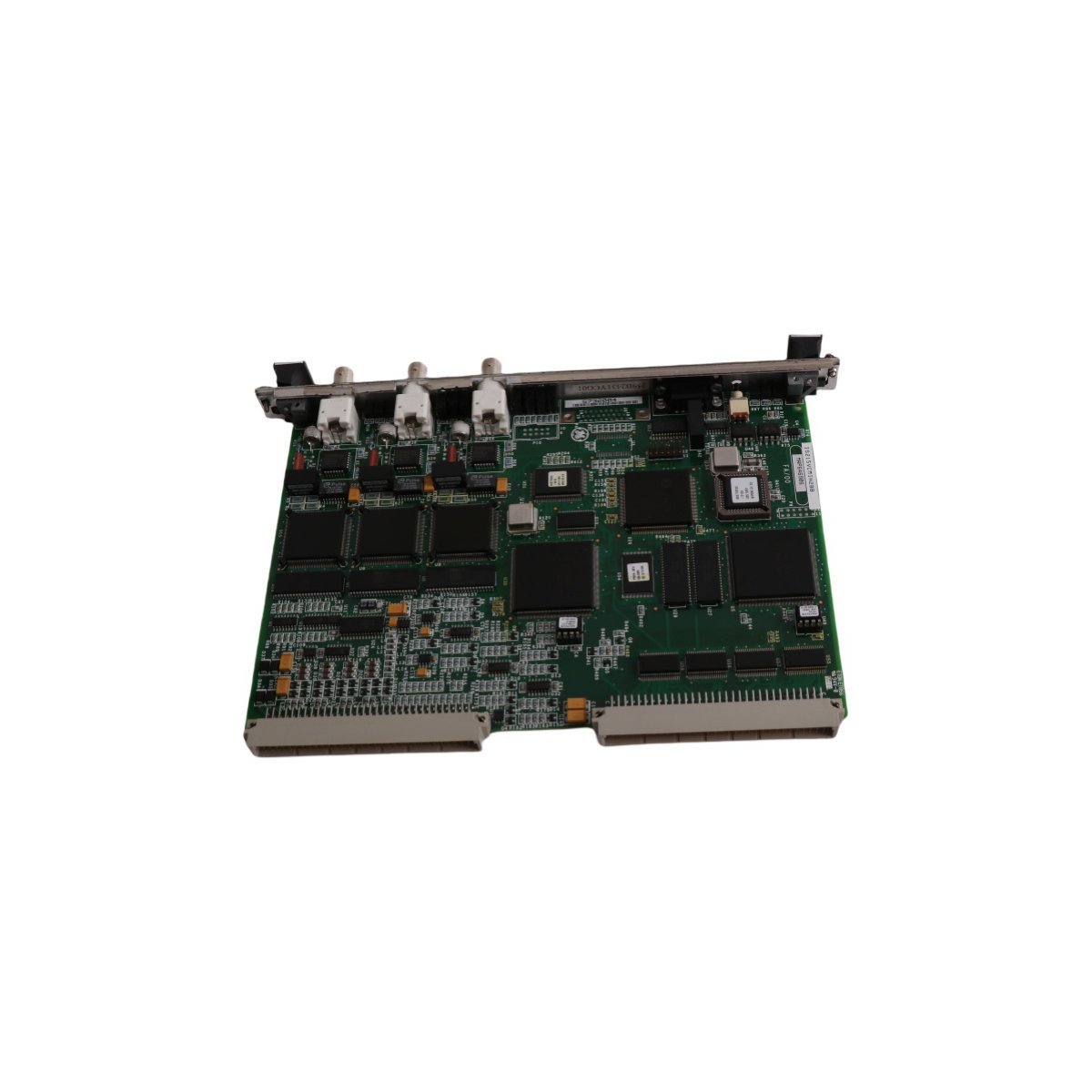

General Electric IS200VSVOH1B VME Communication Interface Card

The GE IS200VSVOH1B functions as a high-precision VME servo control board within the Speedtronic Mark VI turbine system. This specialized communication interface manages up to four electro-hydraulic servo valves for steam and gas turbines. It effectively processes position feedback from Linear Variable Differential Transformers (LVDT) to ensure exact fuel regulation. Furthermore, the card supports both simplex and Triple Modular Redundant (TMR) architectures for maximum operational safety. Its robust design facilitates real-time modulation of turbine flow control systems in global power plants.

Technical Specifications and Hardware Details

Signal Processing and System Architecture

The VSVO board integrates advanced circuitry to maintain fault-tolerant turbine operations. It utilizes a single-slot VME form factor for easy installation into standard control racks. Additionally, the PCB features a conformal coating to resist moisture and industrial contaminants. The hardware includes four high-reliability relays and over 70 integrated circuits for complex logic execution. Ten inductor beads also filter electrical noise to preserve signal integrity during high-speed data transmission. Consequently, the card delivers stable performance even in electrically noisy environments.

Diagnostics and Visual Monitoring

This communication interface includes a comprehensive LED diagnostic array on the front panel. A green LED indicates the active “RUN” status during normal turbine operation. Meanwhile, the red “FAIL” and orange “STATUS” indicators provide immediate alerts for hardware or logic errors. These visual tools allow technicians to identify system faults without external diagnostic equipment. Furthermore, integrated test points enable manual signal verification during routine maintenance procedures. These features significantly reduce downtime by accelerating the troubleshooting process.

Redundancy and Field Connectivity

In TMR configurations, the IS200VSVOH1B synchronizes with TSVO or DSVO terminal boards for voting-based control. This redundancy ensures that the turbine remains operational even if a single control channel fails. The board connects via a specialized J5 front connector and multiple internal P-connectors. It also manages pulse rate flow inputs to monitor fuel consumption and turbine speed accurately. Because it shares data across the VME backplane, it maintains perfect synchronization with other Mark VI controllers.

Core Performance Features

• Precise LVDT excitation improves the accuracy of valve position feedback.
• Simplex and TMR compatibility offers flexible deployment for different safety levels.
• Robust VME architecture supports high-speed communication with the central CPU.
• Industrial-grade relays manage critical interlocking and trip functions.
• Ethernet-ready integration allows for modern DCS monitoring and data logging.
