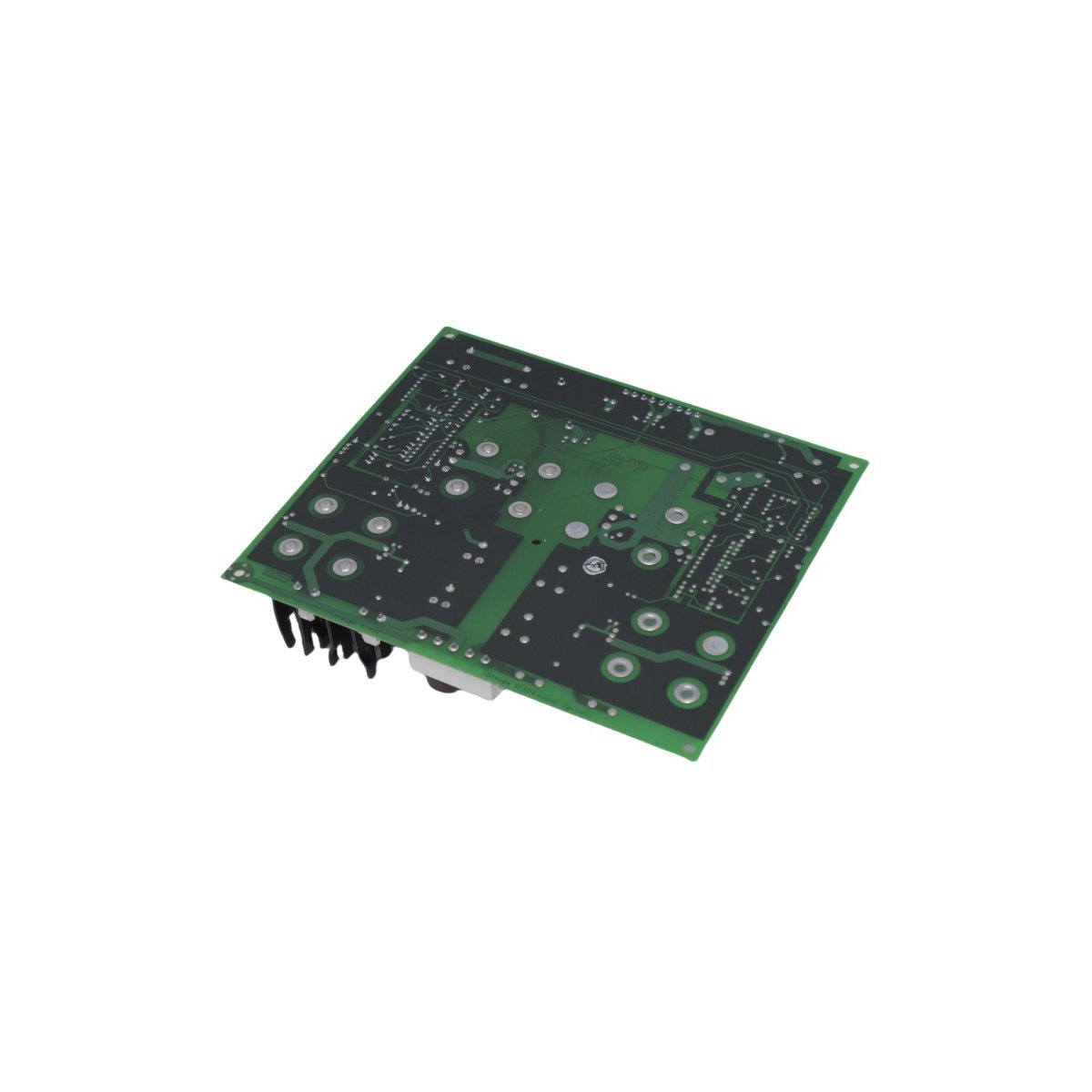

General electric IS200IGPAG2AED Gate Drive Power Supply Board

The GE IS200IGPAG2AED is a high-reliability Gate Drive Power Supply Board for Mark VIe and EX2100 systems. It features an advanced thermal design with six heat sinks and dual-sided LED diagnostics. This brand-new power module ensures precise voltage regulation for critical turbine control and excitation applications in the power generation industry.

Request a Quote

The GE IS200IGPAG2AED functions as a critical Gate Drive Power Supply within the Mark VIe control architecture. This board provides the necessary electrical energy to drive power semiconductor gates. It primarily serves the EX2100 Excitation Control system and other high-power DCS applications. Its design ensures stable voltage delivery for demanding turbine and generator control environments.

Technical Specifications and Hardware Profile

FeatureDetails
ManufacturerGeneral Electric (GE)
Model NumberIS200IGPAG2AED
Product FamilyMark VIe / EX2100
Board TypeGate Drive Power Supply
Component Weight0.22 kg
Dimensions21 x 186 x 263 mm
Diagnostic IndicatorsGreen and Amber LED Status Lights
Connectivity9-pin Vertical Male Header

Component Architecture and Thermal Design

The IS200IGPAG2AED features a dual-sided assembly for optimized performance. One side contains the bulk of the power electronics. This includes high-grade electrolytic capacitors and heavy-duty inductor coils. Furthermore, metal film resistors provide high stability under varying thermal conditions.

Thermal management remains a priority for this power supply board. Two rows of three heat sinks effectively dissipate heat from active components. This configuration prevents overheating during continuous industrial operation. Additionally, the board uses ceramic and polyester vinyl capacitors to filter electrical noise.

Operational Features and Maintenance

Visual diagnostics help technicians monitor the board status in real time. One green and one amber LED provide clear signaling on both sides of the PCB. These indicators facilitate quick troubleshooting within the control cabinet. The board also features several drilled terminal connectors for secure electrical mounting.

As a member of the Mark VIe series, this board features a protective coating. This “conformal coating” guards against dust and moisture. The functional numbering system also tracks the revision history for precise system matching. This ensures compatibility during hardware replacement or system upgrades.

Primary Industrial Applications

  • EX2100 Excitation Control systems
  • Gas and steam turbine control platforms
  • High-voltage power conversion modules
  • Industrial DCS power management units
