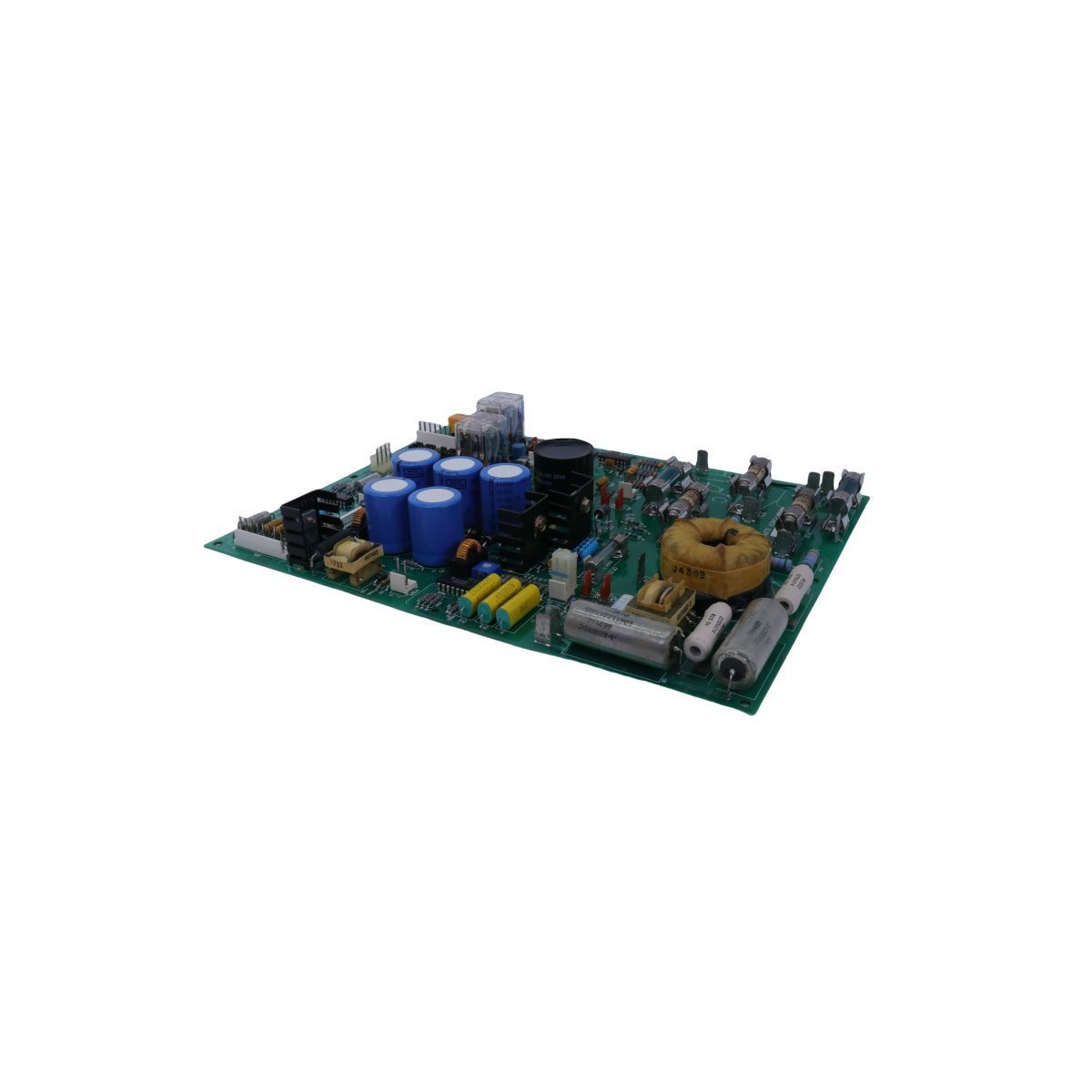

The GE 531X111PSHARG3 is a high-performance Motor Field Control and Power Supply Board. It provides regulated 5V, 15V, and 24V DC outputs for industrial drives. This 531X series module features integrated pulse transformers, three control relays, and precision potentiometers for field calibration. Its USA-made design ensures reliable voltage regulation and surge protection for critical DCS and turbine control applications.
The GE 531X111PSHARG3 functions as a specialized power distribution and field regulation module within GE industrial drive systems. This versatile board generates the essential DC voltages required for internal logic and peripheral device operations. Specifically, it provides regulated 5 VDC, 15 VDC, and 24 VDC outputs to maintain system stability. Beyond power conversion, the card regulates motor field currents to ensure precise torque and speed control in heavy-duty exciters.
| Feature | Specification |
| Manufacturer | General Electric (GE) |
| Model Number | 531X111PSHARG3 |
| Product Family | 531X Replacement Series |
| Voltage Outputs | 5 VDC, 15 VDC, 24 VDC |
| Onboard Relays | K1 (Run), K2 (Max), K3 (Fault) |
| Weight | 0.06 kg |
| Dimensions | 11.3 x 5.7 x 1.5 cm |
| Protection | External Metal Oxide Varistors (MOVs) |
The 531X111PSHARG3 incorporates an integrated pulse transformer to drive motor field circuitry efficiently. This component improves the responsiveness of the excitation system during high-load operations. Moreover, the board utilizes three high-reliability relays to manage status signals. These relays facilitate real-time monitoring of operational states, maximum limits, and system faults.
To allow for field-level customization, the module includes three precision potentiometers. Technicians use the P1 (Field Scale) dial to calibrate current feedback levels accurately. Meanwhile, the P2 (CFB Zero) and P3 (CFB Adjust) controls facilitate the fine-tuning of the feedback loop. These manual adjustments ensure the drive operates within optimal parameters for specific motor characteristics.
The G3 version of this board offers enhanced durability through improved surge protection. It utilizes externally mounted Metal Oxide Varistors (MOVs) located on the AC line. These components shield the sensitive logic circuits from damaging voltage spikes. Consequently, the external mounting simplifies inspection and replacement during routine maintenance cycles.
Due to its lightweight 0.06 kg design, the board is easy to handle and install. It serves as a critical component in maintaining legacy turbine control and drive systems. The board remains a standard choice for facilities requiring reliable 531X series replacements with modern safety enhancements.
