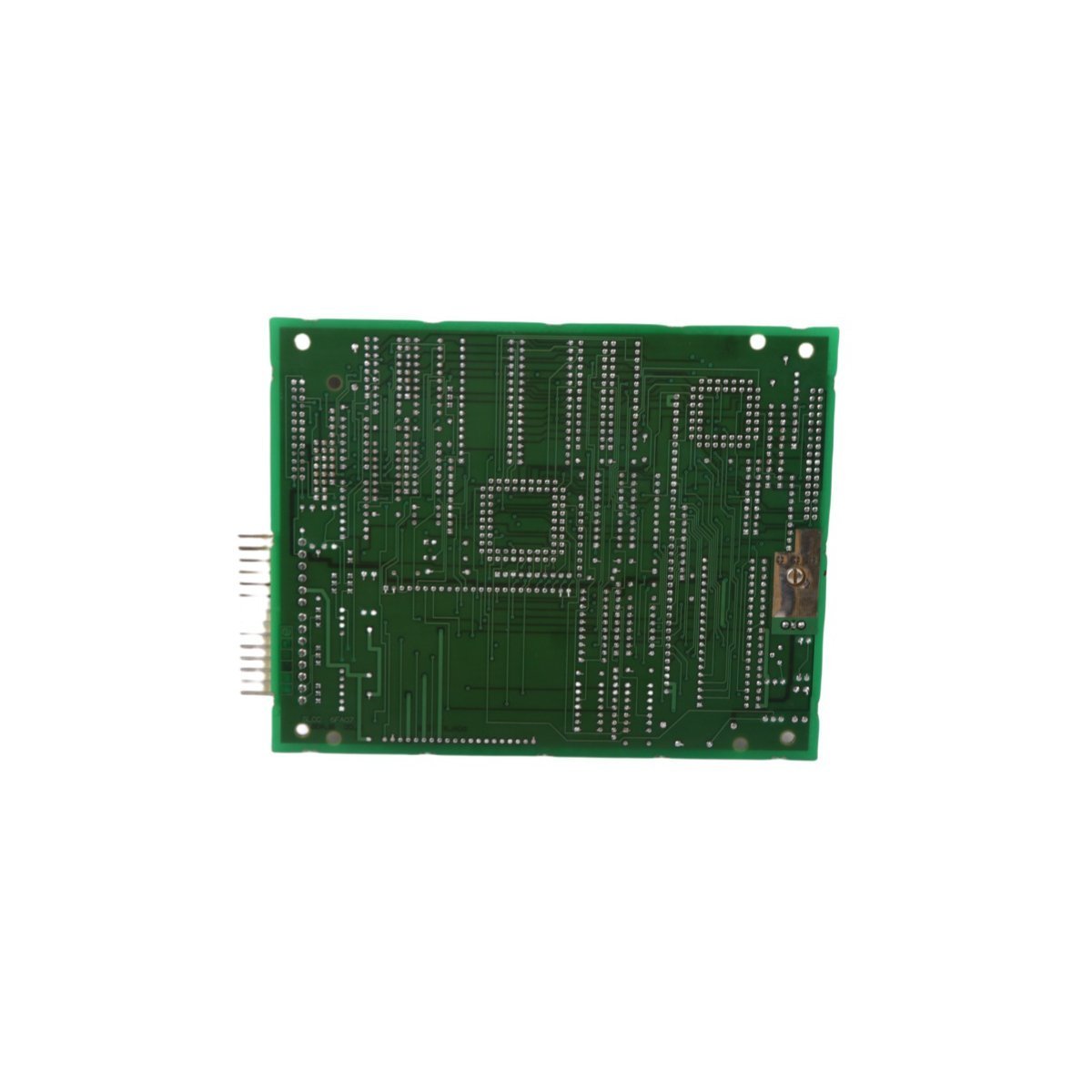

General Electric DS200SLCCG4AFG Interface Communication Card

The GE DS200SLCCG4AFG is a high-performance LAN communication interface card for Mark V turbine control systems. It facilitates real-time data exchange with a low 5W power draw and wide -40°C to +70°C operating range. This 0.24kg module provides essential signal routing and interface connectivity for high-speed industrial drive automation.

Request a Quote

The GE DS200SLCCG4AFG serves as a specialized LAN communication interface within the Mark V turbine control system. This card manages the critical exchange of data between the drive control board and the user interface. It ensures that real-time signals reach the processor without delay or interference. Because turbine environments require high-speed synchronization, this module prioritizes low-latency data throughput. It functions as a bridge for command signals, maintaining the operational integrity of large-scale industrial drives.

Technical Performance and Environmental Ratings

ParameterSpecification Details
ManufacturerGeneral Electric (GE)
Model NumberDS200SLCCG4AFG
System SeriesMark V / Mark VIe
Power Requirement+5V DC (Backplane Supplied)
Power Consumption< 5 Watts
Operating Temperature-40°C to +70°C
Humidity Range5% to 95% (Non-condensing)
Physical Weight0.24 kg

Hardware Configuration and Connectivity

This interface card features a compact layout designed for rapid installation into the control rack. It communicates directly with the backplane to receive power and logic signals. The board contains multiple jumpers and connectors that allow technicians to configure specific communication protocols. Furthermore, the G4 version of this card includes optimized circuitry for improved noise immunity. This enhancement prevents electromagnetic interference from disrupting sensitive turbine telemetry.

Functional Role in Turbine Control

The DS200SLCCG4AFG provides the essential link for diagnostic monitoring and parameter adjustments. It supports multiple input and output operations required for complex signal routing. If the communication link breaks, the module triggers immediate system alerts to prevent equipment damage. Its small 0.24 kg frame simplifies the replacement process during scheduled maintenance windows. By maintaining a steady data flow, the card supports the long-term efficiency of power generation assets.

Key Operational Benefits

  • Enables reliable high-speed data transfers across the local area network
  • Supports extreme temperature variations in turbine housing environments
  • Minimizes energy overhead with an efficient sub-5-watt power draw
  • Facilitates seamless integration with existing Mark V drive control boards
  • Protects signal paths against industrial electrical transients
