GE IS210MVRBH1A Mark VIe I/O Interface Terminal Board
The GE IS210MVRBH1A is a high-accuracy I/O interface board for Mark VIe systems. It supports R/S/T signal processing, real-time thermal monitoring, and IONet connectivity.
You are here:
Sale!
SKU: 531X128HMSADG1

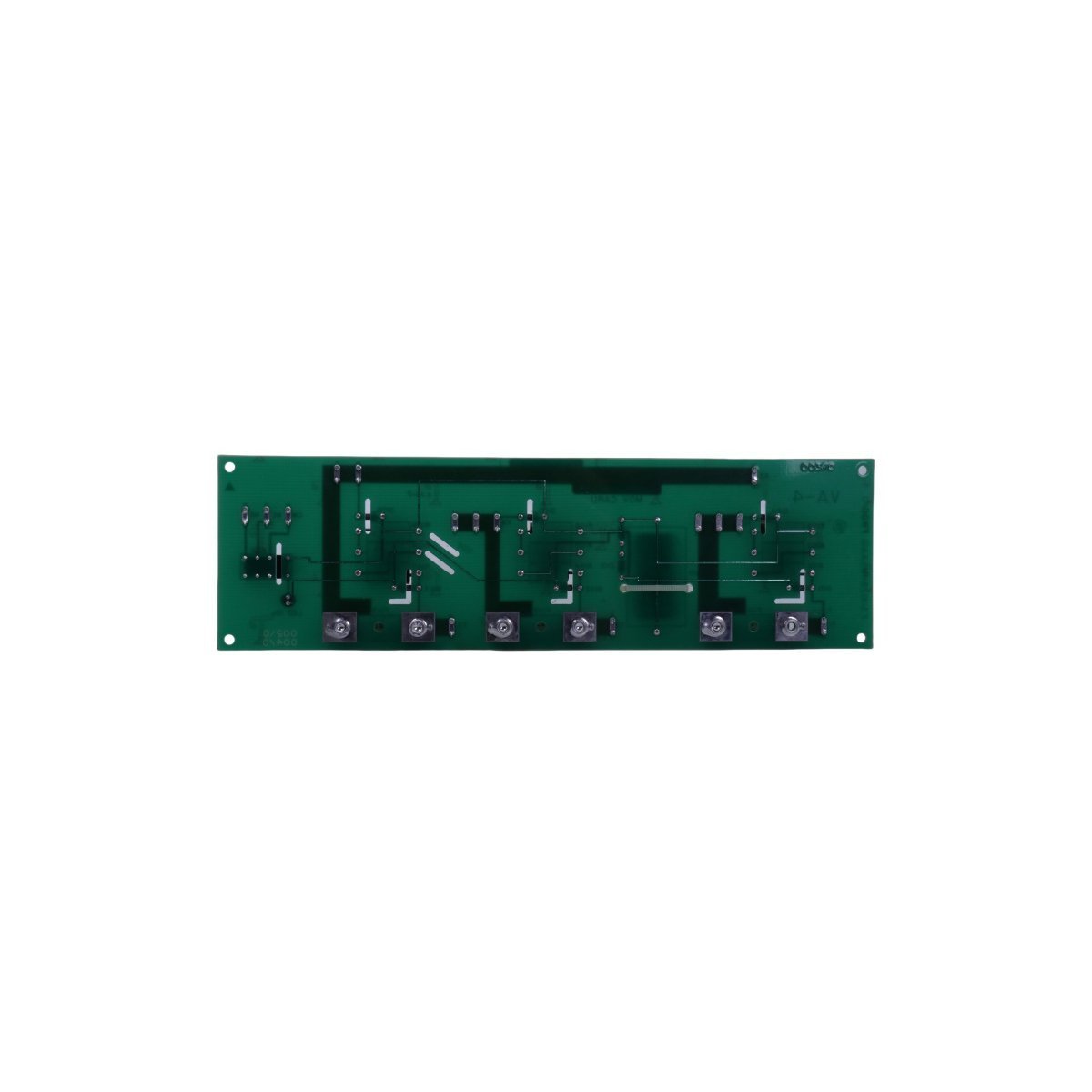

General electric 531X128HMSADG1 High-Performance Power Supply Card
The GE 531X128HMSADG1 is a compact power supply interface card for industrial drives. It features analog line receivers, 7 potentiometers, and a tachometer range switch.
The GE 531X128HMSADG1 is a specialized power supply and interface module for industrial drive systems. This card functions as a critical link between the main power source and control logic components. It stabilizes electrical inputs and filters signals to ensure consistent performance in heavy-duty machinery. Specifically, the module belongs to the versatile 531X series within the GE Multilin product range. Its design focuses on high-precision regulation for distributed control systems (DCS). Consequently, it provides the reliability required for continuous turbine and motor automation tasks.
Core Technical Specifications
| Feature | Specification Detail |
| Manufacturer | General Electric (GE) |
| Model Number | 531X128HMSADG1 |
| Card Type | High-Performance Power Supply / Interface |
| Series | 531X Drive Control |
| Dimensions | 11.3 x 5.7 x 1.5 cm |
| Unit Weight | 0.06 kg |
| System Compatibility | DCS / Multilin / Speedtronic |
| Country of Origin | USA |
Component Architecture and Connectivity
The 531X128HMSADG1 features a high-density layout optimized for signal processing and power distribution. It includes a three-position terminal strip for secure field wiring connections. Furthermore, the board surface hosts two vertical male pin connectors and a single header interface. These ports facilitate rapid data exchange with the central processor or adjacent drive boards. The card also utilizes seven adjustable potentiometers to allow for precise resistance calibration. Operators use these dials to fine-tune the output signals for specific application requirements.
Signal Processing and Circuit Protection
This high-performance card integrates advanced circuitry to manage electrical noise and voltage fluctuations. It contains several integrated circuits, including analog line receivers and analog inverters. Additionally, a comprehensive capacitor array provides excellent energy filtration across the board. The presence of five resistor network arrays ensures balanced current distribution to sensitive downstream logic. For manual configuration, the board incorporates a seven-toggle switch designated for tachometer range adjustments. Multiple TP test points also allow technicians to perform real-time diagnostics during operation.
Tags: GE Mark VIe
You may also like
Sale!
GE DS200TCPDG1BEC Mark V Turbine Control Power Distribution Board
Core Functionality in Speedtronic Turbine Systems
The GE DS200TCPDG1BEC operates as a specialized Power Distribution Board (PDB) specifically engineered for the Mark V Speedtronic Turbine Control Series. This board plays a fundamental role in managing and protecting the electrical circuits that drive automated assemblies in steam, gas, and wind turbines. By distributing regulated power across the control architecture, the DS200TCPDG1BEC ensures that critical sensors and actuators receive consistent voltage. Furthermore, because this module belongs to one of the final GE product lines to utilize Speedtronic technology, it remains a vital component for maintaining legacy industrial drive systems.Advanced Circuit Protection and Diagnostic Interface
Regarding its physical layout, the DS200TCPDG1BEC incorporates a robust array of 36 fuses, each housed within a vertical black plastic canister for maximum protection. This design allows technicians to perform rapid maintenance; they simply twist the canister tops to access and replace internal fuses without specialized tools. Moreover, the board features 36 dedicated "OK" LEDs located adjacent to each fuse. These indicators provide immediate visual diagnostics, where a lit green LED confirms circuit integrity and an unlit state signals a blown fuse or a power failure. Consequently, this real-time feedback loop significantly reduces troubleshooting time during system outages.Mechanical Configuration and System Connectivity
To facilitate comprehensive manual control, the DS200TCPDG1BEC includes eight high-quality toggle switches that allow operators to isolate specific power branches. Additionally, the board utilizes a 10-pin connector and four dedicated signal wire terminals to interface with the wider Mark V control network. This specific "BEC" version represents a refined revision of the original "G1" hardware, incorporating enhanced performance specifications over earlier iterations. It is important to note that while the Mark V series is a legacy line, the board’s standardized 29.2 x 27 x 5 cm footprint ensures a precise fit within existing turbine control cabinets.Technical Specifications
- Brand: General Electric (GE)
- Model Number: DS200TCPDG1BEC
- Product Series: Mark V Speedtronic
- Component Type: Power Distribution Board (PCB)
- Fuse Capacity: 36 individual canister-style fuses
- Diagnostic Indicators: 36 "OK" status LEDs
- Control Interface: 8 toggle switches
- Connection Ports: 10-pin connector and 4 signal terminals
- Weight: 0.96 kg
- Dimensions: 29.2 cm x 27 cm x 5 cm
- Country of Origin: USA
- System Compatibility: DCS / Turbine Control
Reliability and Lifecycle Management
In demanding industrial environments, the DS200TCPDG1BEC offers essential overcurrent protection that prevents damage to expensive turbine controllers. Since the module employs a transparent diagnostic system, it empowers maintenance teams to maintain high system availability. Furthermore, the active voice of the status LEDs ensures that power distribution faults never go unnoticed. Although GE has officially discontinued the Mark V series, authentic DS200TCPDG1BEC boards continue to serve as the backbone for reliable turbine operations globally, providing the necessary durability for long-term industrial service.
