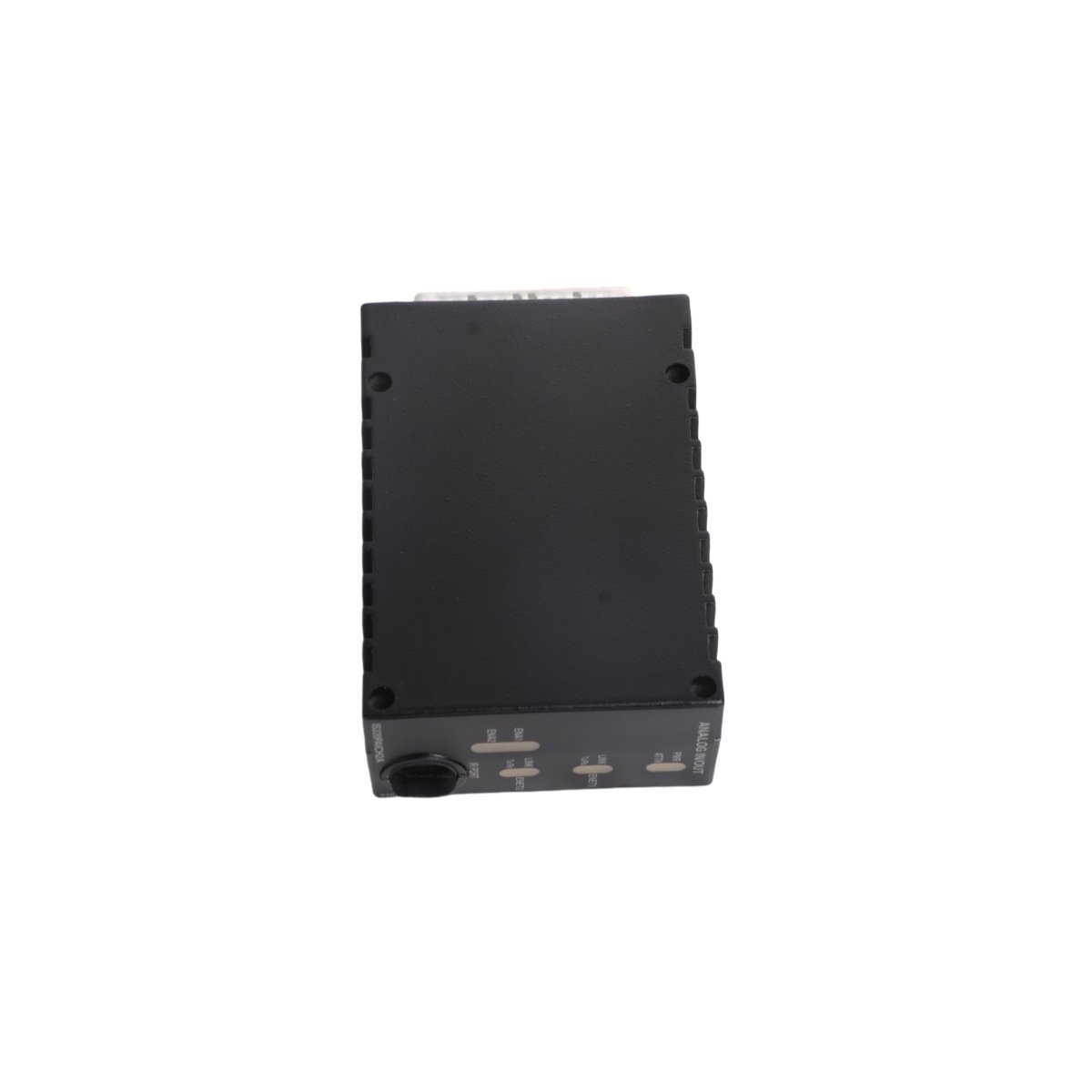

The GE IS220PAICH2A is a high-performance analog I/O pack for Mark VIe turbine control systems. It features 10 configurable analog inputs and 2 current loop outputs, supporting both simplex and TMR configurations for critical process control and monitoring.
The GE IS220PAICH2A functions as a high-density analog I/O pack within the Mark VIe and VIeS distributed control system architectures. This module facilitates the acquisition of process-critical sensor data and the delivery of control signals to field actuators. By integrating a dedicated processor with robust signal conditioning circuitry, the module ensures accurate, real-time interface capabilities in demanding turbine and industrial control environments.
The IS220PAICH2A employs a dual-Ethernet interface to maintain high availability and redundancy within the control network. Because the module supports both simplex and Triple Modular Redundant (TMR) configurations, engineers deploy it in safety-critical applications requiring maximum uptime. Furthermore, the internal signal processing architecture allows users to configure individual channels for diverse voltage (5V, 10V) or current (4-20 mA) ranges. Consequently, the pack adapts seamlessly to varied instrumentation requirements without necessitating additional hardware changes.
Facility operators utilize the ToolboxST application to streamline the commissioning and diagnostics of the IS220PAICH2A. Upon installation, the module performs a soft-start sequence that mitigates inrush current, which protects downstream components from electrical stress. Moreover, the inclusion of onboard diagnostic LEDs provides immediate status feedback, which enables maintenance teams to identify and resolve system anomalies efficiently. Furthermore, the ruggedized mechanical design ensures that the pack maintains consistent contact with the terminal board, even under conditions of high vibration or thermal fluctuation. By providing precise data conversion and reliable signal output, this module significantly improves the diagnostic capabilities and operational reliability of the turbine control system.
