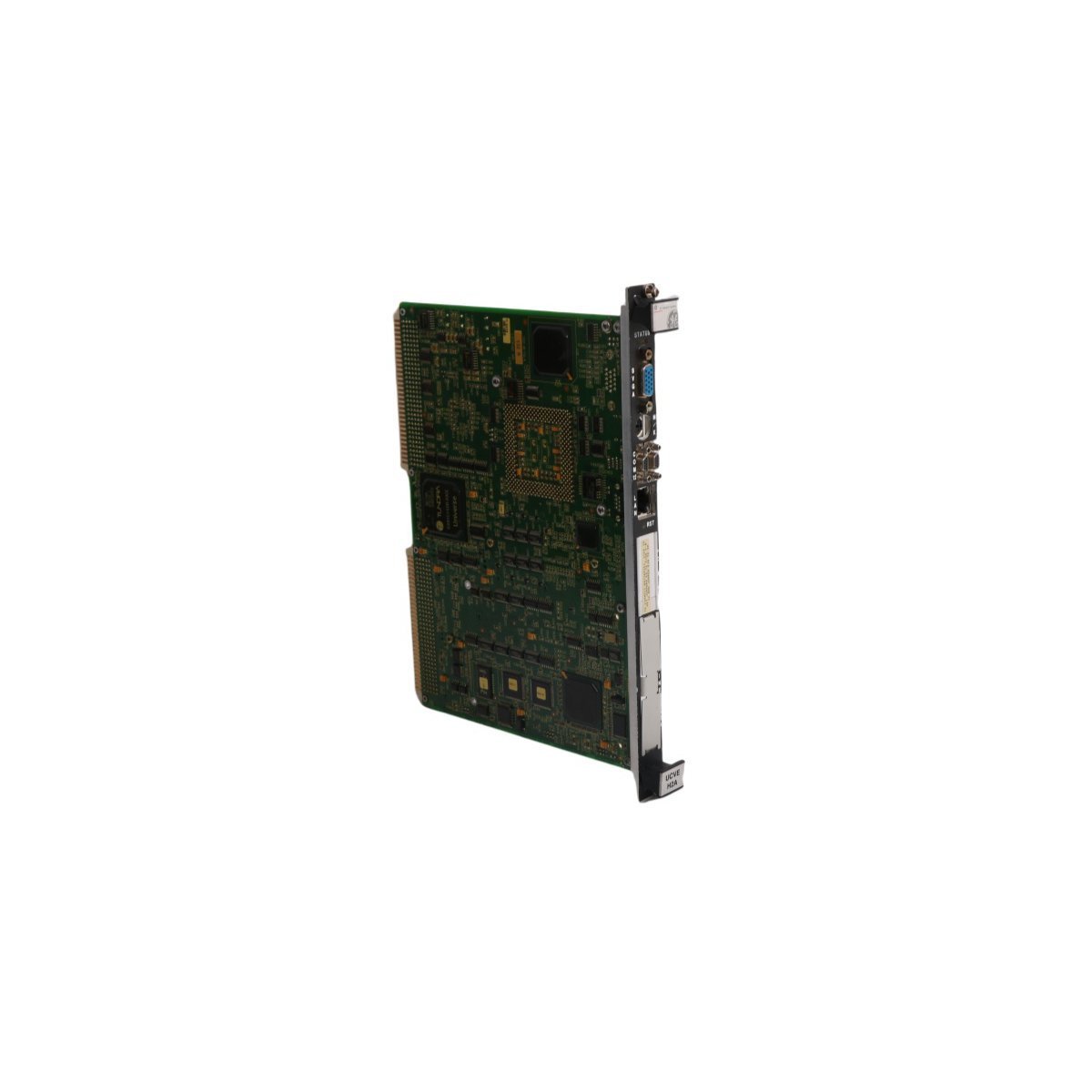

GE Mark VIe IS215UCCCH4A VME Controller Board

The GE IS215UCCCH4A is a 1.6 GHz Intel Pentium M-powered VME controller board for Mark VIe systems. Featuring 256MB DRAM and QNX Neutrino OS, this 3U CPCI module provides high-speed processing and robust diagnostics for gas turbine control.

Request a Quote

Product Overview

The General Electric IS215UCCCH4A is a high-performance VME-based controller board designed specifically for the Mark VIe gas turbine control system. Functioning as a 3U Compact PCI (CPCI) module, this board serves as the primary processing engine for turbine automation. It integrates a 1.6 GHz Intel Pentium M processor to handle the demanding real-time computational requirements of industrial turbine environments. The assembly incorporates the IS200 EPMC daughterboard, enhancing its communication and processing capabilities within the Mark VIe architecture.

Core Functional Capabilities

  • High-Performance Architecture: By utilizing a 1.6 GHz Intel Pentium M processor, the module ensures rapid execution of control logic and simultaneous data management.
  • Real-Time Stability: The board operates on the QNX Neutrino real-time operating system (RTOS), which provides the deterministic performance necessary for safety-critical gas turbine applications.
  • Comprehensive Connectivity: It features six dedicated Ethernet-style ports, facilitating seamless high-speed data exchange across the control network.
  • Sophisticated Diagnostics: Built-in diagnostic routines monitor system health during initialization and runtime; furthermore, operators can manage these alarms through the ToolboxST application and log them via WorkstationST for trend analysis.
  • Integrated Memory: The module includes 256 MB of DRAM for active process execution and 128 MB of Flash memory for non-volatile storage of system parameters.

Technical Specifications

  • Manufacturer: General Electric (GE)
  • Model Number: IS215UCCCH4A
  • System Series: Mark VIe Control
  • Processor: Intel Pentium M, 1.6 GHz
  • Operating System: QNX Neutrino
  • Memory: 256 MB DRAM / 128 MB Flash
  • Interface Ports: 6x Ethernet Ports (Labeled for specific functions)
  • Form Factor: 3U Compact PCI (CPCI)
  • Power Consumption: +5 VDC (4.5A typical), +3.3 VDC (1.5A), +12 VDC (50mA max)
  • Operating Status: Front-panel LED diagnostic indicators

Industrial Applications

Because of its robust design and high EMI resistance, the IS215UCCCH4A is primarily utilized in:

  • Power Generation: Coordinating fuel control and protection for large-scale gas turbines.
  • Process Automation: Serving as a Distributed Control System (DCS) node in high-reliability industrial plants.
  • Critical Infrastructure: Managing complex automation where zero-downtime performance is a prerequisite.
