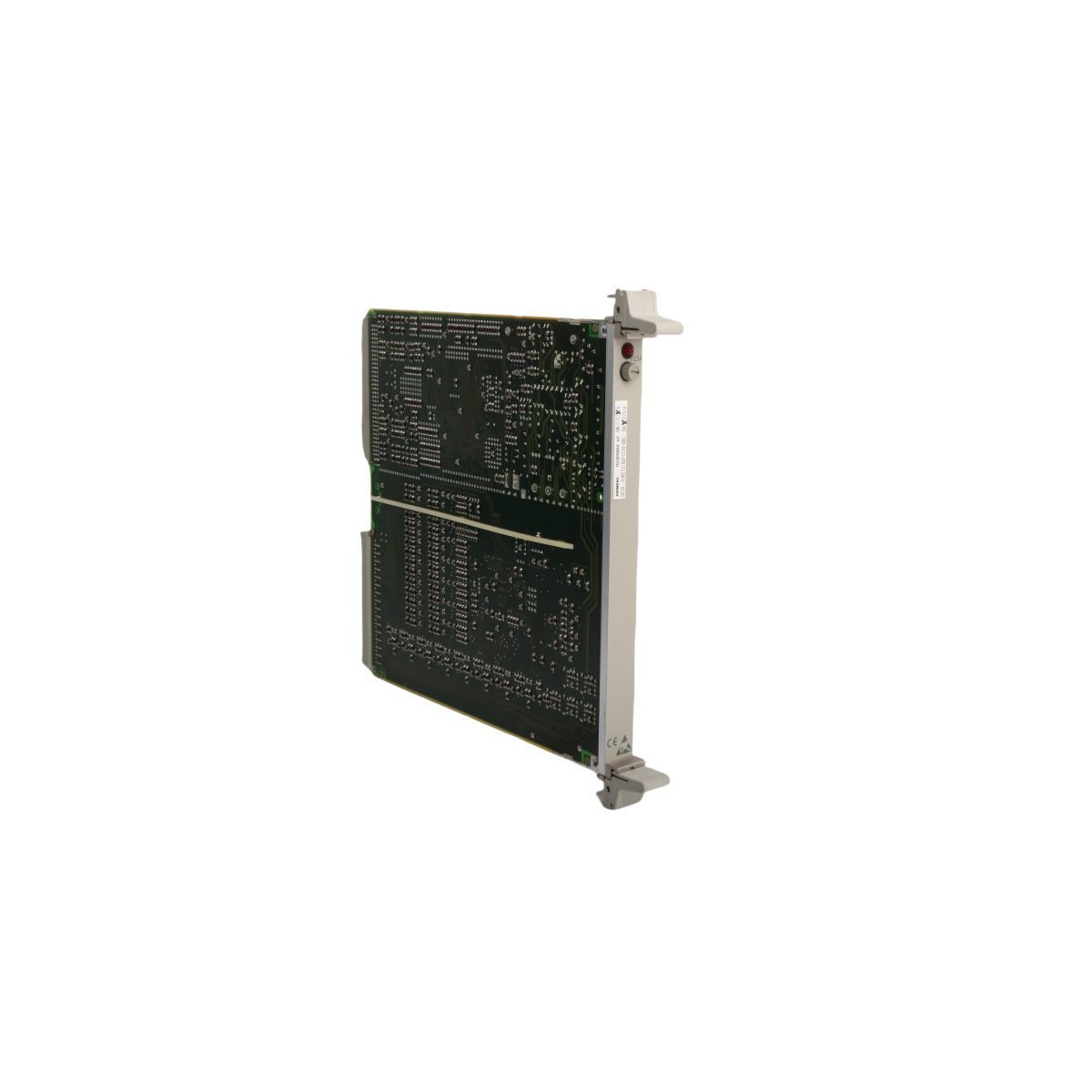

Siemens 6DP1210-8BC TELEPERM XP Binary Module FUM 210

Product Overview

The Siemens 6DP1210-8BC serves as a specialized Binary Module (FUM 210) within the TELEPERM XP (TXP) control system ecosystem. Engineers primarily utilize this module for high-speed binary signal acquisition, encoder signal preparation, and comprehensive drive control monitoring. By integrating high-density I/O capabilities, the FUM 210 ensures precise signal processing and provides the necessary tactile response for complex industrial automation sequences.

Technical Specifications

• Brand: Siemens
• Model Number: 6DP1210-8BC
• Module Type: Binary Module – FUM 210
• Control System: TELEPERM XP / PLC
• Binary Inputs: 28 Channels (supports fast recording)
• Binary Outputs: 16 Channels
• Relay Configuration: 14 SPDT (Single-Pole Double-Throw) changeover contacts
• Sensor Supply: 24V DC integrated output
• Operating Temperature: 0°C to 60°C
• Storage Temperature: -40°C to 70°C
• Relative Humidity: 5% to 95% (Non-condensing)
• Dimensions: 2.1 x 26.5 x 26.4 cm
• Weight: 0.4 kg
• Origin: Germany

Core Functionality and Hardware Features

The Siemens 6DP1210-8BC offers a sophisticated interface for sensor conditioning and signal management. Because the module includes a dedicated 24V DC supply, it simplifies field wiring by directly powering connected sensors. Furthermore, the inclusion of 14 SPDT changeover contacts allows the system to switch independent circuits, providing high flexibility for interlocking and drive signaling tasks.

Industrial facilities rely on the FUM 210 for “Fast Binary Recording.” This feature enables the control system to capture rapid state changes that standard I/O modules might miss, which proves critical for troubleshooting and sequence-of-events recording in power plants or heavy manufacturing.

Environmental Durability

Siemens designed the 6DP1210-8BC to withstand the rigors of continuous industrial operation. The module maintains stable performance across a wide temperature gradient and tolerates high humidity levels. Its compact, slim-profile design ensures that it occupies minimal rack space while providing high-density connectivity. Additionally, the unit complies with the HS Code 8537101190 for automated control components, facilitating standardized international deployment.

Application Use Cases

• Drive Control Monitoring: Tracking the operational status and faults of motor starters and variable speed drives.
• Encoder Preparation: Conditioning pulse signals for position or speed measurement.
• Fault Signaling: Managing alarm chains and safety interlocks via SPDT relay outputs.
• TELEPERM XP Integration: Serving as a native I/O component for Siemens TXP power plant control systems.
