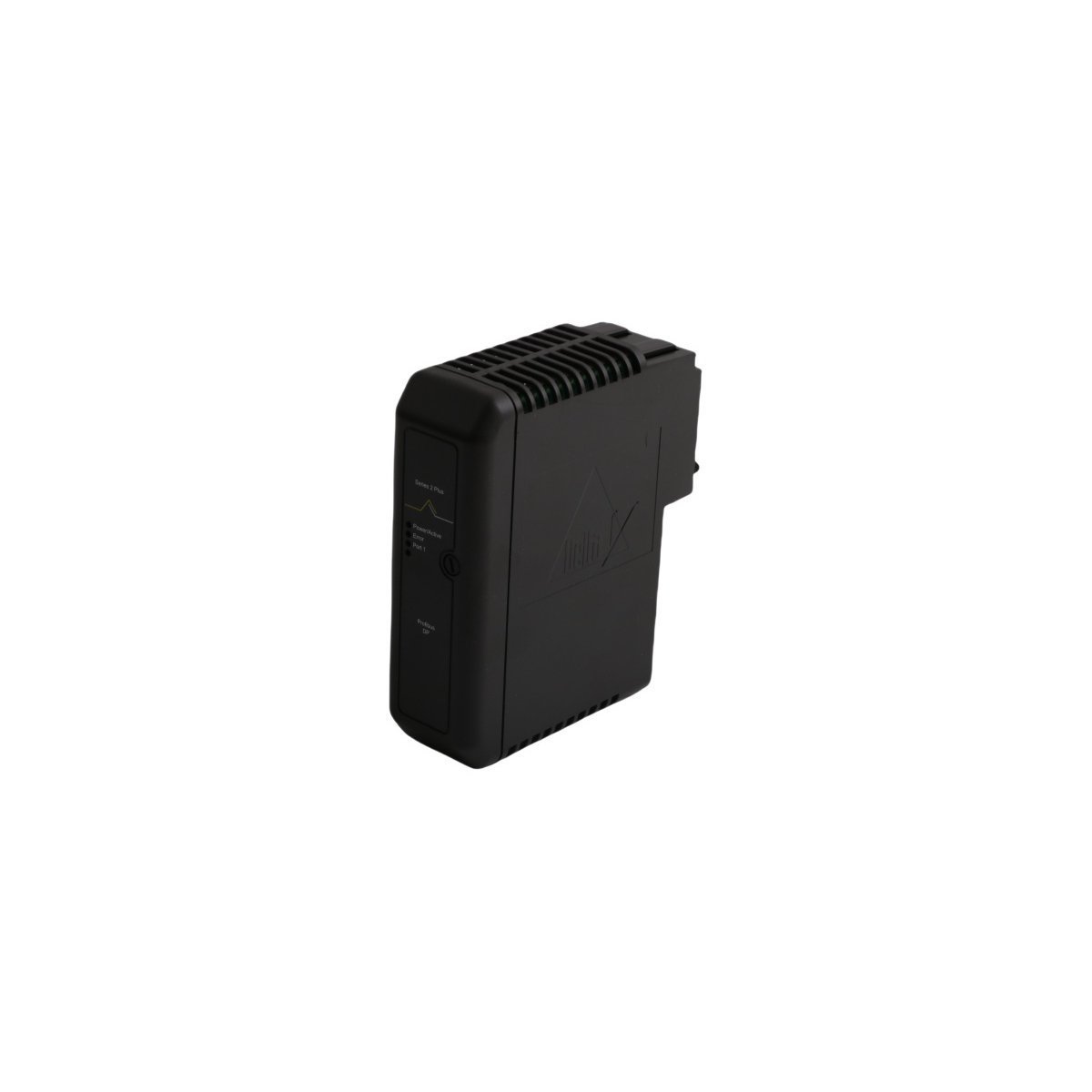

Emerson DeltaV KJ3243X1-BB1 12P3994X042 Profibus DP Series 2 Plus Interface

Technical Overview

The Emerson KJ3221X1-BA1 (Part Number 12P3994X042, Model VE4022) functions as a high-speed communication bridge within the DeltaV Series 2 Plus architecture. This Profibus DP (Decentralized Periphery) Interface Card enables the DeltaV Distributed Control System to exchange data seamlessly with remote I/O, motor control centers (MCCs), and smart field devices. By integrating the Profibus protocol, the card allows operators to access advanced diagnostics and process variables from third-party hardware, centralizing control within the DeltaV environment.

Functional Performance

This module handles complex communication tasks by acting as a Profibus DP Master. It supports a wide range of transmission speeds and ensures deterministic data exchange for time-critical control loops. The “Series 2 Plus” designation indicates enhanced processing capabilities and memory, allowing for more robust device integration compared to standard legacy cards. The card manages the cyclic exchange of I/O data while simultaneously allowing for acyclic communication, which is vital for device configuration and monitoring of Epro vibration systems or similar specialized field instrumentation.

Key Technical Characteristics

• Manufacturer: Emerson Process Management
• Model Number: KJ3243X1-BB1
• Order Number: 12P3994X042
• Type Code: VE4022
• Protocol: Profibus DP (Master)
• Hardware Generation: DeltaV Series 2 Plus
• Transmission Rates: Supports 9.6 kbaud to 12 Mbaud
• Device Capacity: Supports up to 64 slave devices per card
• Mounting: Installs directly onto DeltaV 2-wide or 4-wide I/O carriers
• Operating Voltage: 24V DC through the local bus

Primary Applications

• Motor Control Integration: Communicating with variable frequency drives (VFDs) and intelligent motor starters in industrial plants.
• Third-Party Device Connectivity: Linking specialized sensors, such as Epro vibration monitors or weighing scales, to the primary DCS.
• Remote I/O Expansion: Managing distributed I/O stations located throughout a facility to reduce wiring costs.
• Subsystem Interfacing: Providing a data gateway between the DeltaV system and PLC-based subsystems like water treatment or HVAC.

Operational Advantages

• Plug-and-Play Integration: DeltaV software automatically recognizes the card, simplifying the commissioning of Profibus networks.
• Advanced Diagnostics: Provides real-time status updates for every connected slave device, enabling rapid troubleshooting of network faults.
• Hot-Swappable Design: Maintenance teams can replace the interface card while the controller is powered, ensuring maximum process uptime.
• G3 Environmental Coating: Features conformal coating to protect internal circuitry against corrosive gases and humidity in harsh industrial zones.
