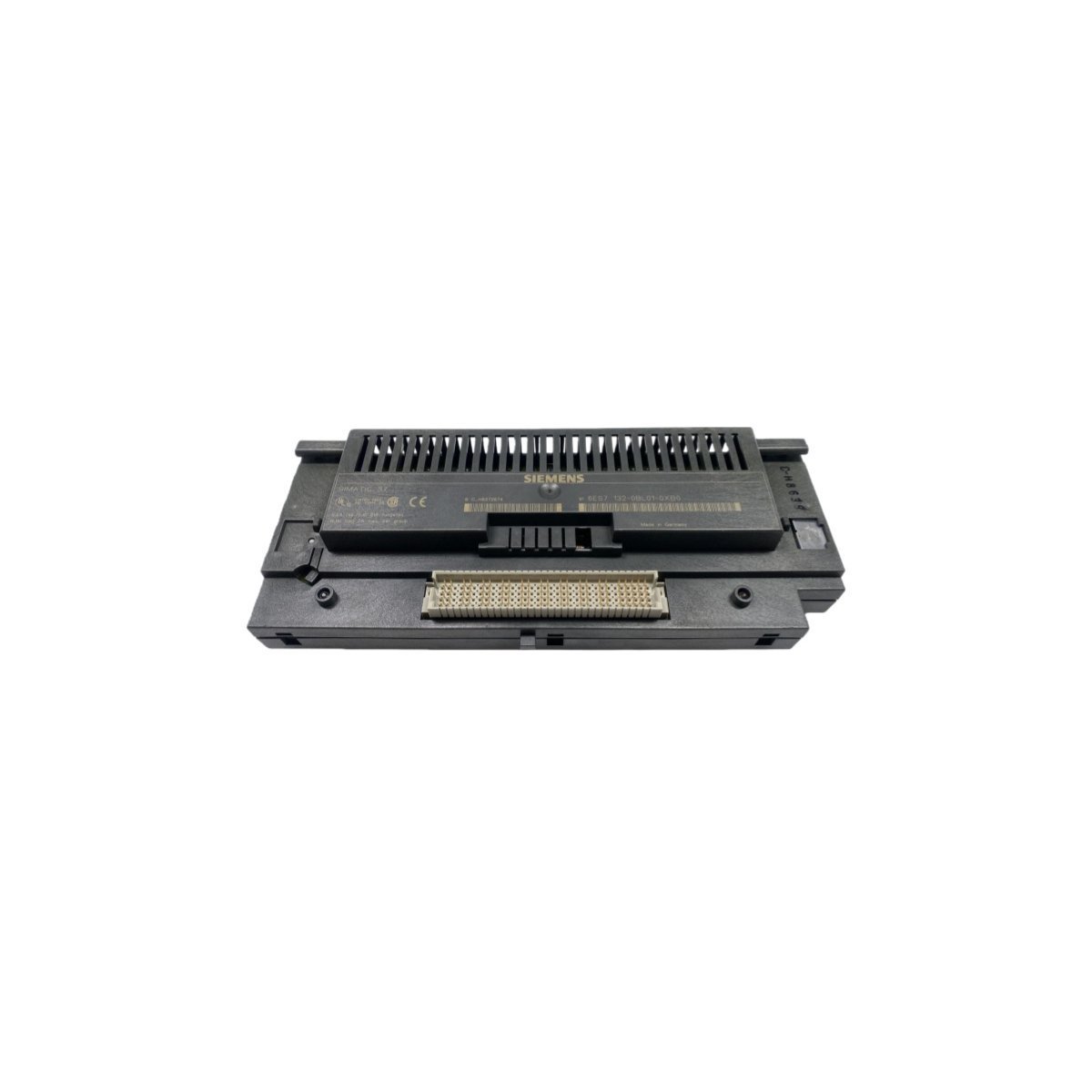

Siemens 6ES7132-0BL01-0XB0 SIMATIC ET 200B Digital Output Module

Product Description

The Siemens 6ES7132-0BL01-0XB0 operates as a high-density digital output block within the SIMATIC ET 200B distributed I/O system. This standalone module provides 32 digital outputs, allowing engineers to control a large volume of actuators, solenoids, and indicators from a single node. By utilizing a compact, integrated design, the module reduces the required space in control cabinets while maintaining high-speed communication with the central PLC.

The module interfaces directly with the PROFIBUS DP network, supporting data transmission rates up to 12 Mbit/s to ensure real-time response for industrial processes. Each output channel delivers 24 V DC at 0.5 A, providing reliable power for standard industrial loads. Furthermore, the unit features built-in electronic short-circuit protection for every channel, which prevents damage to the module during field wiring faults or component failures.

Consequently, the 6ES7132-0BL01-0XB0 offers a cost-effective solution for distributed automation where high channel density is a priority. The module simplifies installation through its permanent wiring capability, which allows users to replace the electronic block without disconnecting the field cables. Through this robust design, Siemens ensures maximum system uptime and streamlined maintenance in complex manufacturing environments.

Key Technical Characteristics

• Manufacturer: Siemens
• Model Series: SIMATIC ET 200B
• Component Type: Distributed Digital Output Module
• Output Channels: 32 Digital Outputs
• Nominal Voltage: 24 V DC
• Output Current: 0.5 A per channel (4 A total per group)
• Network Interface: PROFIBUS DP (up to 12 Mbit/s)
• Addressing: Rotary switch for station address setting (1 to 125)
• Protection: Electronic short-circuit and overload protection
• Isolation: Galvanic isolation between the bus and the load voltage
• Status Indicators: LED lamps for bus faults and individual channel status
• Physical Dimensions: 160 mm x 130 mm x 60 mm (Width x Height x Depth)
