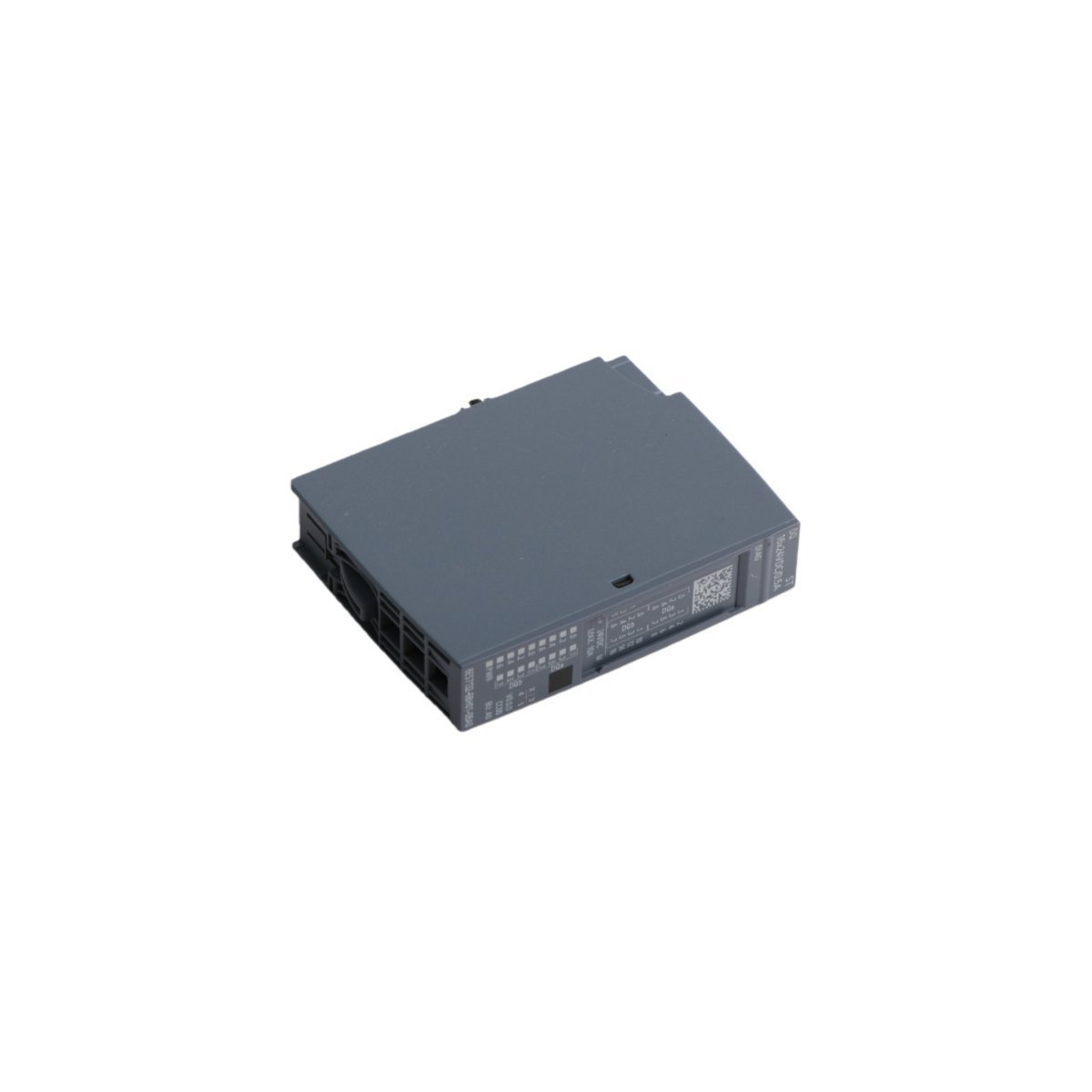

Siemens 6ES7132-6BH01-0BA0 SIMATIC ET 200SP Digital Output Module

The Siemens 6ES7132-6BH01-0BA0 is a high-density 16-channel digital output module for the SIMATIC ET 200SP system. It delivers 24V DC / 0.5A per channel and features advanced diagnostics for short-circuit and wire-break detection. Engineered for compact efficiency, this module ensures reliable control of actuators in TIA Portal and PCS 7 environments.

Product Overview

The Siemens 6ES7132-6BH01-0BA0 anchors high-density automation strategies as a core component of the SIMATIC ET 200SP distributed I/O system. This standard digital output module provides 16 high-performance channels within a compact “Standard” form factor. By delivering 24V DC at 0.5A per channel, this module empowers engineers to control vast arrays of actuators—such as solenoid valves, contactors, and signaling lamps—while significantly reducing the physical footprint in the control cabinet.

Core Functional Capabilities

Drives High-Density Actuation: The module manages 16 independent source-output channels, allowing for the simultaneous control of multiple industrial components. This high channel count maximizes I/O density per millimeter of DIN rail space.
Executes Proactive Diagnostics: The hardware continuously monitors each channel for short-circuits, wire breaks, and supply voltage loss. These real-time diagnostics accelerate troubleshooting and reduce mean time to repair (MTTR) by pinpointing faults immediately at the module level.
Ensures Fail-Safe States: In the event of a communication loss with the central controller, the module triggers a user-defined “substitute value” function. This ensures that all connected machinery transitions to a safe state, protecting equipment and personnel.
Orchestrates Seamless Integration: The system utilizes BaseUnit type A0 (color code CC00) to simplify mechanical mounting and electrical wiring. This standardized interface prevents installation errors and facilitates “hot-swapping” during maintenance without disturbing existing wiring.
Supports Global Communication Standards: The module operates flexibly across PROFINET and PROFIBUS architectures via standardized GSD files. This compatibility ensures that the 6ES7132-6BH01-0BA0 integrates effortlessly into diverse industrial networking environments.

Technical Specifications

Brand: Siemens
Model Number: 6ES7132-6BH01-0BA0
Product Range: SIMATIC ET 200SP
Module Type: DQ 16x24VDC/0.5A ST (Standard)
Output Current: 0.5A per channel (8A total per module)
BaseUnit Compatibility: Type A0 / Color Code CC00
Net Weight: 0.95 kg
Dimensions: 15mm width (Standard ET 200SP slice)
Engineering Software: STEP 7 TIA Portal V14 or higher / PCS 7 V8.1 SP1 or higher

Industrial Implementation

Automation engineers integrate the Siemens 6ES7132-6BH01-0BA0 into modular plant designs that require decentralized control. It excels in factory automation, packaging lines, and water treatment facilities where space is at a premium but reliability is non-negotiable. Because the module supports I&M (Identification & Maintenance) data from I&M0 to I&M3, maintenance teams can electronically retrieve serial numbers and hardware versions directly from the control desk, streamlining asset management across the entire production facility.
