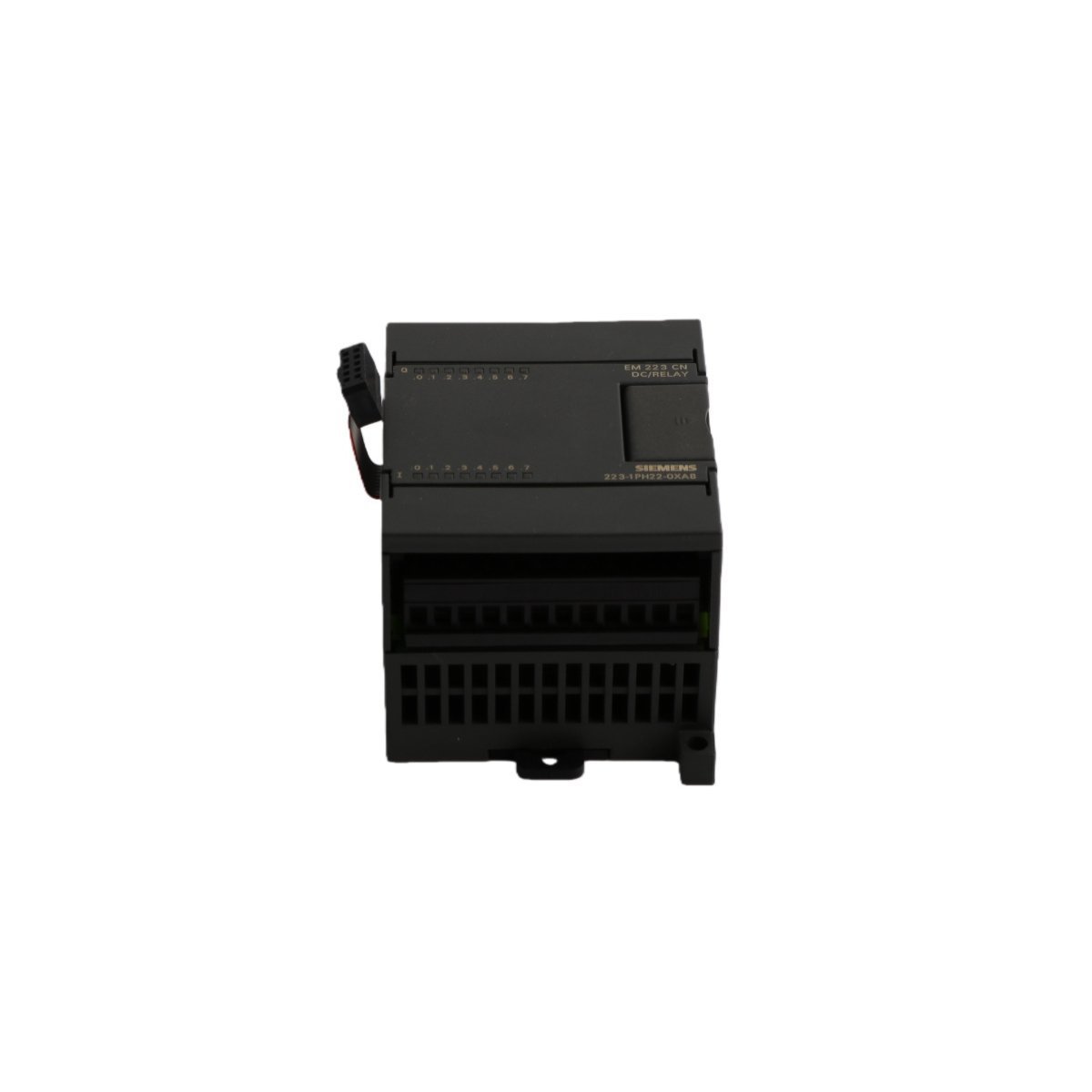

Siemens 6ES7223-1PH22-0XA8 Digital I/O Module

The Siemens 6ES7223-1PH22-0XA8 is a robust expansion unit designed for the SIMATIC S7-200 CN PLC range. This module effectively increases the point density of S7-22X series central processing units. It provides a balanced combination of digital inputs and relay outputs within a single hardware footprint. Consequently, engineers can scale their control systems without occupying excessive rail space. The unit facilitates seamless communication with the CPU to handle real-time automated tasks.

Furthermore, this expansion module excels in local control applications requiring diverse signal handling. It serves as a reliable interface between field sensors and industrial actuators. The hardware design prioritizes longevity and stable operation in standard factory environments. Because it belongs to the CN series, it specifically targets regional industrial standards with proven Siemens reliability. This module remains a cost-effective choice for upgrading existing legacy automation frameworks.

Technical Specifications and Equipment Data

Primary Functional Characteristics

Flexible Input Configuration

The module features eight digital input channels operating at a nominal 24V DC. These inputs support both sink and source wiring configurations. This versatility allows the PLC to interface with various sensor types. Consequently, installers can adapt the module to existing field wiring easily. High-speed signal detection ensures that the CPU receives data with minimal latency.

High-Current Relay Outputs

Eight integrated relay outputs provide robust switching capabilities for industrial loads. Each contact manages up to 2A of current. This capacity allows the module to drive solenoid valves and motor starters directly. Because these are mechanical relays, they support various voltage levels for different hardware. This eliminates the need for external interposing relays in many applications.

Compact and Efficient Design

The hardware utilizes a compact 71.2mm wide casing for space-efficient cabinet mounting. Its optimized internal circuitry limits power dissipation to just 3W. This efficiency prevents heat buildup in small enclosures. Furthermore, the modular snap-on design simplifies the installation process. Maintenance teams can access the terminal blocks easily for quick troubleshooting or wiring adjustments.

Industrial Compliance and Safety

The 6ES7223-1PH22-0XA8 carries full CE certification for industrial use. It meets stringent safety and environmental protection standards. Robust electrical isolation between the internal logic and external circuits enhances system stability. This protection prevents field-side electrical noise from disrupting the PLC core. Therefore, the module maintains high performance in electrically noisy environments.
