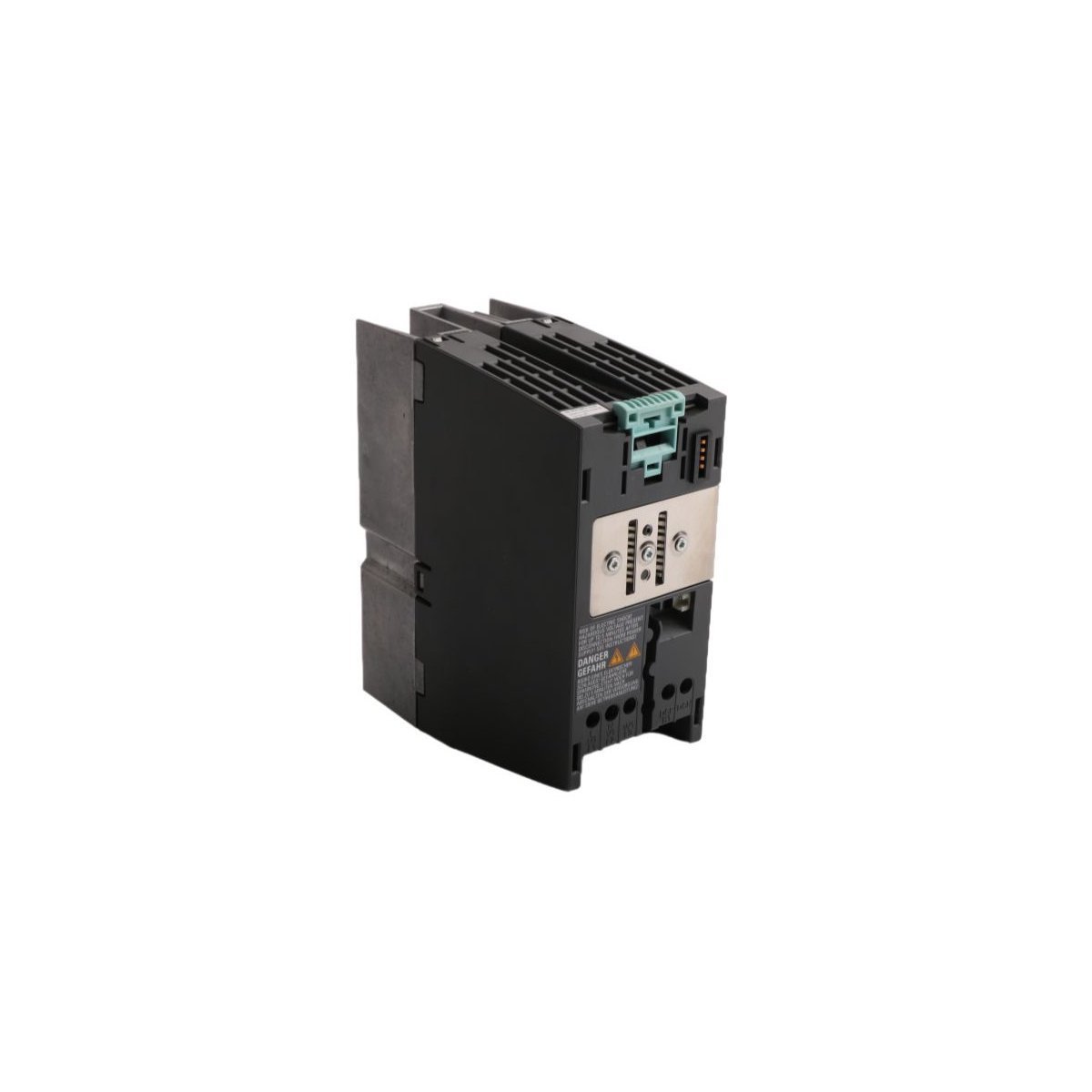

Siemens 6SL3224-0BE21-5UA0 PM240 Power Module

The Siemens 6SL3224-0BE21-5UA0 functions as a robust power conversion unit within the SINAMICS G120 drive family. This PM240 power module manages the electrical energy for AC induction motors in diverse industrial settings. It accepts a three-phase input voltage between 380V and 480V AC. Because it includes an integrated braking chopper, the unit handles regenerative energy during motor deceleration effectively. This capability allows for precise control over dynamic load changes. Furthermore, the module serves as the heavy-duty hardware foundation for the modular G120 inverter system.

Advanced Thermal and Overload Management

Engineers designed this module to withstand rigorous operational cycles. It delivers a rated power output of 1.5kW under high overload conditions. Specifically, the hardware supports a 200% surge for three seconds to facilitate heavy startups. An internal fan system provides active air cooling to maintain optimal operating temperatures. Consequently, the unit operates reliably in ambient environments up to 50°C. The IP20-rated housing ensures protection against solid objects while fitting into standard control cabinets. This thermal efficiency contributes to a longer service life for the internal electronics.

System Integration and Control Flexibility

This PM240 module requires a compatible Control Unit (CU) to perform automation tasks. It interfaces seamlessly with various CU models to support V/f, vector, and encoderless control modes. Because it generates low audible noise at 45dB, it improves the working environment near the machine. The module supports output frequencies reaching 550Hz for high-speed applications. Additionally, a power factor of 0.95 ensures high energy efficiency during continuous operation. Technicians find the compact footprint ideal for retrofitting existing drive panels or building new space-saving systems.

Primary Technical Specifications

Industrial Utility and Deployment

The SINAMICS G120 PM240 series excels in pump, fan, and compressor applications. It also provides the necessary torque for conveyor belts and processing machinery. While newer PM240-2 modules exist, this version remains vital for maintaining legacy infrastructure. Its proven track record in the field guarantees compatibility with established Siemens automation architectures. By choosing this power module, facilities maintain consistent motor performance and reduce unexpected downtime. It represents a balanced solution for both torque-heavy and high-precision speed control requirements.
