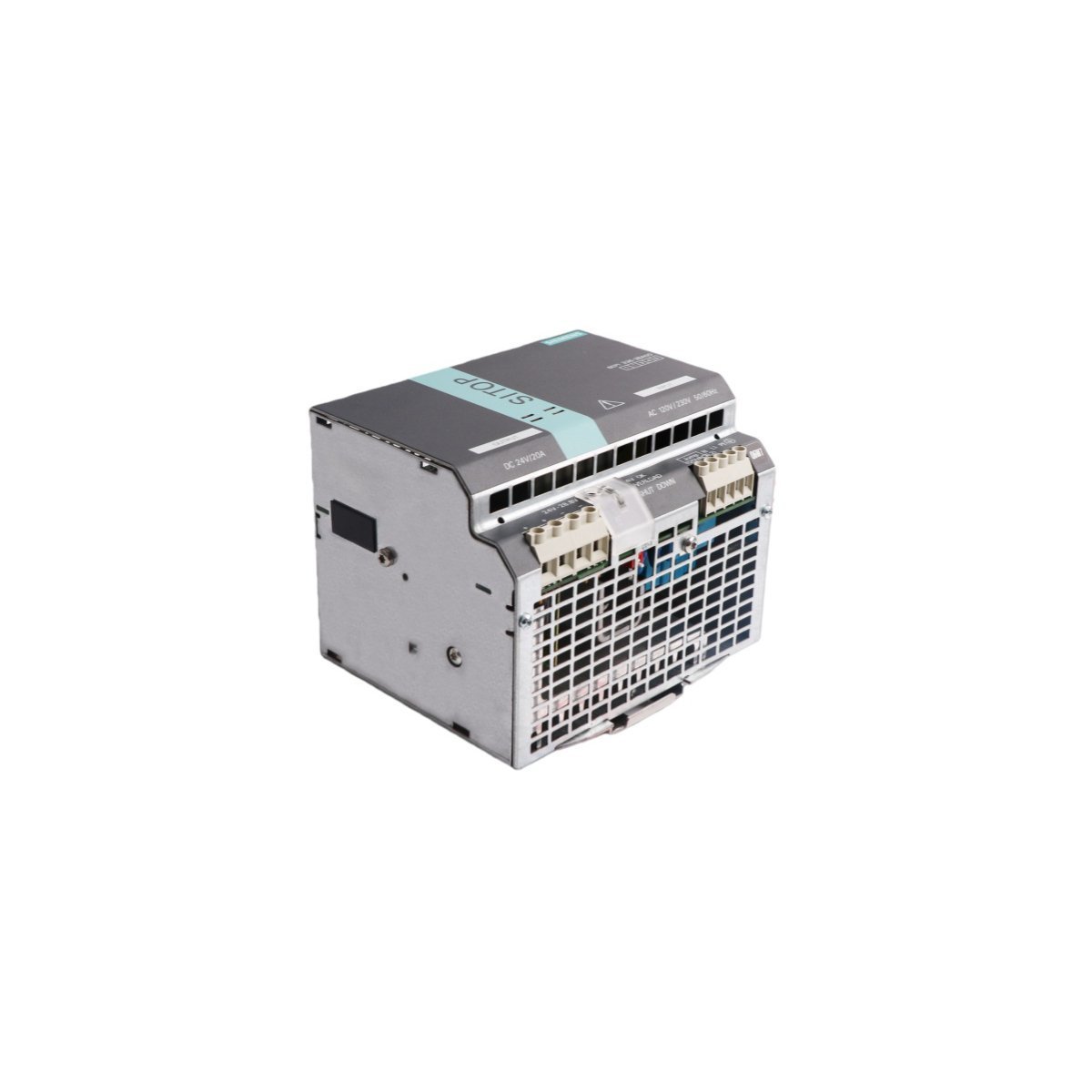

The Siemens 6EP1336-3BA00 is a 24V/20A SITOP PSU200M modular power supply. It features a wide-range input and Power Boost for handling high inrush currents.
The Siemens 6EP1336-3BA00 is a high-performance stabilized power supply unit from the SITOP modular family. It provides a consistent 24V DC output at 20 Amps for demanding industrial applications. This single-phase unit features a wide-range input of 120/230V AC for global compatibility. Consequently, engineers can implement this hardware in international projects without voltage conversion issues.
The device maintains operational stability during significant power grid fluctuations. Its metal housing ensures high durability in harsh manufacturing environments. Furthermore, the compact design saves critical space inside control cabinets. This power supply serves as a reliable foundation for sophisticated automation systems.
| Feature | Detailed Specification |
| Manufacturer | Siemens |
| Product Line | SITOP Modular PSU200M |
| Model Number | 6EP1336-3BA00 |
| Input Voltage | 120 V / 230 V AC (Auto-range) |
| Output Voltage | 24 V DC (Adjustable 24–28.8 V) |
| Output Current | 20 Amps |
| Efficiency | Approximately 93% |
| Weight | 1.20 kg |
| Origin | Germany |
The PSU200M includes a specialized Power Boost function for high-load situations. It delivers up to three times the rated current for short intervals. This feature successfully manages high inrush currents during motor startups. Therefore, the system avoids nuisance tripping and unnecessary production shutdowns.
Users can adjust how the unit reacts to prolonged electrical overloads. The module offers a choice between constant current or latching shutdown modes. This flexibility allows for precise alignment with specific plant safety protocols. As a result, the power supply protects sensitive downstream components effectively.
This power supply operates with a very high efficiency rating. High efficiency translates to lower energy consumption during daily operations. Moreover, it minimizes heat dissipation within the electrical enclosure. This thermal management extends the service life of surrounding electronic modules.
