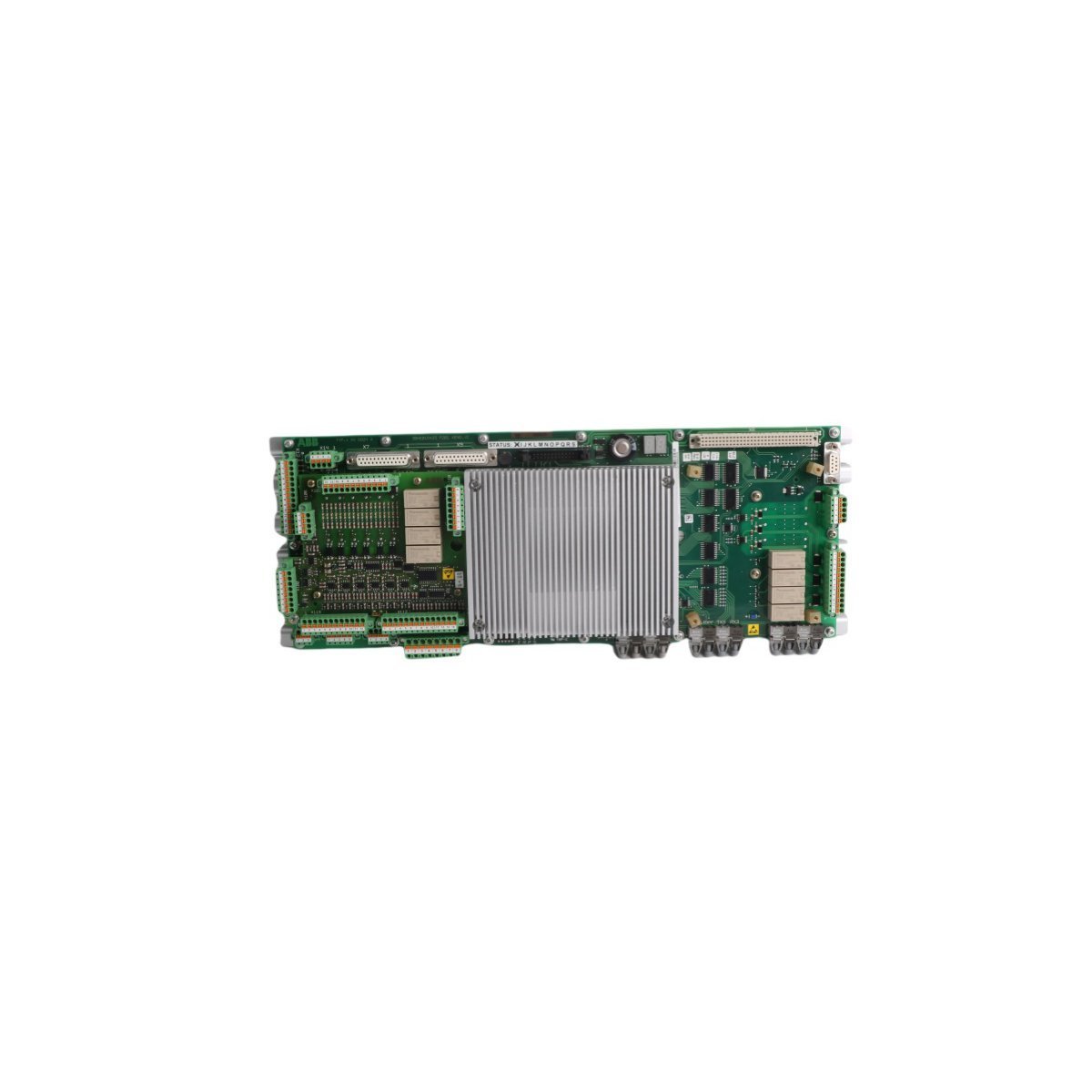

ABB 3BHE020570R1022 PPD114 B1022 Power Supply Module

The ABB PPD114 B1022 3BHE020570R1022 serves as a high-performance power supply module for the AC 800PEC controller series. This module provides stable DC power to critical processor components and I/O interface boards. Furthermore, it bridges the gap between high-speed power electronics and standard automation control logic. The unit excels in applications requiring rapid regulation and high computational throughput. Consequently, it supports demanding power conversion tasks and large-scale industrial drives.

Operational Features and System Integration

This power supply module utilizes advanced control algorithms to maximize energy efficiency during operation. It features a rugged mechanical design to withstand vibration and electromagnetic interference. Because the unit carries an IP54 rating, it resists dust ingress and moisture effectively. This resilience ensures a long service life within harsh manufacturing or energy plant environments. Integrated self-diagnostic tools allow the module to monitor its internal health in real-time.

The PPD114 B1022 incorporates modern communication protocols for seamless data exchange. It supports Ethernet and Modbus TCP/IP interfaces for high-level system networking. These connections allow the module to report status data directly to the central DCS or PLC. Moreover, the hardware complies with global safety standards including CE, UL, and CSA. ISO 9001 certification further guarantees that every unit meets strict quality control benchmarks. This combination of connectivity and reliability simplifies the management of complex power electronic systems.

Primary Industrial Applications

Engineers typically deploy the 3BHE020570R1022 in high-power excitation systems and wind turbine converters. It also manages power distribution for large-scale electrolysis plants and metal processing facilities. Additionally, the module supports traction converters in railway infrastructure. Its high-speed processing capabilities make it ideal for any application involving fast switching frequencies. The module remains a cornerstone for maintaining stability in advanced power conversion networks.

Module Specifications
