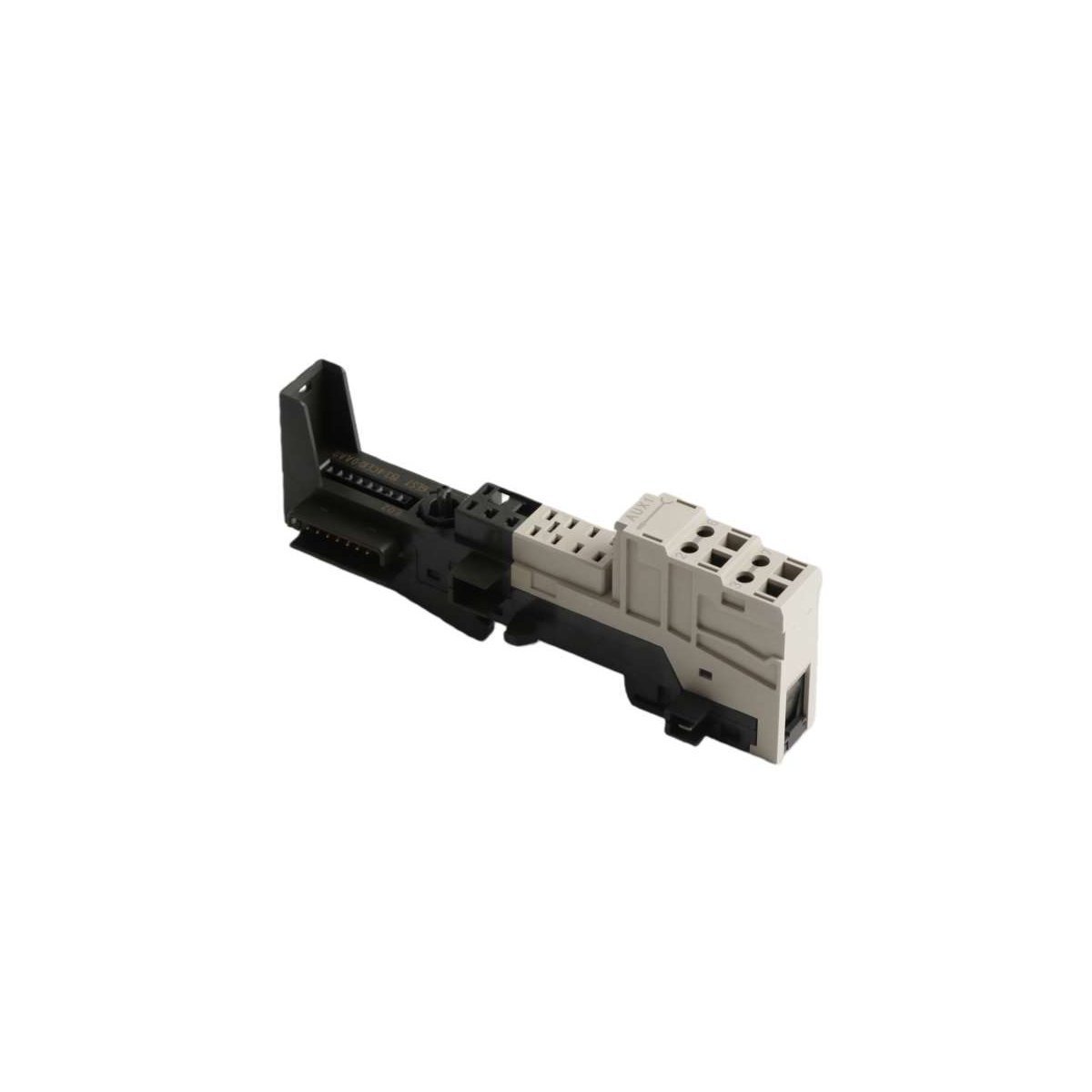

Siemens SIMATIC ET 200S Terminal Block 6ES7193-4CE10-0AA0 for Power Modules

Product Overview

The Siemens 6ES7193-4CE10-0AA0 serves as a fundamental connection component for the SIMATIC ET 200S distributed I/O system. Specifically engineered as a TM-P15C22-01 terminal module, this unit facilitates the mechanical mounting and electrical wiring of power modules. It establishes the necessary permanent wiring for the system, allowing users to replace electronic modules during operation through “hot swapping” without disturbing the terminal connections.

By utilizing this terminal block, engineers can create potential groups and manage power distribution across the backplane bus. The module features a compact design that optimizes rail space while providing high-density connectivity for industrial automation environments.

Technical Characteristics

• Brand: Siemens
• Series: SIMATIC ET 200S
• Order Number: 6ES7193-4CE10-0AA0
• Module Type: TM-P15C22-01 Terminal Module
• Wiring Method: Spring-loaded (Push-in) terminals for rapid, tool-free installation
• Connection Points: 2×2 terminals with access to the AUX1 bus
• Physical Dimensions: 15mm width x 132mm height x 43mm depth
• Weight:  0.065 kg
• Voltage Rating: Supports up to 24V DC power module requirements
• Mounting: Standard DIN rail installation

Functional Benefits and Application

Industrial control systems utilize the 6ES7193-4CE10-0AA0 to streamline the distribution of load voltage. Because the terminal block employs spring-loaded technology, it maintains consistent contact pressure, which significantly reduces the risk of loose connections caused by machinery vibration.

Furthermore, this terminal module includes an integrated AUX1 bus, which allows for the flexible configuration of auxiliary voltage potentials. Transitioning between different power groups becomes straightforward, as the terminal block manages the internal self-assembling voltage buses. This functionality proves essential in complex PLC configurations where isolated power zones are required for safety or signal integrity.
