SKU: 6DS1603-8BA

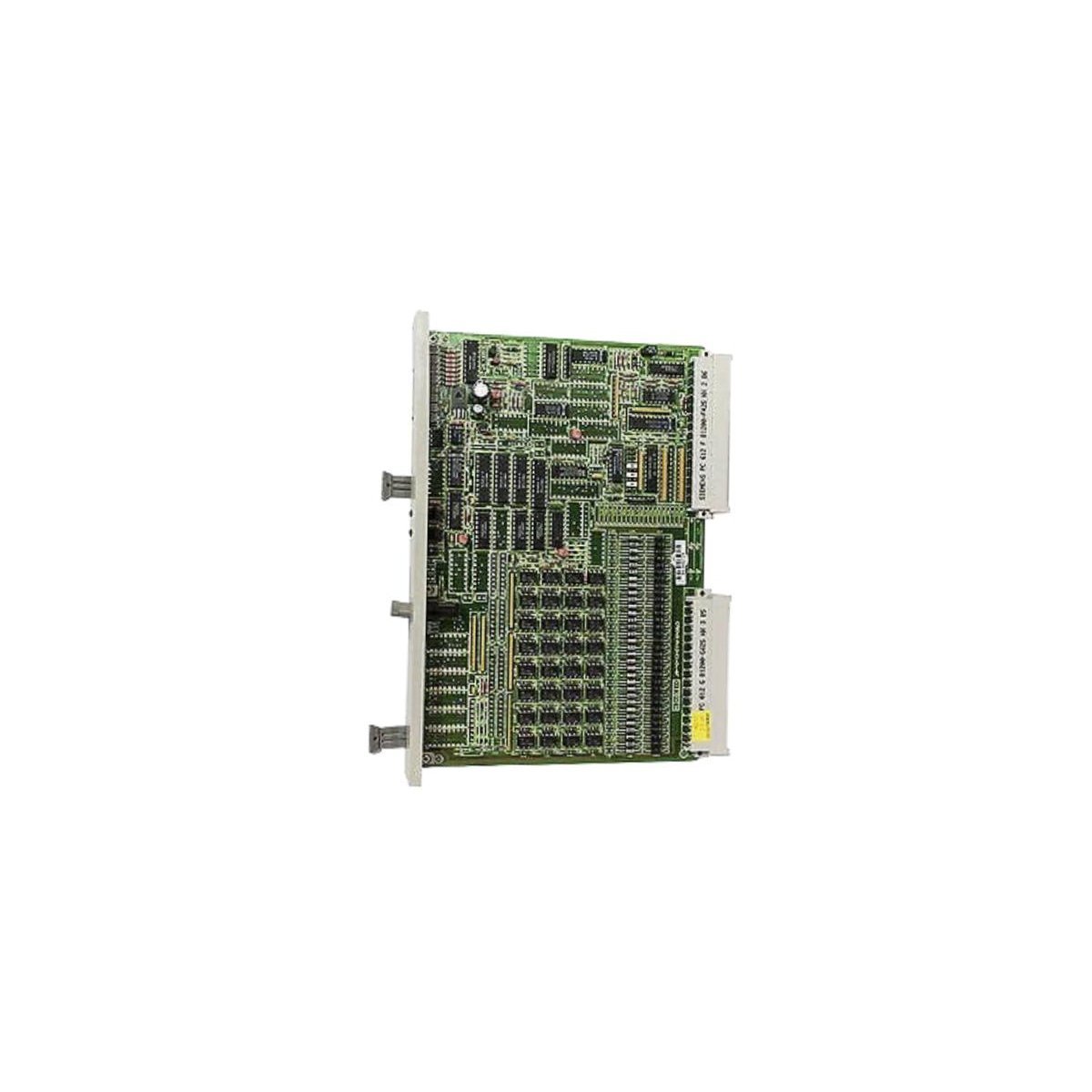

Siemens SIMATIC S5 6DS1603-8BA Digital Output Module

The Siemens 6DS1603-8BA is a professional digital output module designed for SIMATIC S5 and TELEPERM M systems. Providing reliable 24V DC switching and integrated galvanic isolation, it offers a robust solution for controlling actuators and solenoids in high-availability industrial environments.

Functional Overview

The Siemens 6DS1603-8BA serves as a discrete output interface for the SIMATIC S5 and TELEPERM M automation systems. This module actively translates internal logic commands from the controller into high-power electrical signals required to actuate field equipment. By providing reliable switching for solenoids, contactors, and industrial indicators, the unit ensures precise control over mechanical processes. Its robust construction reflects the demanding standards of legacy power plant and process control architectures where system stability is paramount.

Output Characteristics and Load Management

This module is designed to handle multiple digital loads simultaneously while maintaining electrical isolation from the sensitive CPU backplane. Key performance features include:

Output Configuration: Multiple discrete channels designed for 24V DC switching.
Switching Capacity: Capable of driving standard inductive and resistive loads typical of industrial actuators.
Galvanic Isolation: Utilizes optocouplers to provide a secure barrier between the internal bus and field wiring, protecting the system against voltage spikes.
Status Monitoring: Integrates front-panel LED indicators that provide immediate visual feedback on the state of each output channel.

System Integration and Architecture

The 6DS1603-8BA occupies a standard slot within the SIMATIC S5-135U or S5-155U subracks, as well as TELEPERM M racks. It simplifies complex system maintenance through:

Plug-and-Play Compatibility: Uses standard Siemens backplane connectors for rapid installation and module replacement.
Addressing: Configurable via base address settings on the rack, allowing for flexible integration into existing I/O maps.
Thermal Management: Engineered with a passive cooling design that ensures reliable operation within enclosed control cabinets.
Signal Integrity: Employs filtered output stages to prevent accidental triggering caused by electromagnetic noise on the field lines.

Industrial Applications and Longevity

Because it was built for the high-availability requirements of the TELEPERM M and S5 platforms, this module remains a critical component in many long-term infrastructure projects. It is frequently found in:
