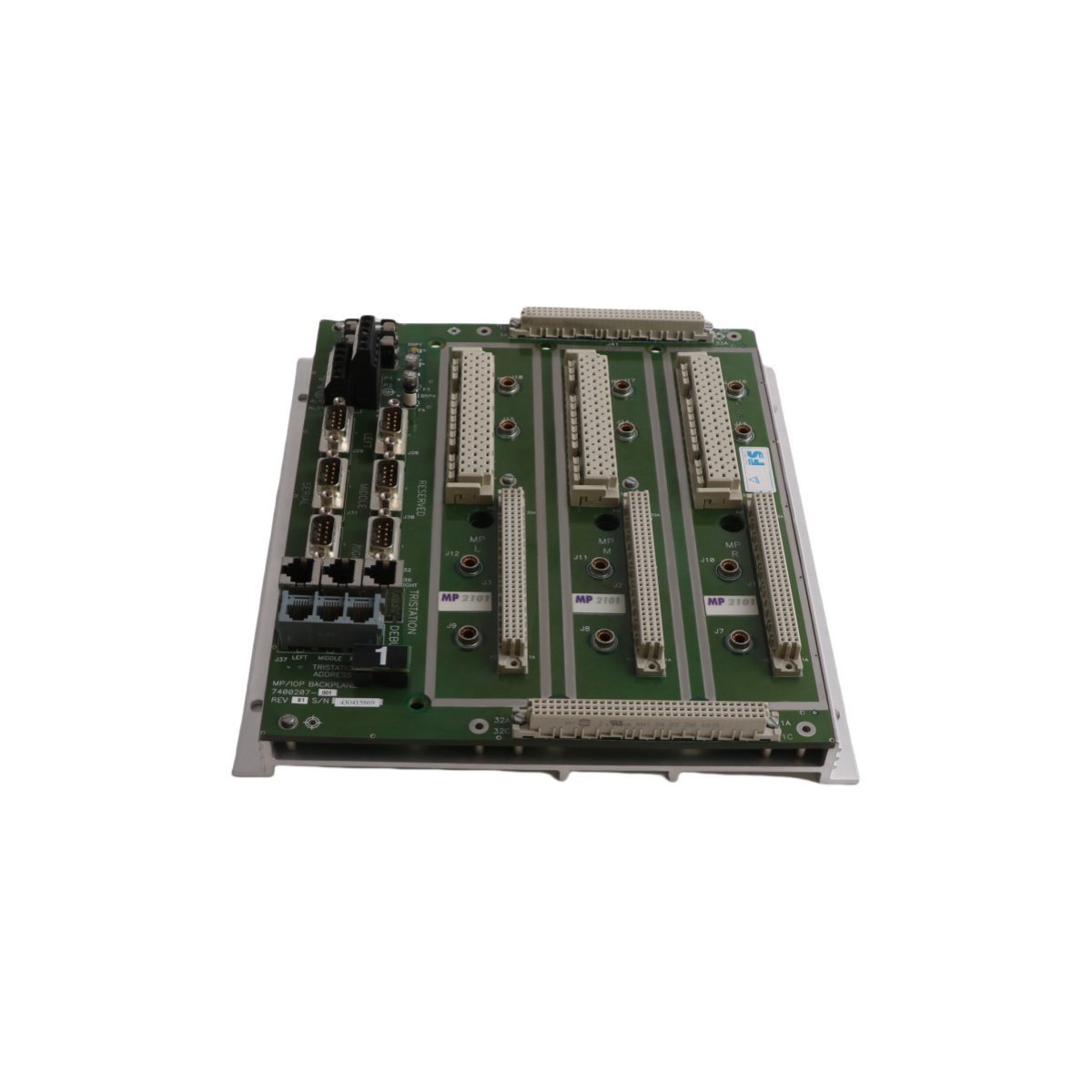

The Triconex 7400207-001 (MP2101) is a SIL 3 certified Main Processor Baseplate designed for TMR safety systems. It provides the essential infrastructure for triple-redundant logic execution and hot-swappable module support in critical industrial environments like oil, gas, and power generation.
The Triconex 7400207-001, also identified by model MP2101, serves as the foundational structural component for the Tricon Triple Modular Redundancy (TMR) system. This baseplate provides the physical and electrical interface required to host the main processor modules. It enables high-speed communication across three isolated backplane channels.
Industrial facilities utilize this hardware to maintain Fault-Tolerant control in Safety Instrumented Systems (SIS). The design supports Tricon versions 9 through 11. It ensures that the system meets SIL 3 requirements for critical process protection.
| Feature | Details |
| Manufacturer | Schneider Electric (Triconex) |
| Model Number | MP2101 |
| Part Number | 7400207-001 |
| System Architecture | Triple Modular Redundancy (TMR) |
| Clock Speed | 50 MHz |
| Memory Capacity | 16 MB DRAM |
| Processor Sync Rate | Up to 15ms |
| Safety Integrity Level | SIL 3 Capable |
| Operating Temperature | -20°C to +70°C |
| Weight | 1.3 kg |
| Dimensions | 24.7 x 23.0 x 6.0 cm |
The MP2101 baseplate facilitates 2-out-of-3 (2oo3) voting logic. This architecture eliminates single points of failure during operation. Each channel operates independently to monitor and execute safety logic solvers.
Maintenance teams can perform hot-swappable module replacements on this baseplate. This capability prevents system downtime during hardware upgrades or repairs. Built-in diagnostics constantly track the integrity of the internal bus and connected modules.
