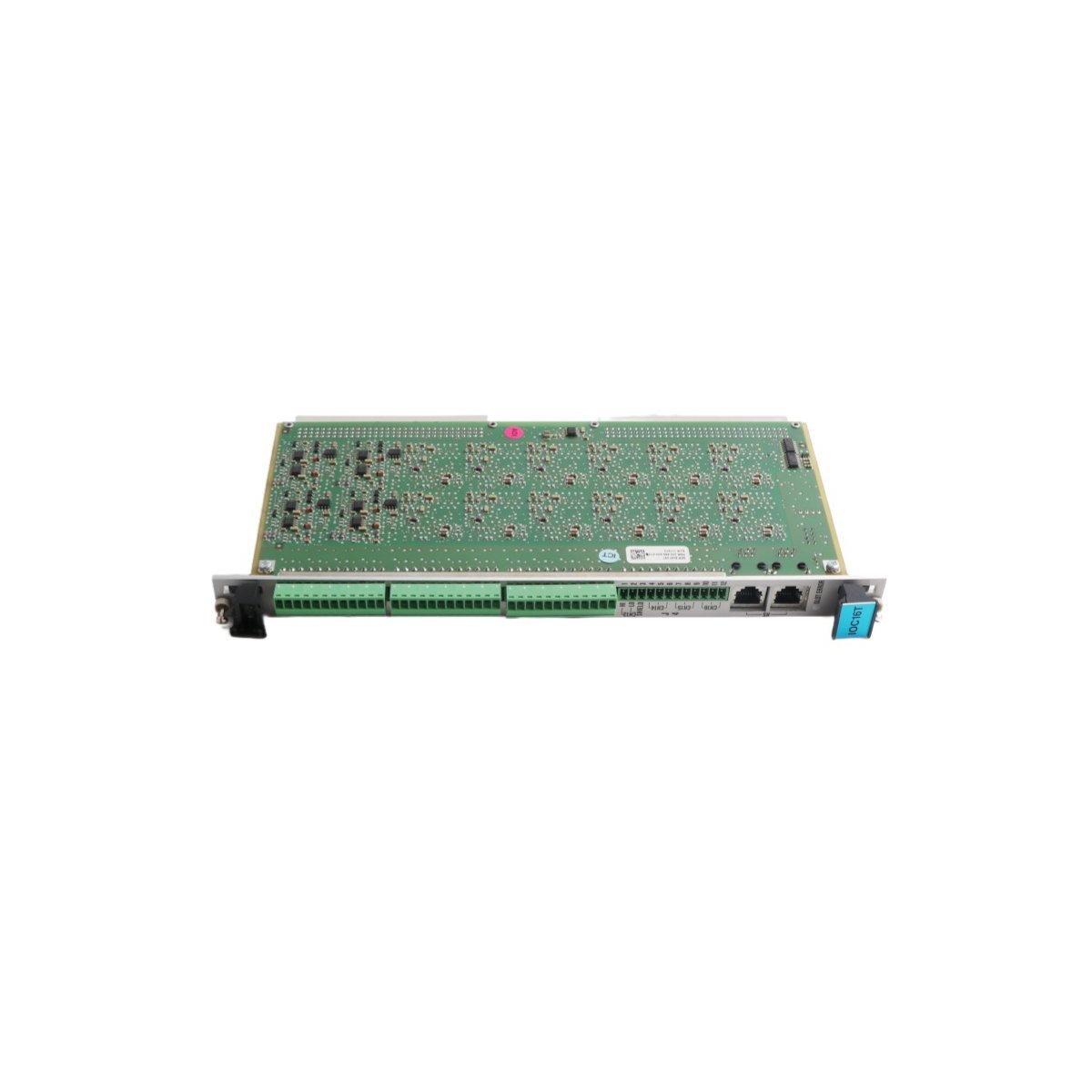

VIBRO-METER VM600 IOC16T 200-565-000-013 Input/Output Card

The Vibro-Meter IOC16T 200-565-000-013 functions as the dedicated input/output interface for the MPC4 protection card. Users install this module at the rear of the VM600 rack. It establishes a direct link to the backplane via dual high-density connectors. Specifically, the card utilizes an Industry Pack (IP) interface to communicate with the MPC4. This slave-mode operation ensures synchronized data exchange for machinery monitoring tasks. Consequently, it provides a secure bridge between field sensors and processing electronics.

Signal Conditioning and Output

This module effectively processes raw dynamic vibration and speed signals from industrial sensors. Four onboard digital-to-analog converters transform these signals into standardized 0–10 V voltage outputs. Furthermore, the card features integrated voltage-to-current converters for 4–20 mA loop integration. Technicians can select these output ranges using onboard jumpers. This flexibility allows for seamless connection to various DCS or PLC systems. Additionally, the screw-terminal connectors facilitate secure field wiring while maintaining signal integrity.

Alarm Management and Protection

The IOC16T 200-565-000-013 provides robust alarm signaling capabilities for critical assets. It includes four local relays for immediate hardware-based alarm responses. Beyond local switching, the card transmits 32 digital alarm signals to the rack backplane. This architecture allows for advanced logic processing by optional RLC16 relay cards. The design strictly adheres to EMC standards to prevent electromagnetic interference. Therefore, it ensures dependable operation even in electrically noisy industrial environments.

Industrial Implementation

Plant engineers typically deploy this I/O card in mission-critical protection loops. It supports the monitoring of large rotating machinery in power plants and refineries. Because it handles both raw data and processed alarms, it remains vital for asset safety. The compact 6U form factor allows for high-density installation within standard 19-inch racks. Its reliability makes it a preferred choice for API 670 compliant monitoring systems worldwide.

Technical Performance Data
