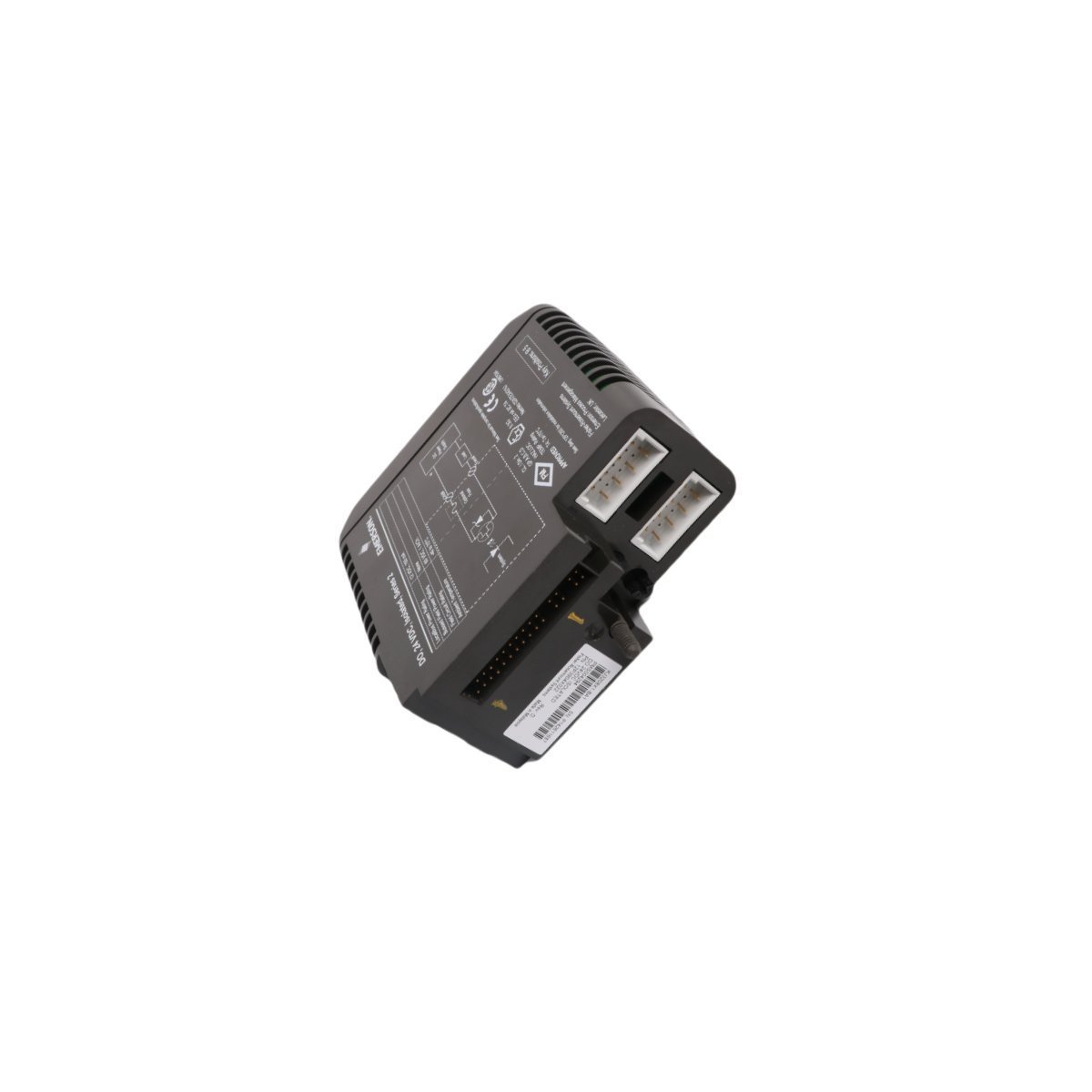

Emerson DeltaV KJ3208X1-BA1 12P3904X022 VE4002S1T1B1 Discrete Input Card

Operational Function and Logic

The Emerson KJ3208X1-BA1 serves as a high-density digital interface within the DeltaV Distributed Control System (DCS). By monitoring 32 independent discrete channels, the module actively captures the binary status of field devices such as limit switches, pushbuttons, and auxiliary contacts. Once the field contacts change state, the card converts these electrical signals into digital data packets for the DeltaV controller to process. Because it utilizes a 24V DC dry contact logic, it provides a standardized and reliable method for tracking thousands of machine states across a large-scale industrial plant.

Performance Enhancements and Safety Features

• Optimizes Cabinet Space Efficiency: The module consolidates 32 channels into a single high-density slot. In doing so, it allows for the integration of a vast number of digital inputs within a compact footprint, effectively reducing the overall size of the marshalling cabinets.
• Ensures Real-Time Signal Accuracy: The card incorporates advanced digital filtering and debounce logic on every input. As a result, it actively eliminates signal “chatter” and electromagnetic noise, ensuring that the DCS logic only reacts to genuine process changes.
• Simplifies Maintenance Diagnostics: By leveraging integrated status LEDs for every channel, the KJ3208X1-BA1 provides immediate visual confirmation of field circuit states. Consequently, maintenance technicians can identify faulty field sensors or broken wires at a glance without using external testing equipment.
• Protects System Continuity: The hardware supports “Hot-Swappable” replacement while the system is under power. Therefore, should a module need service, you can replace it without interrupting the operation of other cards on the same I/O carrier, maintaining maximum process uptime.
• Enhances Hardware Resilience: Finally, the module features a ruggedized design that complies with ISA-S71.04 Class G3 environmental standards. By providing this chemical resistance, the card prevents the premature failure of electronic components in facilities with high concentrations of corrosive sulfur or chlorine gases.

Technical Specifications

• Brand: Emerson (DeltaV)
• Model Code: KJ3208X1-BA1
• Part Number: 12P3904X022
• Series Identifier: VE4002S1T1B1
• Input Type: 32-Channel Discrete Input (Dry Contact)
• Nominal Signal Voltage: 24 V DC
• Input Current: 5 mA at 24 V DC (Typical per channel)
• Detection Threshold: 14 V DC (ON) / 8 V DC (OFF)
• Isolation: 1500 V DC between field and logic
• LocalBus Current: 100 mA (Maximum)
• Operating Temperature: -40 °C to +70 °C
• Environmental Rating: G3 Harsh Environment (Corrosion Resistant)
• Mounting: Traditional M-Series I/O Carrier
