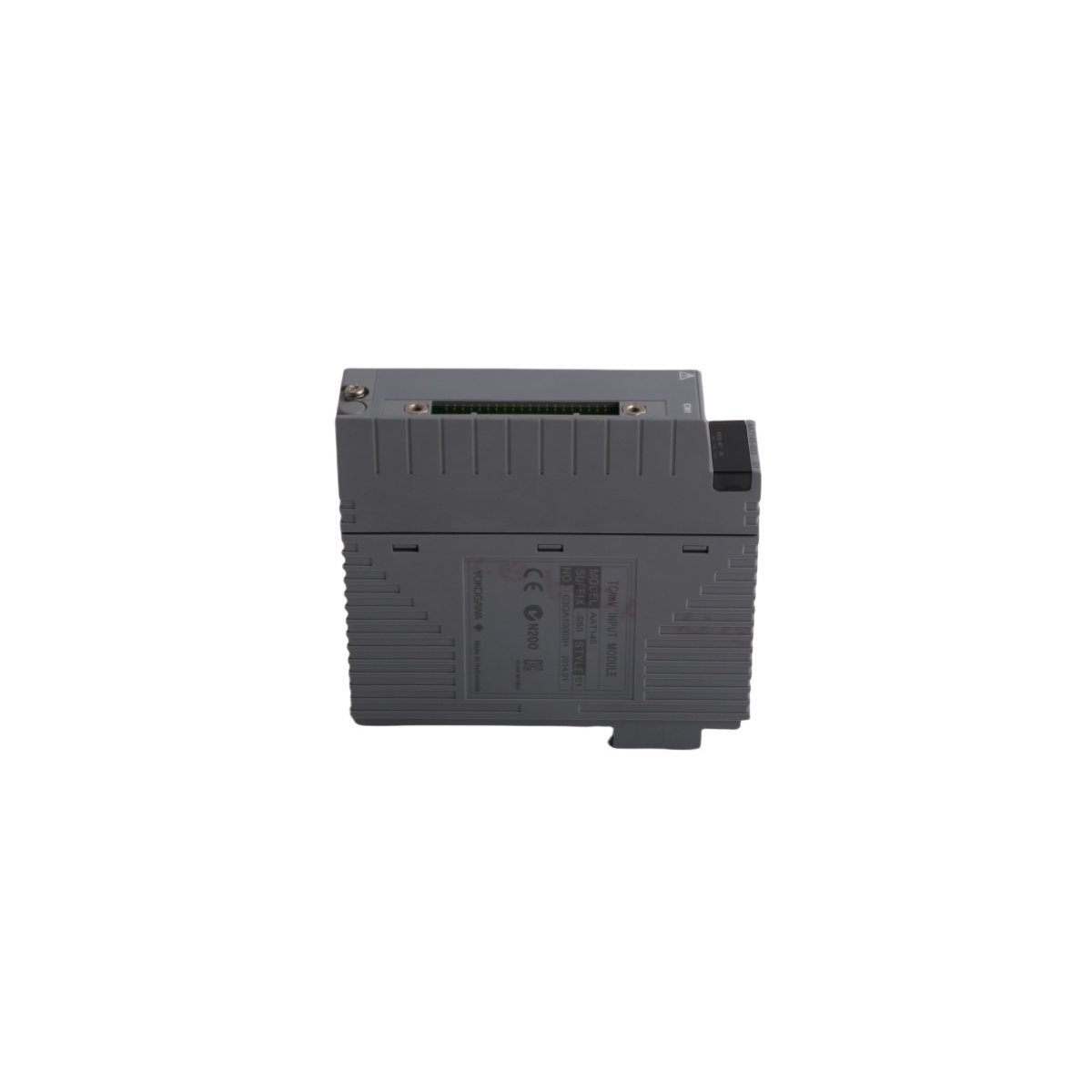

Yokogawa AAT145-S53 S1 CENTUM VP TC/mV Input Module

Technical Product Overview

The Yokogawa AAT145-S53 S1 serves as a high-precision analog input interface designed for the CENTUM VP and CENTUM CS 3000 control systems. This 16-channel module specializes in capturing low-voltage signals from thermocouples (TC) and millivolt (mV) transducers. By integrating advanced signal conditioning and high-resolution analog-to-digital conversion, the AAT145-S53 S1 allows the Field Control Station (FCS) to monitor critical temperature variations with exceptional accuracy. The “S1” hardware revision ensures compliance with modern industrial standards, providing a stable platform for long-term process monitoring in hazardous and sensitive environments.

Operational Characteristics and Thermal Precision

This module prioritizes data integrity through its isolated channel architecture and sophisticated noise-rejection filters. Because temperature sensing in industrial plants often involves high levels of electromagnetic interference, the AAT145-S53 S1 utilizes differential inputs to maintain signal purity. It supports a wide range of standard thermocouple types and provides integrated cold-junction compensation to ensure measurement consistency across varying ambient temperatures. Furthermore, the module features proactive burnout detection; if a thermocouple wire breaks, the system immediately identifies the fault and triggers a pre-defined safety state, preventing control errors based on stale or missing data.

Comprehensive Technical Specifications

• Manufacturer: Yokogawa Electric Corporation
• Model Number: AAT145-S53 S1
• Product Series: CENTUM VP / CS 3000
• Module Type: Thermocouple / mV Input Module
• Number of Channels: 16 Isolated Channels
• Input Signal Types: Thermocouple (Types J, K, E, T, R, S, B, N) or Millivolt (-100 to +150 mV)
• Measurement Accuracy: Dependent on TC type (e.g., ±1.0°C for Type K)
• A/D Conversion Resolution: 16-bit
• Isolation Voltage: 1500V AC between field and internal system bus
• Redundancy: Supports dual-redundant configuration for high-availability loops
• Power Consumption: 2.5W typical
• Connection Interface: Uses pressure clamp terminal blocks or KS-cable connection

Strategic Industrial Applications

Engineers utilize the AAT145-S53 S1 in thermal management scenarios where precise regulation directly impacts product quality and plant safety. Consequently, the module is vital for the following applications:

• Distillation Column Monitoring: Tracks the temperature profile across various stages of a refinery tower to optimize fuel separation.
• Glass and Ceramic Kilns: Manages high-temperature feedback required for precise firing and curing processes.
• Biotechnology Fermentation: Provides the high-resolution data necessary to maintain strict thermal limits for microbial growth.
• Boiler and Turbine Protection: Monitors bearing temperatures and exhaust gas levels to prevent mechanical failure in power generation assets.
