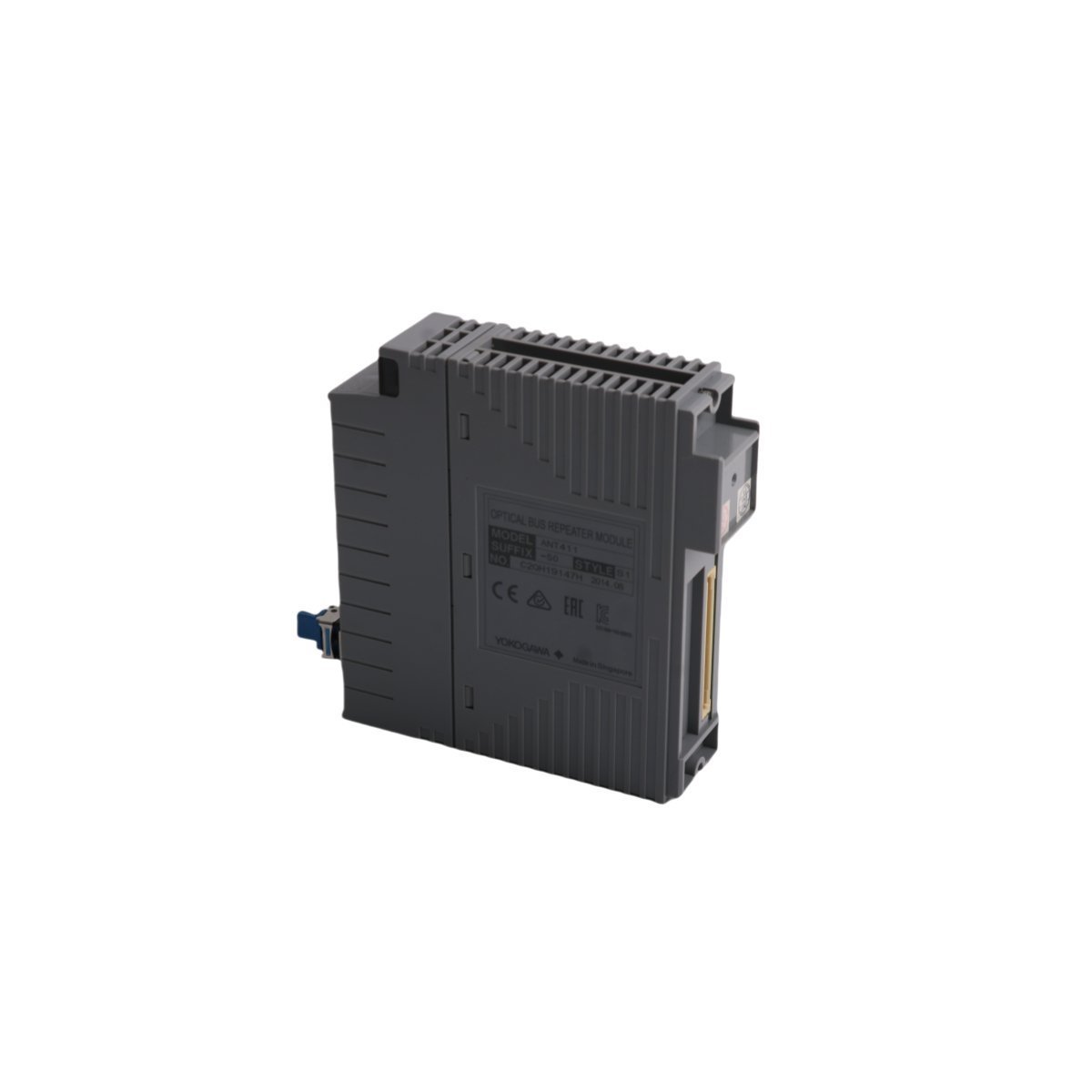

Yokogawa ANT411-50 S1 Optical ESB Bus Repeater Master Module

The Yokogawa ANT411-50 S1 is an optical ESB bus repeater master module for CENTUM VP. It enables high-speed, EMI-immune communication between control stations and remote I/O over distances up to 5km, supporting full redundancy for mission-critical DCS networks.

Product Description

The Yokogawa ANT411-50 S1 serves as a high-performance optical communication link for the CENTUM VP Distributed Control System (DCS). This master-side repeater module extends the reach of the ESB (Enhanced Service Bus) by converting electrical signals into high-speed optical data, allowing the Field Control Station (FCS) to communicate with remote I/O nodes over long distances. By utilizing fiber optic technology, the module effectively bypasses the distance limitations of copper cabling while providing total immunity to electromagnetic interference (EMI).

Engineers utilize the ANT411-50 S1 to create a reliable bridge between the central controller and expansion racks located in separate buildings or hazardous areas. The module transmits data over distances up to 5 kilometers, ensuring that remote process variables reach the control room with minimal latency. Furthermore, the unit supports a redundant configuration, where two modules work in parallel to guarantee continuous communication. If one optical link fails, the secondary module assumes the data load instantaneously, preventing any loss of control or process visibility.

Consequently, the ANT411-50 S1 represents a critical infrastructure component for large-scale industrial facilities like refineries, LNG terminals, and offshore platforms. It maintains the deterministic performance required for complex control loops while simplifying the physical network architecture. Through its integrated diagnostic LEDs and system-level monitoring, maintenance teams can quickly verify link status and signal strength, ensuring maximum uptime for the entire distributed network.

Key Technical Characteristics

Manufacturer: Yokogawa
Model Series: CENTUM VP / FIO
Module Function: Optical ESB Bus Repeater (Master Side)
Transmission Medium: Fiber Optic Cable (Multi-mode or Single-mode depending on configuration)
Maximum Distance: Up to 5 km (3.1 miles) between nodes
Transmission Speed: 128 Mbps (High-speed ESB bus throughput)
Connection Port: 1 x Optical Port (typically used with LC or SC connectors)
Redundancy: Supports dual-redundant bus architecture
Status Diagnostics: Dedicated LEDs for Frame Receive (FRV) and Signal Status (SST)
Power Consumption: 500 mA maximum at 5 V DC
Installation: Plugs directly into the ESB Bus slot of a Field Control Unit (FCU)
Operating Temperature: -20 °C to +70 °C
