SKU: 3BSE011789R1 PXAK402

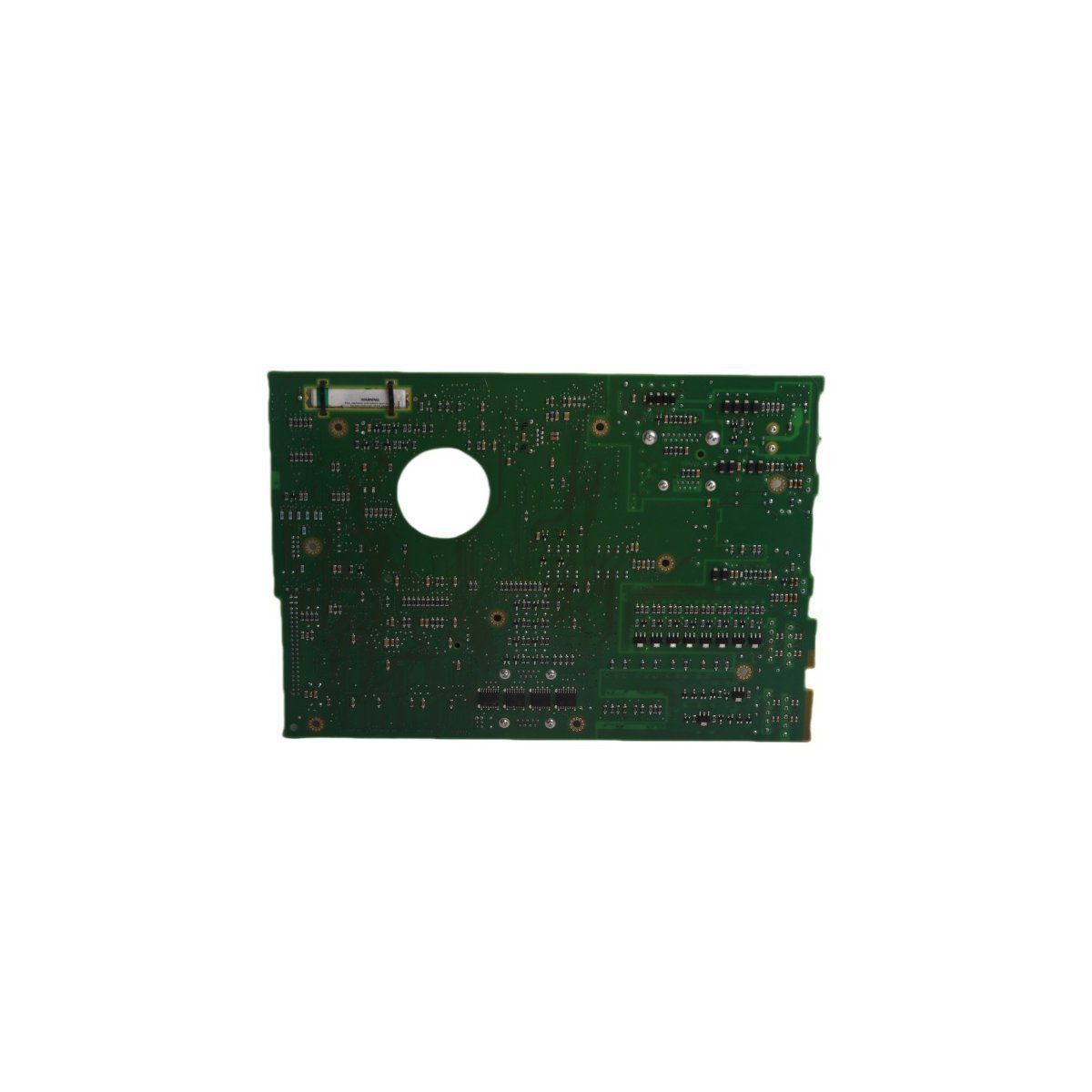

ABB 3BSE011789R1 PXAK402 UNITROL Excitation Systems

The ABB 3BSE011789R1 PXAK402 is a premium excitation control module designed for UNITROL regulation systems. It provides robust processing, deterministic backplane communications, and real-time diagnostics. Brand New condition, original stock with global shipping. Contact us for technical support and procurement.

The ABB 3BSE011789R1 PXAK402, also cataloged as the 3BSE011789R1 Control Module, serves as the primary PXAK402 Control Module utilized to execute synchronous generator excitation and field voltage regulation across UNITROL Excitation Systems platforms. The hardware processes high-speed regulation loop equations, interacting with power rectifiers and measurement inputs to modify the rotor field current of large synchronous machines. This control board interfaces directly with internal system buses and network routers to sustain deterministic real-time communication within the broader DCS infrastructure.

Hardware Specifications

Parameter	Specification
Model	3BSE011789R1 PXAK402
Brand	ABB
Origin	SWEDEN
Weight	0.38 kg
Dimensions	29 x 20.1 x 2.5 cm
Operating Temp	0 to 55 deg C
Power Consumption	System internal backplane bus distribution
Module Type	Control Module (Excitation Regulation)
System Platform	UNITROL Excitation Systems / DCS Network
Communication Service	Integrated bus / Ethernet router bridging
HS Code	8537101190

Industrial Control & Backplane Bus Characteristics

Operating inside the high-demand UNITROL architecture, the module utilizing distinct backplane bus communication velocity Licences enforces synchronized clock cycles to eliminate timing jitter in control loops. High-density firmware execution blocks manage I/O density scaling profiles, allowing simultaneous computation of automatic voltage regulation (AVR), manual field current regulation (FCR), and power factor modes. The high-performance logic chip accommodates complex firmware flash compatibility matrices, allowing integration into multiple generations of generator control configurations without causing downstream deterministic signal latency.

Frequently Asked Questions

Q: How are firmware flash compatibility updates handled on the 3BSE011789R1 PXAK402 control module?

A: Firmware flash downloads must be performed using approved system tools while the synchronous generator is completely offline, ensuring execution parameters match the existing system baseline.

Q: Does the PXAK402 control module support online module replacement during live excitation conditions?

A: No. In non-redundant configurations, extraction of the module breaks the processing bus loop and collapses the field excitation. Replacement requires a complete system shutdown.

Q: What function does the internal Ethernet router service fulfill within this module assembly?

A: The service enables upper-level DCS visualization platforms to read high-resolution diagnostic arrays, fault logs, and real-time controller loop state variables without impeding the primary regulation loop.

Field Installation Guidelines

Electrostatic Discharge (ESD) Prevention: This module contains high-density CMOS components. Personnel must wear a calibrated grounding wrist strap before removing the board from its protective anti-static packaging.
Chassis Slot Seating: Align the module carefully with the plastic PCB guides within the UNITROL rack assembly. Slide the card horizontally until the multi-pin backplane connectors seat fully.
Fiber Optic and Communication Connections: Observe minimum bend radius limitations for all linked communication lines; sharp bends cause data packet attenuation and bus timeouts.
Earthing and Gland Integrity: Ensure the metallic faceplate screws are completely tightened into the sub-rack frame to guarantee a continuous low-impedance path to cabinet earth for structural noise diversion.
