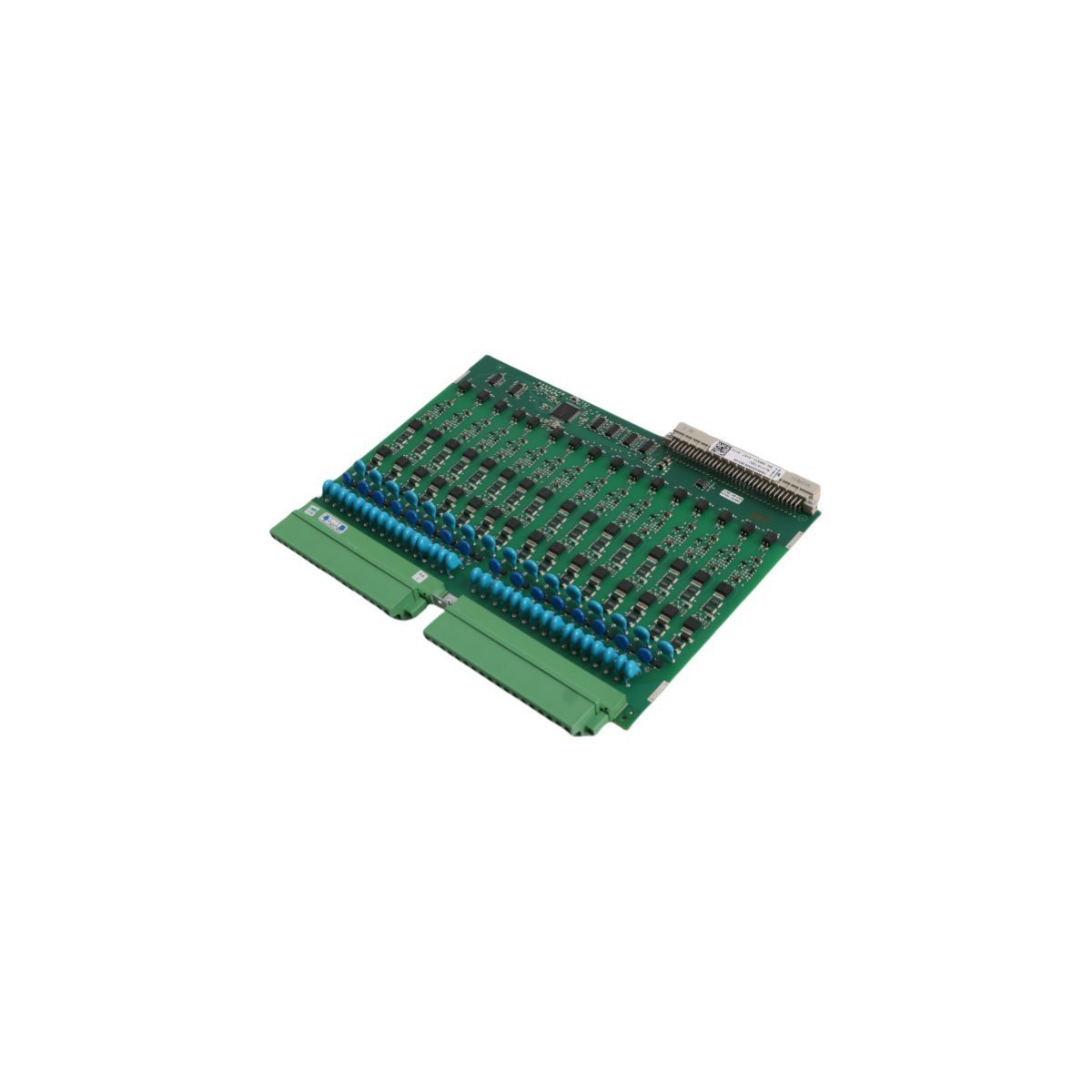

ABB 1MRK000508-BDR04 Advanced PC Processing Board for Control Systems

The ABB 1MRK000508-BDR04 is a high-performance Advanced PC Board designed for substation protection and control systems. It offers high-speed processing, robust EMI protection, and advanced diagnostics to ensure maximum reliability in DCS and power grid applications.

Request a Quote

Product Description

The ABB 1MRK000508-BDR04 represents a high-tier Advanced PC Board engineered to provide the core computational power for ABB’s specialized protection and control assemblies. This module operates as a centralized processing unit that executes complex logic algorithms and manages data traffic between various I/O peripherals and communication ports. By integrating this board into a system, engineers gain the high-speed data handling required for real-time monitoring of power grid stability.

Performance and stability define the architecture of this hardware. ABB utilizes industrial-grade semiconductors that withstand the electromagnetic interference typically found in high-voltage substations. Furthermore, the board features specialized onboard diagnostics that continuously verify hardware health. If a fault occurs, the module identifies the error immediately, which allows maintenance teams to resolve issues before they escalate into system-wide failures.

Regarding connectivity, the 1MRK000508-BDR04 supports high-bandwidth communication bus interfaces. This capability ensures that the module can process massive amounts of telemetry data without encountering latency bottlenecks. Additionally, the board includes a robust power management circuit that protects sensitive components against voltage fluctuations. Consequently, this design choice guarantees consistent uptime and maximizes the operational lifespan of the entire control rack.

Technical Characteristics

  • Manufacturer: ABB
  • Part Number: 1MRK000508-BDR04
  • Component Category: Advanced PC Board / Main Processing Unit
  • System Application: Protection and Control Systems (e.g., REL / REC series)
  • Data Processing: High-speed real-time logic execution
  • Thermal Management: Passive cooling optimized for rack enclosures
  • Interface Support: High-speed internal bus connectivity
  • Build Standard: Industrial-grade PCB with vibration resistance
  • Operational Status: Active / Current production model
