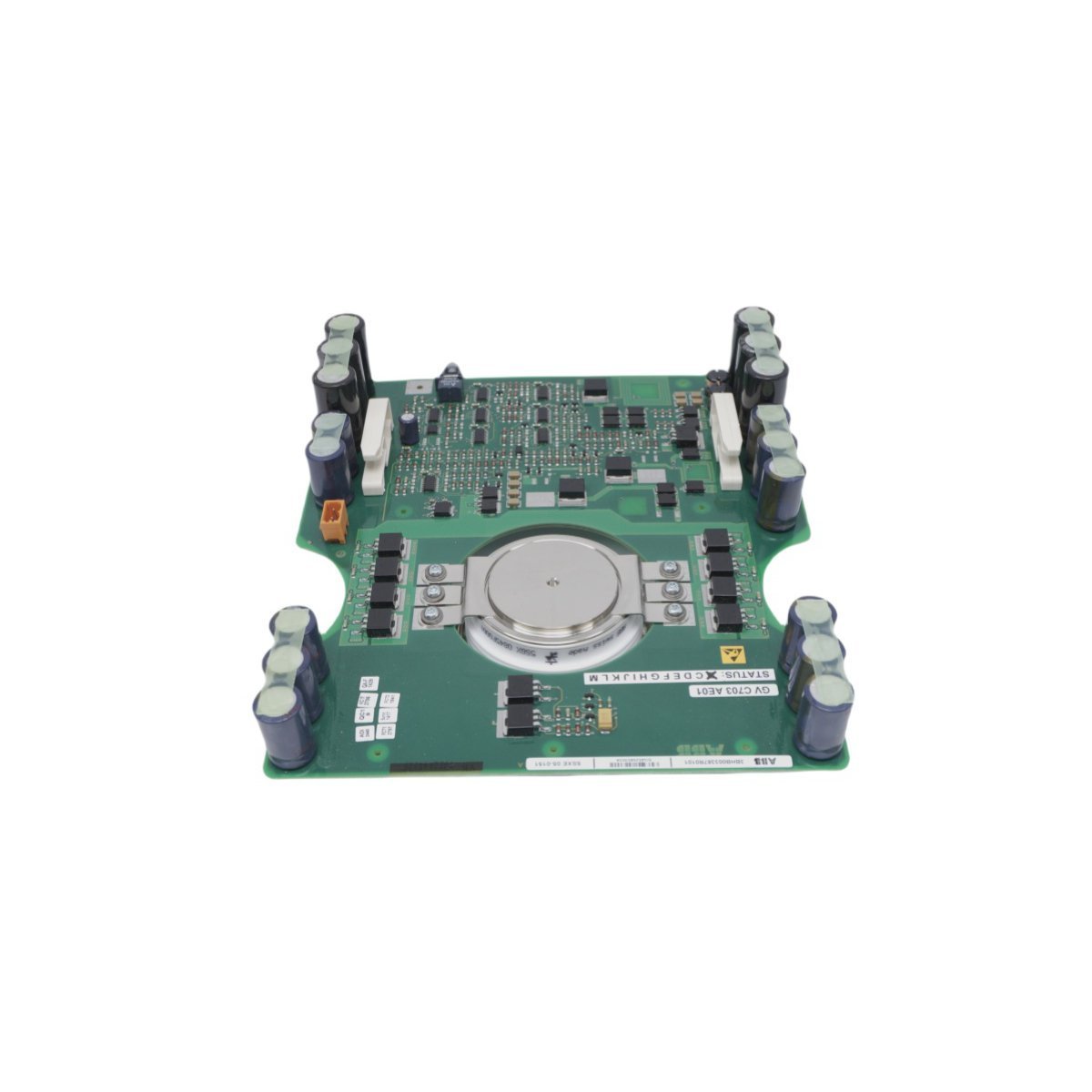

The ABB 5SXE05-0153 (3BHB003386R0101) is a 6.5kV IGCT module with 5,150A RMS capacity. It provides high-speed power switching for Advant OCS and 800xA industrial systems.
The ABB 5SXE05-0153 (Order Number 3BHB003386R0101) is a high-capacity Integrated Gate-Commutated Thyristor (IGCT) module. This component manages high-voltage power conversion within demanding industrial environments. It combines the low conduction losses of a thyristor with the fast switching of a transistor. Furthermore, the module facilitates precise energy control for medium-voltage drives and heavy power infrastructure. This unit serves as a critical bridge between control logic and high-power electrical execution.
This IGCT module supports a 6.5kV AC/DC voltage class for robust electrical handling. It maintains a continuous RMS anode current of 5,150A under standard operating conditions. Additionally, the module survives peak surge currents up to 45kA for short durations. The device achieves rapid turn-off times below 4.5 μs to ensure system efficiency. Its gate drive operates between -18V and +22V with a ±200A capacity. Consequently, the 5SXE05-0153 provides superior stability during extreme electrical stress events.
ABB designed this module to endure harsh industrial climates and mechanical vibrations. The unit operates reliably within a broad temperature range from -40°C to +100°C. With a total weight of 1.58 kg, it allows for manageable installation in compact cabinets. The hardware dimensions measure 29cm x 34.5cm x 6cm for standardized mounting. Moreover, the origin of this high-precision component is Sweden.
| Feature | Specification |
| Manufacturer | ABB |
| Model Number | 5SXE05-0153 |
| Order Number | 3BHB003386R0101 |
| System Compatibility | Advant OCS / 800xA |
| Voltage Class | 6.5 kV |
| RMS Continuous Current | 5,150 A |
| Peak Surge Current | 45 kA (10ms) |
| Weight | 1.58 kg |
The 5SXE05-0153 is essential for high-power applications requiring maximum system uptime. It integrates seamlessly into ABB Advant OCS and 800xA control platforms. Common use cases include large-scale motor drives and renewable energy grid stabilizers. Furthermore, the module functions effectively in marine propulsion and traction power supplies. Its Ethernet-capable routing features support advanced communication within Distributed Control Systems (DCS).
