SKU: 5SHY3545L0009 3BHB013085R0001

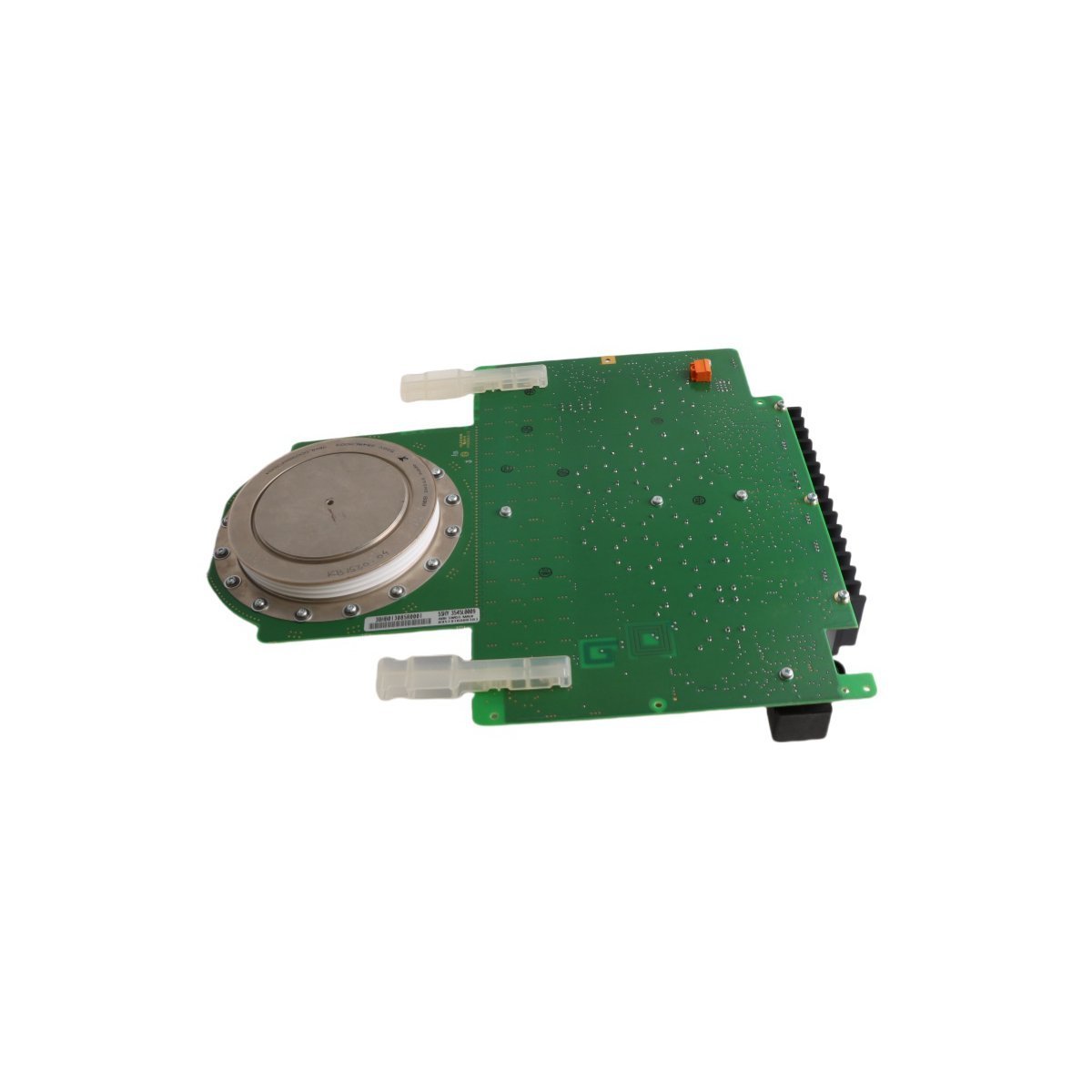

ABB 5SHY3545L0009 3BHB013085R0001 IGCT Module
The ABB 3BHB013085R0001 5SHY3545L0009 is a 4500V IGCT module designed for medium-voltage drives and power conversion. This Swedish-made semiconductor offers 30kA surge protection and rapid switching for Advant OCS/800xA systems.
The ABB 3BHB013085R0001 (5SHY3545L0009) serves as a high-performance power semiconductor unit. This module belongs to the Advant OCS and 800xA control families. It manages heavy electrical loads within medium-voltage power conversion systems. Engineers utilize this IGCT for precise switching in demanding industrial environments.
Technical Specifications
| Feature | Specification |
| Manufacturer | ABB |
| Model Number | 5SHY3545L0009 |
| Part Number | 3BHB013085R0001 |
| Device Type | IGCT Module / Semiconductor |
| Blocking Voltage | 4500V |
| Surge Current | 25kA – 30kA |
| Switching Frequency | Up to 500Hz |
| Turn-on Time | < 5μs |
| Turn-off Time | < 10μs |
| Gate Trigger Voltage | 1.5V – 2.5V |
| Weight | 2.66 kg |
| Dimensions | 35 x 29 x 6 cm |
| Country of Origin | Sweden |
Functional Capabilities
The 5SHY3545L0009 module integrates advanced gate-drive electronics with a robust power thyristor. This design enables high-speed switching with minimal energy loss. The unit handles significant dI/dt stress during dynamic load shifts.
The onboard control interface monitors internal temperature and voltage levels. It detects faults instantly to prevent system-wide damage. This proactive monitoring ensures long-term stability in continuous-duty cycles. The hardware supports Ethernet and serial communication for system integration.
Core Applications
- ACS 6000 Medium Voltage Drives
- HVDC Power Transmission Networks
- Renewable Energy Grid Converters
- Heavy Industrial Traction Systems
- Static Var Compensators (SVC)
- Marine Propulsion Power Units
Tags: ABB Advant OCS/800xA, IGCT Module
You may also like
Sale!
ABB SDCS-PIN-H51 3ADT320700R1501 Power Supply Board
The ABB SDCS-PIN-H51 (3ADT320700R1501) is a high-efficiency 24V DC power supply board for Advant OCS and 800xA systems. It provides stable 60W-120W output with an 85% efficiency rating. This lightweight 0.15kg module ensures reliable power regulation for industrial digital inputs and critical control logic.
Sale!
ABB DO814 3BUR001455R1 Digital Output Module
The ABB DO814 3BUR001455R1 is a 16-channel sinking digital output module for S800 I/O systems. It features 24V DC operation, 0.5A per channel current capacity, and built-in short circuit protection. This module ensures reliable actuator control in Advant OCS and 800xA environments.
Sale!
ABB UDD406A 3BHE041464R0101 Digtal Input Module
The ABB UDD406A 3BHE041464R0101 is a high-performance digital input module for Advant OCS and 800xA systems. It offers robust network interfacing and precise signal acquisition for industrial drive control. This Sweden-made board ensures reliable real-time monitoring and maximum energy efficiency in complex automation environments.
Sale!
ABB 3BHB003386R0101 5SXE05-0153 IGCT Module
The ABB 5SXE05-0153 (3BHB003386R0101) is a 6.5kV IGCT module with 5,150A RMS capacity. It provides high-speed power switching for Advant OCS and 800xA industrial systems.
Sale!
ABB 3BHL000392R0101 5SHX1060H0001/3BHB003230R0101 5SXE05-0152 IGCT Board
The ABB 5SHX1060H0001 (3BHL000392R0101) is a high-power IGCT control module featuring a 500A peak pulse and 2kA/µs switching tolerance. Ideal for DCS and medium-voltage industrial drives.
Sale!
ABB 3BHB013088R0001 5SHY3545L0010 3BHE009681R0101 GVC750 GE101 IGCT Module
The ABB 5SHY3545L0010 (3BHB013088R0001) is a 4500V/3500A Integrated Gate-Commutated Thyristor module. It features an integrated gate driver for high-efficiency switching in HVDC, VFD, and SVC applications. This GVC750 GE101 unit provides 1.5μs switching speeds and 30kA surge protection for medium-voltage industrial systems.
Sale!
ABB 3BHB030310R0001 5SHY4045L0006 IGCT Module
The ABB 3BHB030310R0001 5SHY4045L0006 is a 4500V Integrated Gate-Commutated Thyristor (IGCT) module. It features 30kA surge current capacity and rapid <10µs switching. This brand-new Swedish module ensures high-efficiency power conversion for ACS 2000 drives and medium-voltage grid systems.
Sale!
ABB 3BHL000986P3016 5STP1752H0002 IGCT Module
The ABB 3BHL000986P3016 5STP1752H0002 is a 1700V, 2000A IGCT module designed for HVDC and industrial drives. It features 20kA surge tolerance and superior thermal management. This brand-new Swedish power semiconductor ensures high-efficiency switching for Advant OCS and 800xA systems.
Sale!
ABB SDCS-POW-H01 3ADT318700R1501 Power Supply Board
The ABB SDCS-POW-H01 3ADT318700R1501 is a versatile 115/230V AC or 24V DC power supply board for DCS800 drives. It provides 10A continuous current and advanced surge protection. This brand-new Swedish module ensures stable power for excitation and control logic in mining and metal processing.
Sale!

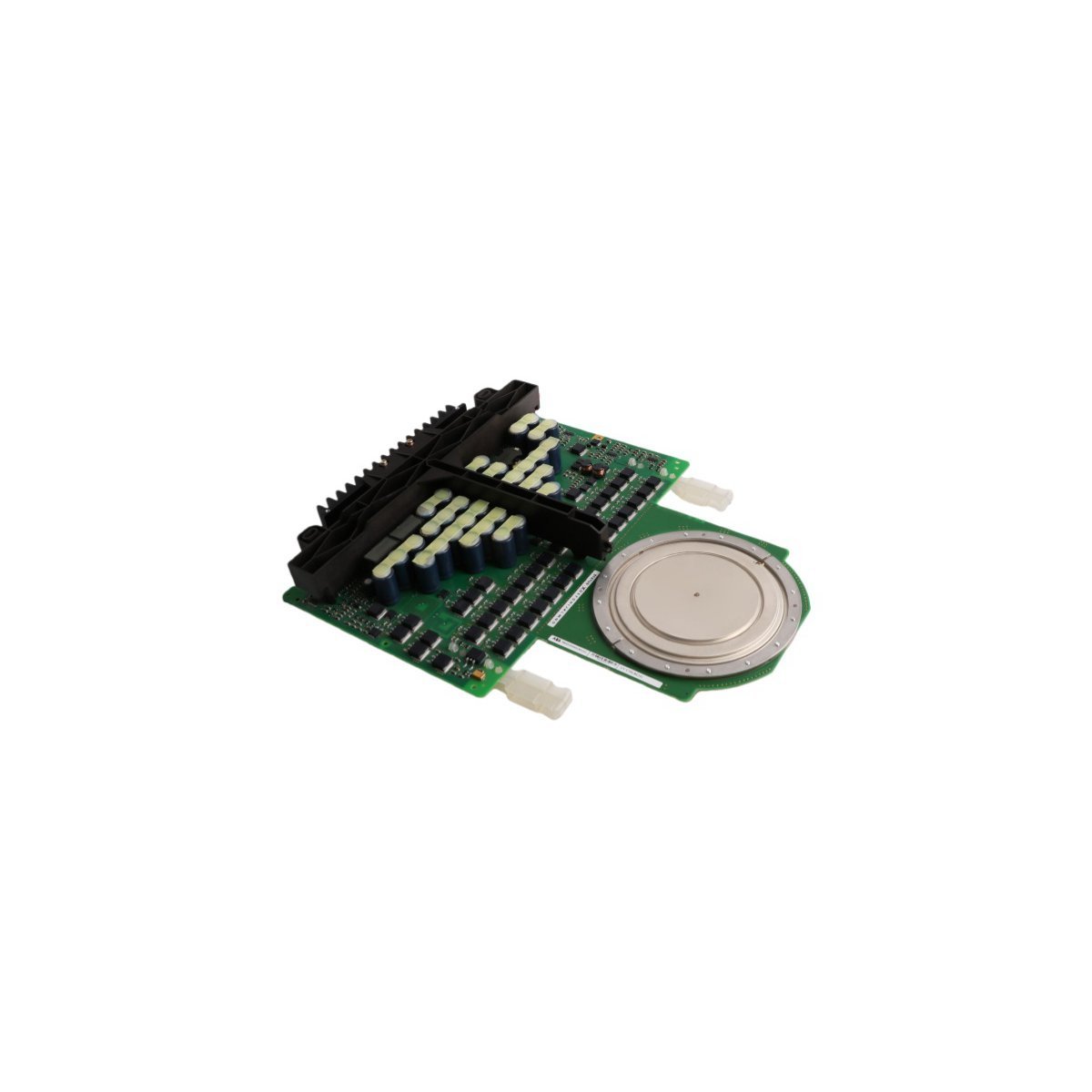

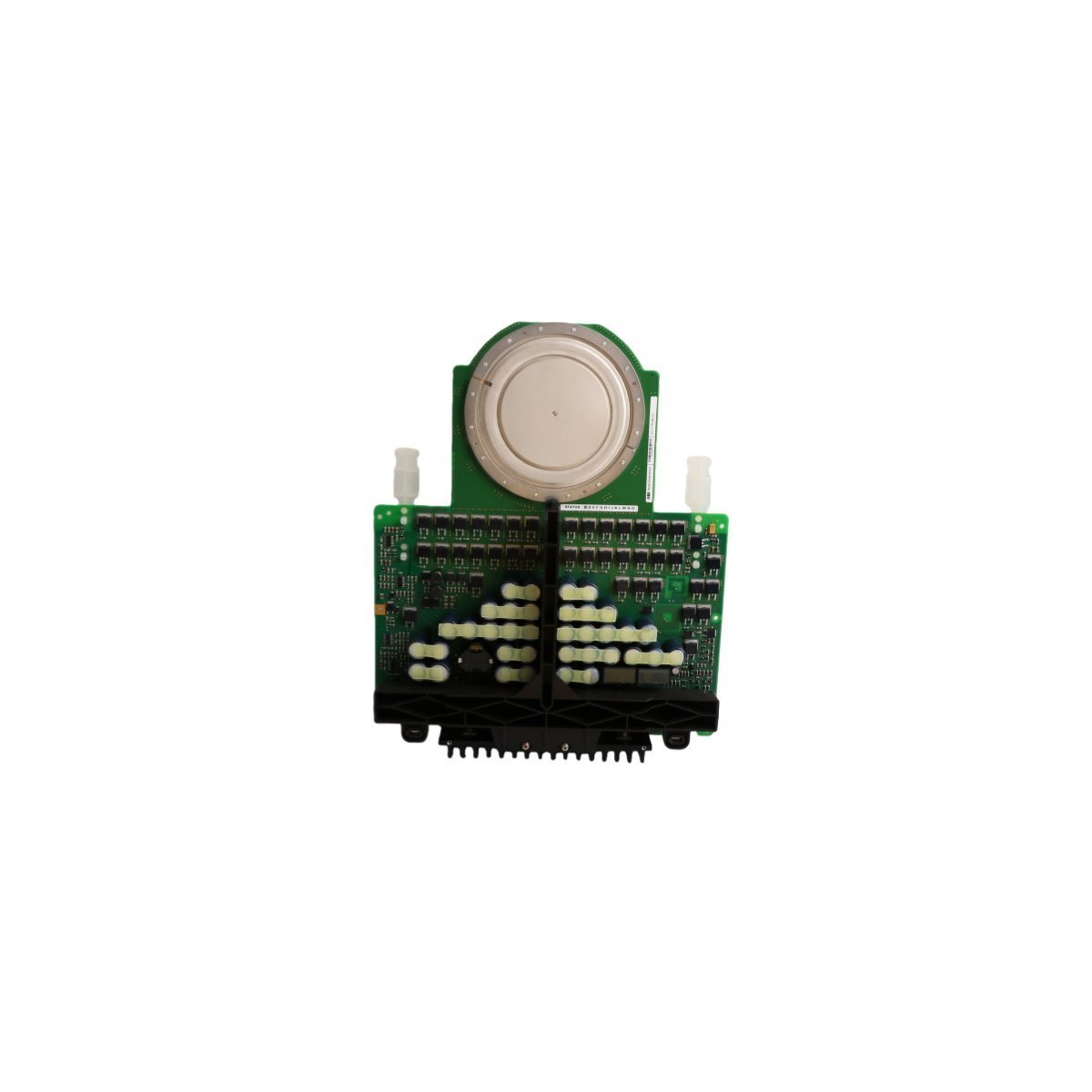

ABB 3BHE009681R0101 GVC750BE101 3BHB013088R0001 5SHY3545L0010 IGCT Module
