The ABB 5SHY3545L0016 (3BHB020720R0002) is a 4500V, 1200A IGCT module designed for medium-voltage drives and HVDC systems. It features an integrated gate driver and 10kV isolation.

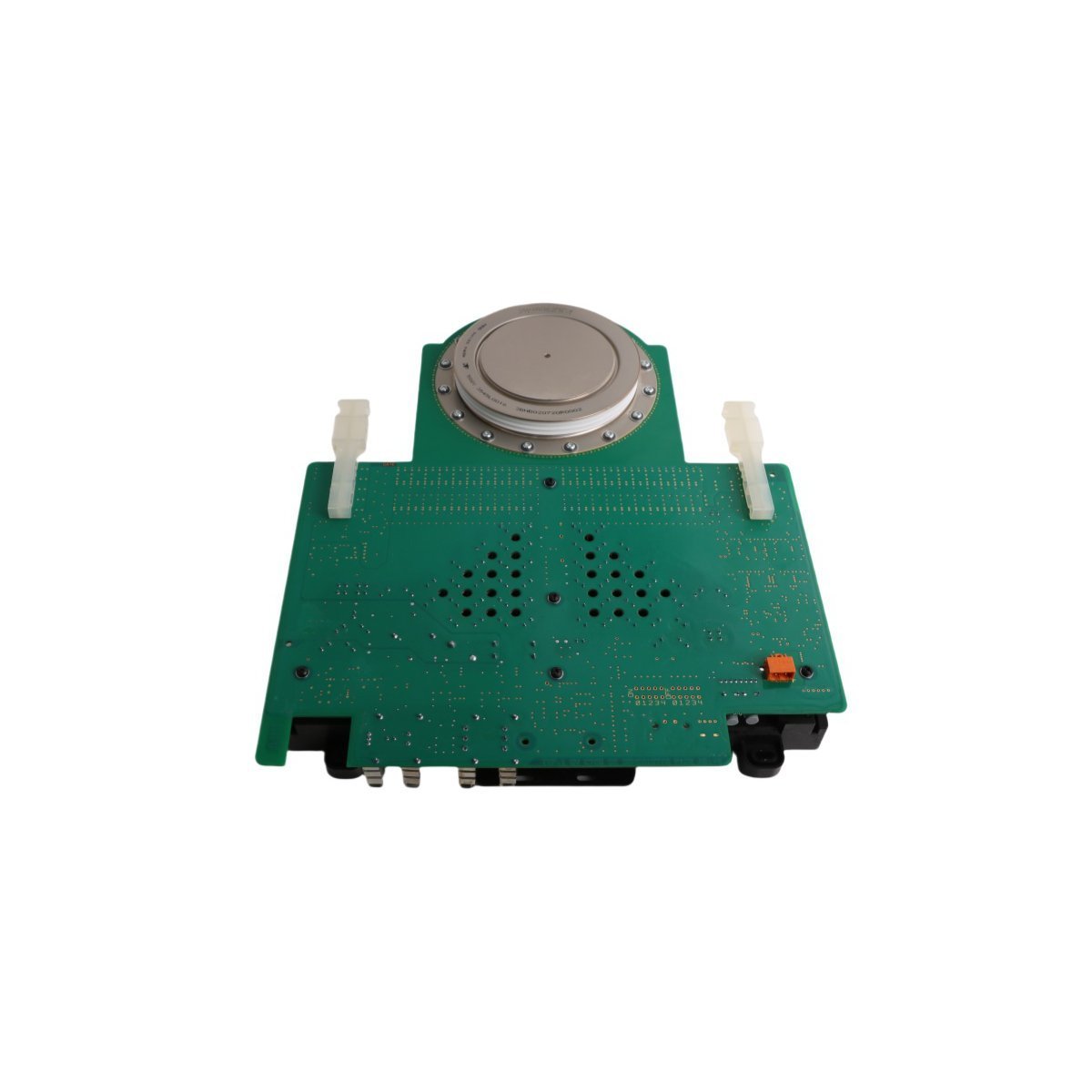

The ABB 5SHY3545L0016, identified by order number 3BHB020720R0002, is a high-performance Integrated Gate-Commutated Thyristor (IGCT). This semiconductor module combines the high current capacity of a thyristor with the fast switching of a transistor. It manages power conversion in medium-voltage applications with extreme precision. Furthermore, the integrated gate driver minimizes inductance and simplifies circuit architecture. This design ensures superior reliability for mission-critical industrial infrastructure.
This module operates effectively at a 4500V rating and handles currents up to 1200A. It features a robust press-pack housing to ensure optimal thermal management. The unit achieves a minimum dv/dt rating of 1000V/μs during rapid voltage transitions. Additionally, the module provides 10kV RMS isolation for enhanced operator safety. Engineers must apply a mounting force between 35kN and 45kN for proper installation. These parameters guarantee stable operation in high-frequency switching environments.
The 5SHY3545L0016 integrates seamlessly with ABB Advant OCS and 800xA control platforms. It serves as a core component in ACS 6000 drives and HVDC transmission systems. Moreover, the module excels in wind power inverters and smart grid stabilization projects. Its rugged construction supports 24/7 operation in diverse climatic zones. Consequently, it reduces energy losses in large-scale motor drives and traction systems.
| Feature | Details |
| Manufacturer | ABB |
| Model Number | 5SHY3545L0016 |
| Order Number | 3BHB020720R0002 |
| Product Type | IGCT Semiconductor Module |
| Voltage Rating | 4500V |
| Current Rating | 1200A |
| Isolation Voltage | 10kV RMS |
| Weight | 2.64 kg |
| Dimensions | 35cm x 29cm x 6cm |
| Origin | Sweden |
This IGCT module outperforms traditional GTOs by offering significantly lower switching losses. The integrated reverse-parallel diode simplifies the overall system design. Furthermore, the module maintains consistent timing across the full industrial temperature range. It helps plant operators improve system availability and reduce maintenance intervals. Choosing this genuine ABB component ensures long-term compatibility with existing power conversion hardware.
