ABB 5SHX14H4502 3BHB003230R0101 GVC704 AE01 IGCT Module

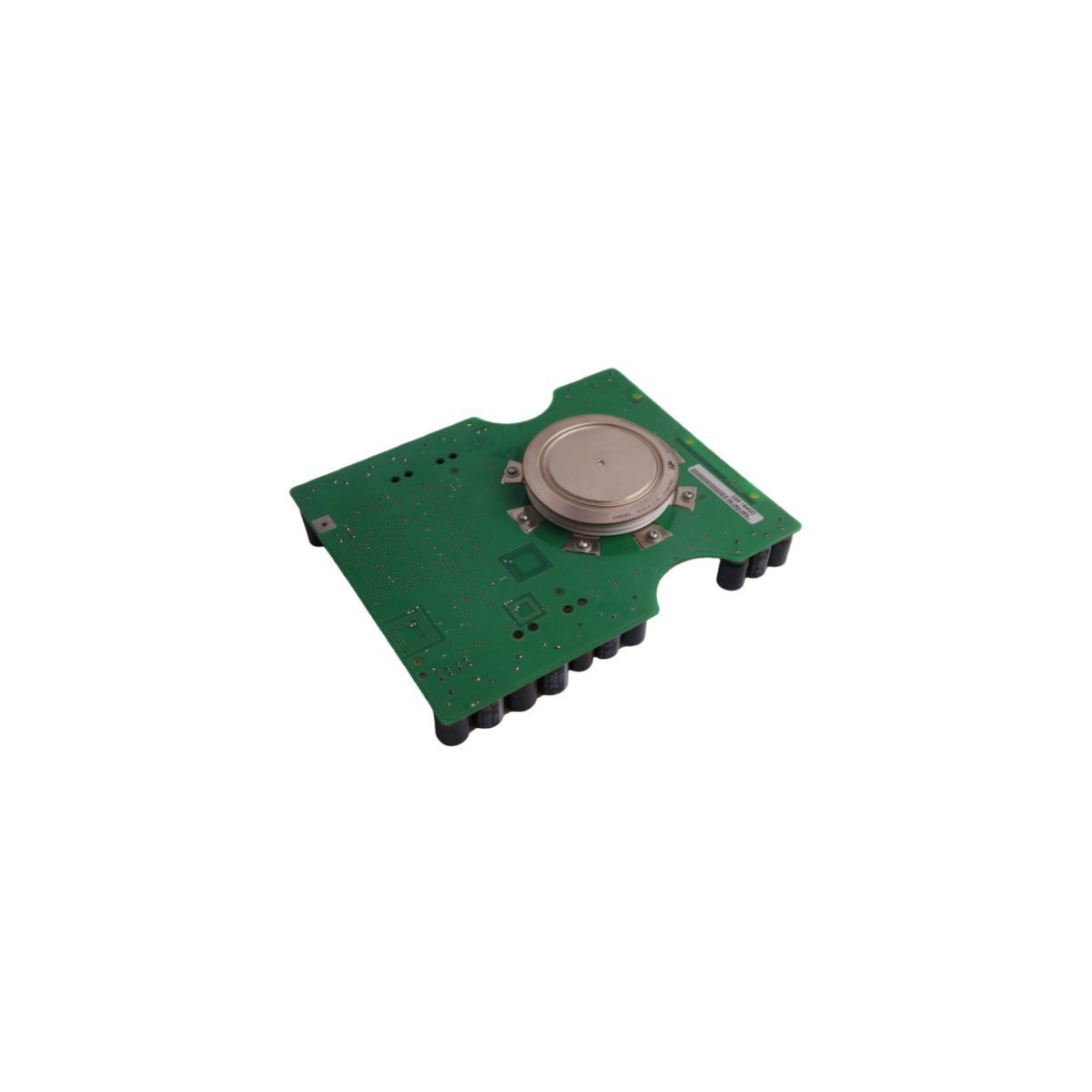

The ABB 5SHX14H4502 3BHB003230R0101 acts as a central Integrated Gate-Commutated Thyristor (IGCT) control component. This GVC704 AE01 module manages high-power switching within medium-voltage inverter systems. It provides the necessary electrical switching speed for complex industrial drive applications. By regulating current flow with extreme precision, it ensures the stability of large-scale motor control units. This power board serves as an essential link between control logic and high-voltage power electronics.

Technical Specifications and Hardware Details

Advanced Switching and Communication Features

This IGCT module facilitates rapid power conversion for demanding automation environments. The internal circuitry utilizes a low-inductance design to reduce switching losses. Consequently, the inverter achieves higher efficiency during continuous operation. The module also supports modern communication protocols like Ethernet/IP for real-time diagnostics. Engineers can monitor the health of the power stack remotely through these interfaces. This connectivity helps prevent catastrophic hardware failures in critical drive systems.

Durability and Maintenance Benefits

• Extreme Environment Reliability

  The rugged housing protects sensitive electronics from industrial contaminants. It maintains operational integrity in temperatures as low as -40°C.

• High-Speed Signal Processing

  Internal logic gates execute switching commands with nanosecond precision. This speed is vital for managing high-torque motor applications safely.

• Optimized Power Distribution

  The layout minimizes thermal hotspots on the circuit board. This thermal management extends the overall lifespan of the power assembly.

• Critical Spare Part Availability

  Maintaining a stock of GVC704 AE01 boards prevents long facility shutdowns. This module remains a primary replacement part for legacy ABB drive systems.

Primary Industrial Applications

The 5SHX14H4502 IGCT module excels in heavy-duty sectors like mining and marine propulsion. It drives large compressors and pumps in oil and gas refineries. Furthermore, the module handles the intense loads required for steel mill rolling operations. Its ability to switch high voltages reliably makes it a cornerstone of modern power infrastructure. Facilities worldwide depend on this Sweden-made component for consistent process uptime.
