ABB 3BHL000392R0101 5SHX1060H0001/3BHB003230R0101 5SXE05-0152 IGCT Board

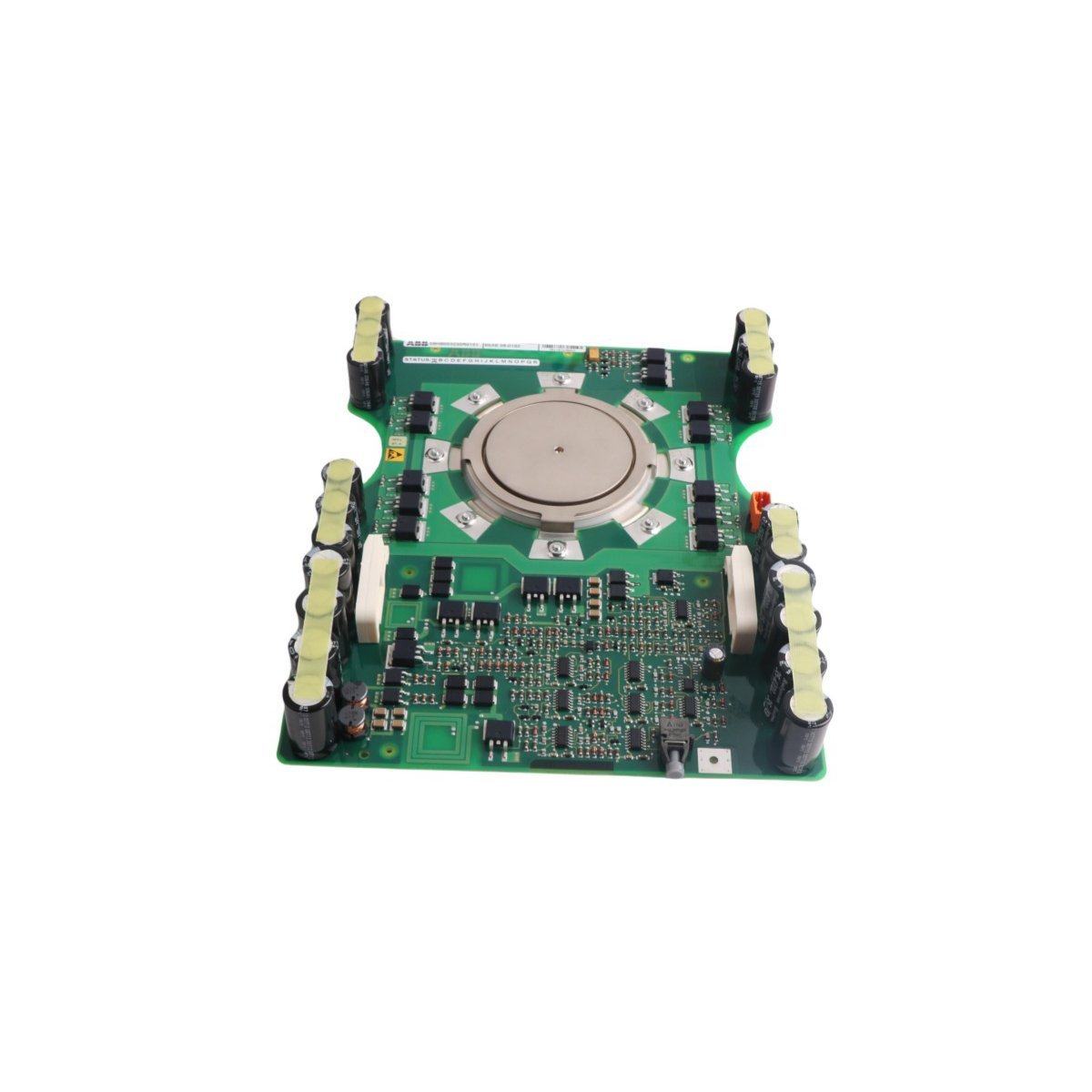

The ABB 5SHX1060H0001 (Order No. 3BHL000392R0101) serves as a specialized Integrated Gate-Commutated Thyristor (IGCT) driver board. This unit manages the high-speed switching of power semiconductors within Distributed Control Systems (DCS). It effectively bridges the gap between low-power control logic and high-power electrical execution. By providing precise gate signals, it ensures stable performance in heavy-duty converters and industrial drive systems.

Advanced Switching Performance

This module delivers a peak turn-on pulse of 500A at +20V for rapid semiconductor activation. It maintains an impressive di/dt tolerance exceeding 2kA/µs during the turn-off phase. Consequently, the board minimizes switching losses to below 3mJ per cycle. Tight jitter control of ±30ns allows for perfect synchronization across complex multi-phase networks. These attributes contribute to higher energy efficiency and reduced thermal stress on the power components.

Robust Design and Specifications

ABB engineers designed this module to withstand rigorous industrial conditions. It operates reliably across an expansive temperature range from -40°C to +85°C. The module requires a standard +24V DC logic input for its internal operations. It features high-capacity stored charge extraction of at least 100µC. With a weight of 1.22 kg and compact dimensions, it fits easily into standard industrial enclosures.

System Integration and Safety

The unit acts as a central decision-making hub for high-level motion planning and automation. It integrates seamlessly with robot computers for comprehensive servo and I/O management. Redundant safety features include dual Run Chain protection and constant motor temperature monitoring. Furthermore, dual 3.6V lithium batteries provide critical power backup. This redundancy prevents data loss and ensures continuous operation during primary power fluctuations.

Industrial Applications

This IGCT board is essential for high-power applications requiring extreme reliability. Common use cases include medium-voltage drives, marine propulsion systems, and wind turbine converters. Its Ethernet router capabilities allow it to function as a communication node within large-scale DCS architectures. The module excels in time-critical processes where precise switching is mandatory for system safety.
