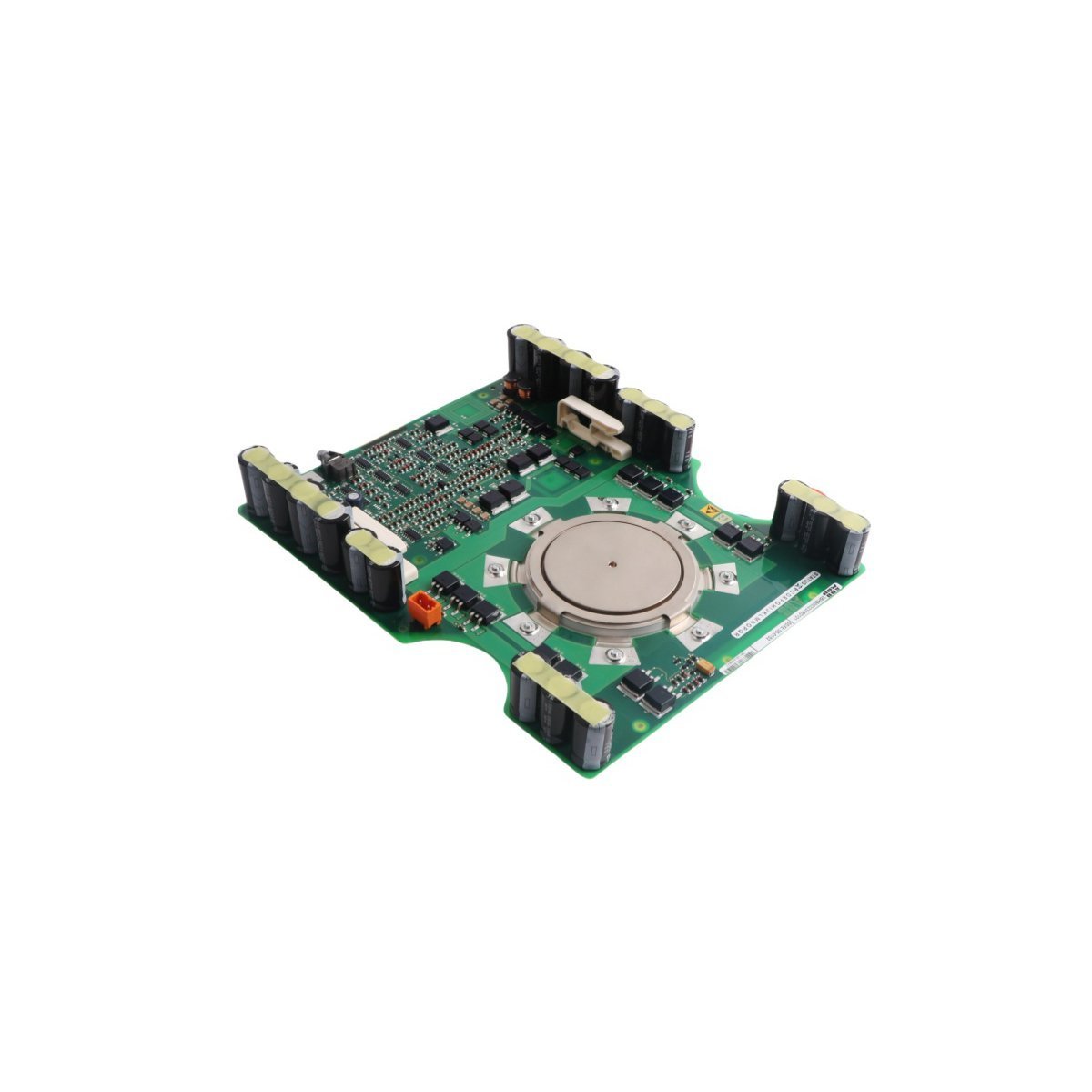

The ABB 5SHX1060H0001 (3BHL000392R0101) is a high-precision IGCT gate driver board designed for medium-voltage power electronics. It features a 500A peak switching capacity and dual battery backup for reliable DCS integration.
The ABB 5SHX1060H0001, identified by order number 3BHL000392R0101, serves as a high-performance gate driver board for IGCT power semiconductors. This module manages the critical switching transitions required for medium-voltage power conversion. It converts low-level optical or electrical control signals into the high-current pulses necessary to trigger the semiconductor gate. The unit provides precise timing control and robust protection for high-power industrial drives and Distributed Control Systems (DCS).
This IGCT board utilizes an advanced gate-drive circuit to achieve rapid state transitions. It delivers a peak turn-on pulse of 500A at +20V to ensure reliable conduction. During the turn-off phase, the board manages a steep current gradient exceeding 2kA/µs. This capability minimizes switching losses and enhances overall thermal efficiency. The integrated logic maintains a jitter tolerance within ±30ns to support synchronized multi-phase operations.
The module includes dual 3.6V lithium battery backups to preserve critical volatile memory and system states. Built-in safety protocols monitor motor temperatures and maintain dual “Run Chain” protection loops. These hardware-level interlocks prevent equipment damage during fault conditions. The rugged design meets stringent industrial standards for electromagnetic compatibility (EMC) in harsh environments.
Engineers typically integrate the 5SHX1060H0001 into medium-voltage AC drives and flexible AC transmission systems (FACTS). It plays a vital role in heavy industries like metal processing, marine propulsion, and renewable energy grid stabilization. The board functions effectively as a communication bridge via Ethernet router services within a DCS framework.
