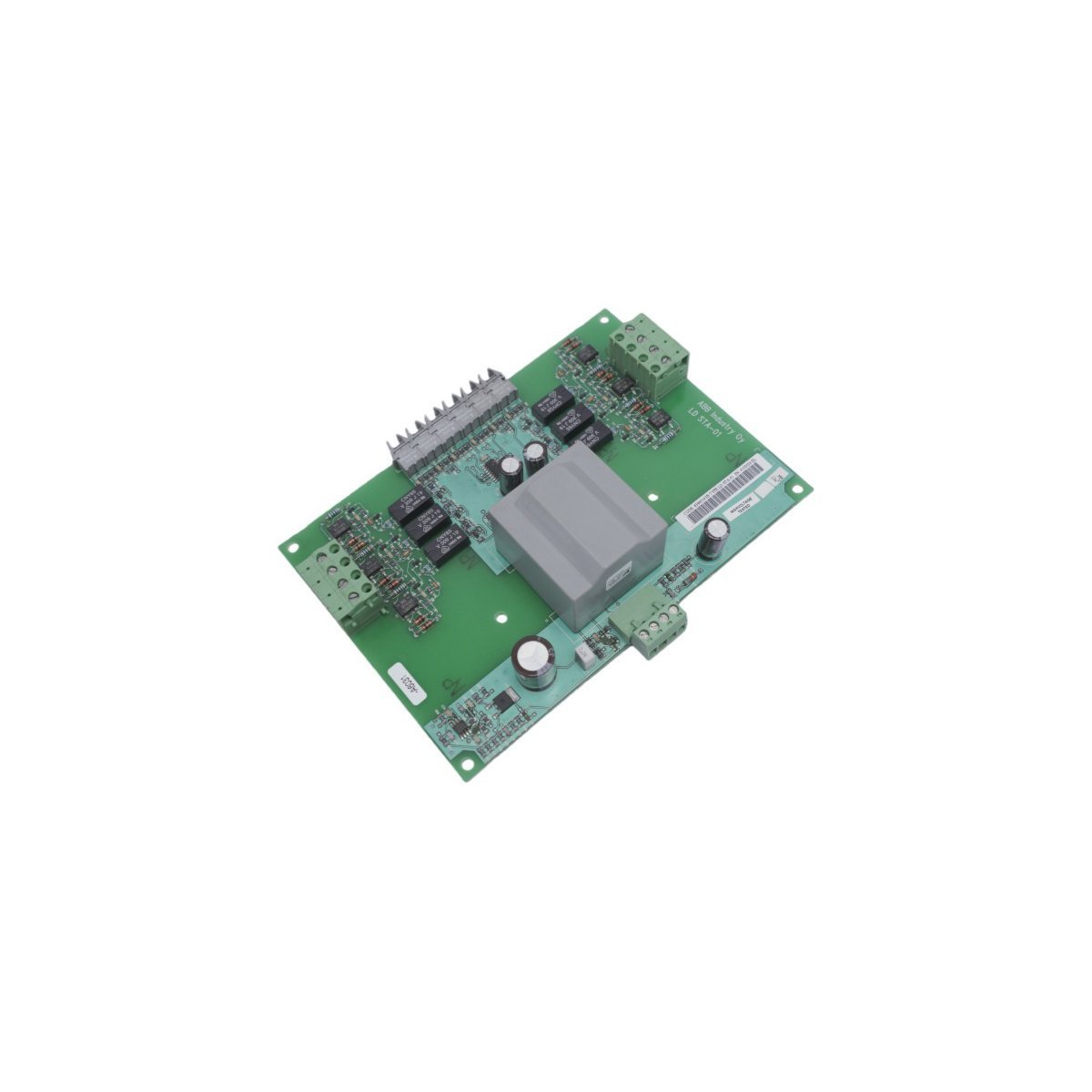

ABB LDSTA-01 63940143B Analog Input Module

The ABB LDSTA-01 63940143B serves as a specialized status monitoring interface for the Advant OCS/800xA control series. This module provides essential operational data by converting physical field signals into actionable system information. Engineers primarily utilize this board for thyristor control and power management configurations. Because it ensures high process visibility, it directly enhances the safety of automated industrial environments. The unit acts as a critical link between heavy power electronics and the central processing controller.

Signal Processing and Electrical Protection

This analog input module processes 24V DC signals with exceptional precision and speed. It supports both sinking and sourcing configurations to accommodate various wiring standards. Furthermore, the internal circuitry features electrical isolation protection ranging from 500V to 1500V AC. This robust barrier prevents transient voltage spikes from damaging sensitive control electronics. The module operates with high energy efficiency, consuming only 3 to 8 watts during active monitoring. Consequently, it maintains a low thermal footprint within dense equipment racks.

Mechanical Design and Installation

The LDSTA-01 features a streamlined physical profile for space-constrained industrial cabinets. While the module remains lightweight at 1.22 kg, its durable construction resists mechanical stress. Its compact dimensions allow for effortless integration into existing Advant OCS hardware layouts. Additionally, the Swedish-engineered board supports reliable operation in high-humidity environments up to 95%. Technicians can install the unit quickly without extensive specialized tooling. This design philosophy reduces the complexity of system maintenance and hardware upgrades.

Industrial Applications and Storage

The 63940143B excels in sectors requiring constant monitoring of high-power electrical components. It provides reliable status feedback for drive systems and large-scale power distribution units. When not in active service, the module withstands storage temperatures between -40°C and +85°C. This resilience ensures the hardware remains ready for deployment in any climate. Therefore, it serves as a dependable spare part for aging infrastructure and new installations alike. Its proven track record across global industries confirms its long-term operational stability.
